Header installation with hinges or center pivots, A. butt hinge, continuous hinge, and center pivots, 1 3/4" or 2" header/t’bar installation steps – EFCO Dorma RTS 88 User Manual

Page 6: Con’t)

PAGE 4

BAB 7/01

NOTE: 2" HEADER/T’BAR PREPARATION (SHOWN)

1 3/4" HEADER/T’BAR PREPARATION SIMILAR
FOR SINGLE DOORS AT LOCK JAMB USE K120 SHEAR BLOCK

A. BUTT HINGE, CONTINUOUS HINGE, AND CENTER PIVOTS

(CON’T)

1. 1 3/4" OR 2" HEADER/T’BAR INSTALLATION STEPS

(CON’T)

SECTION II HEADER/TRANSOM BAR

INSTALLATION

(CON’T)

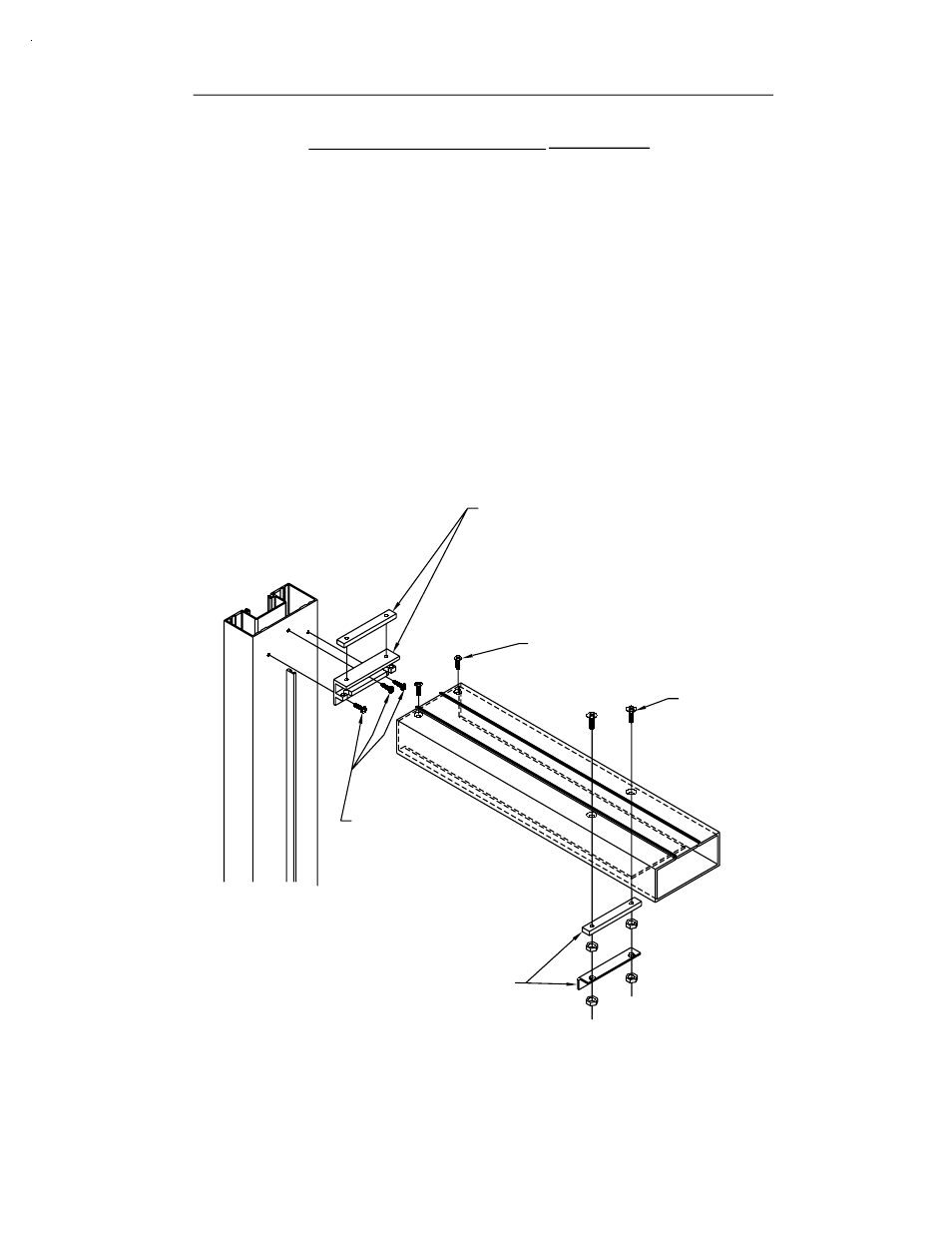

STEP E.

#8-32 X 5/8"

PL-PH-SMS (C)

1/4-20 X 1"
PL-FH-MS {M119}

#10-32x5/8" PL-FH-MS 18-8 {M130}

STEP B. (1 3/4" HEADER/T’BAR)

ANGLE BRACKET (C)

STEP D. (2" HEADER/T’BAR)

ANGLE BRACKET (C) AND SPACER BLOCK {F045}

STEP A. (1 3/4" HEADER/T’BAR)

"F" CLIP (C)

STEP C. (2" HEADER/T’BAR)

"F" CLIP (C) AND SPACER BLOCK {F045}
