PAGE 8
BAB 7/01

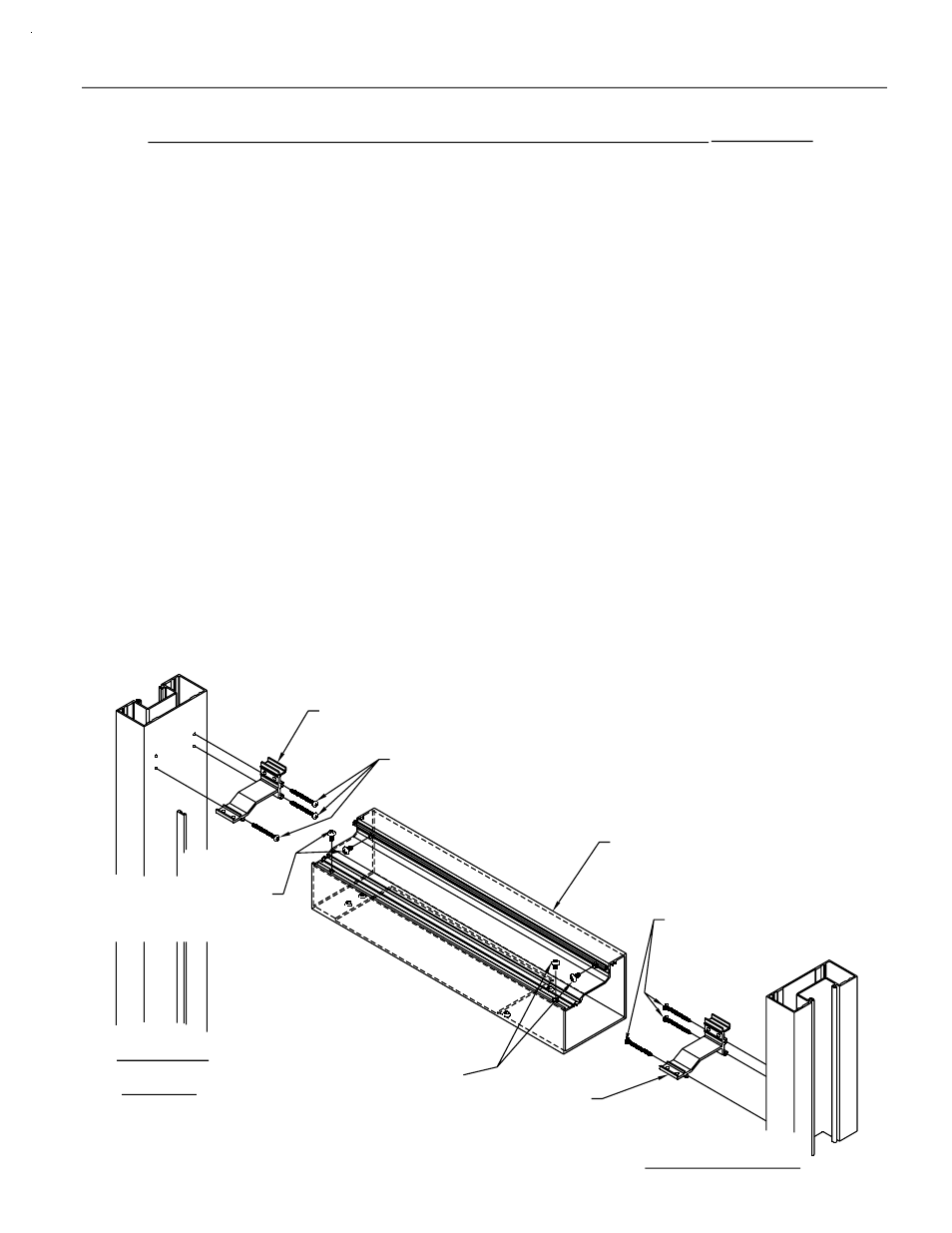

STEP F.
{ STB9} #12-11 X 1/2"
PL-RH SMS 18-8 A
(SUPPLIED W/ K173)
{8428} (4" DOOR HEADER) SHOWN
{8429} (4 1/2" DOOR HEADER)
HINGE
STILE
STEP E.
{ STB9} #12-11 X 1/2"
PL-RH SMS 18-8 A
(SUPPLIED W/ K173)
{S100} #8-15 X 1 3/4" PL-PH-SMS ZC A
(SUPPLIED W/ K173)
STEP A.
{ K173}
STEP B.
{ K173}
LOCK STILE
{S100} #8-15 X 1 3/4"
PL-PH-SMS ZC A
(SUPPLIED W/ K173)
A.
ATTACH THE SHEAR BLOCK (K173) TO THE HINGE/PIVOT JAMB(S) WITH
THREE #8-15X1 3/4" PL-PH-SMS {S100}.
B.
REPEAT STEP A ON THE LOCK JAMB(S).
C.
COAT BOTH ENDS OF THE HEADER/TRANSOM BAR WITH BUTYL TYPE
SEALANT AND INSTALL IT OVER THE SHEAR BLOCKS.
D.
FASTEN THE HEADER/TRANSOM BAR AT THE HINGE/PIVOT JAMB(S) TO THE
SHEAR BLOCK WITH TWO #12-11 X 1/2" PL-RH-SMS 18-8 A {STB9}.
E.
REPEAT STEP D. ON THE LOCK JAMB(S).
SECTION II HEADER/TRANSOM BAR AND CLOSER
PREPARATION AND INSTALLATION
(CON’T)
B. OFFSET PIVOTS
(CON’T)
2. 4" OR 4 1/2" HEADER/T’BAR INSTALLATION STEPS
