Page 22: Con’t)

background image

BUSHING

SHIM BY EFCO

-IF REQUIRED-

TOP RAIL

SLIDE TRACK

(BY DORMA)

CUSHION

9914-DOOR STOP

SLIDE TRACK

(BY DORMA)

(BY DORMA)

(BY DORMA)

SLIDE BLOCK

K435

FU03 - RH BRZ
FU05 - LH BRZ

FU02 - RH CLR
FU04 - LH CLR

FT26 - LH MILL

FT20 - RH MILL

CLOSER

(BY DORMA)

FT16

FO45

(402 ONLY)

(BY DORMA)

SLIDE ARM

{K120 - CLR & BRZ}

SHEAR BLOCK

HQ42

PAGE 20

BAH 8-9-04

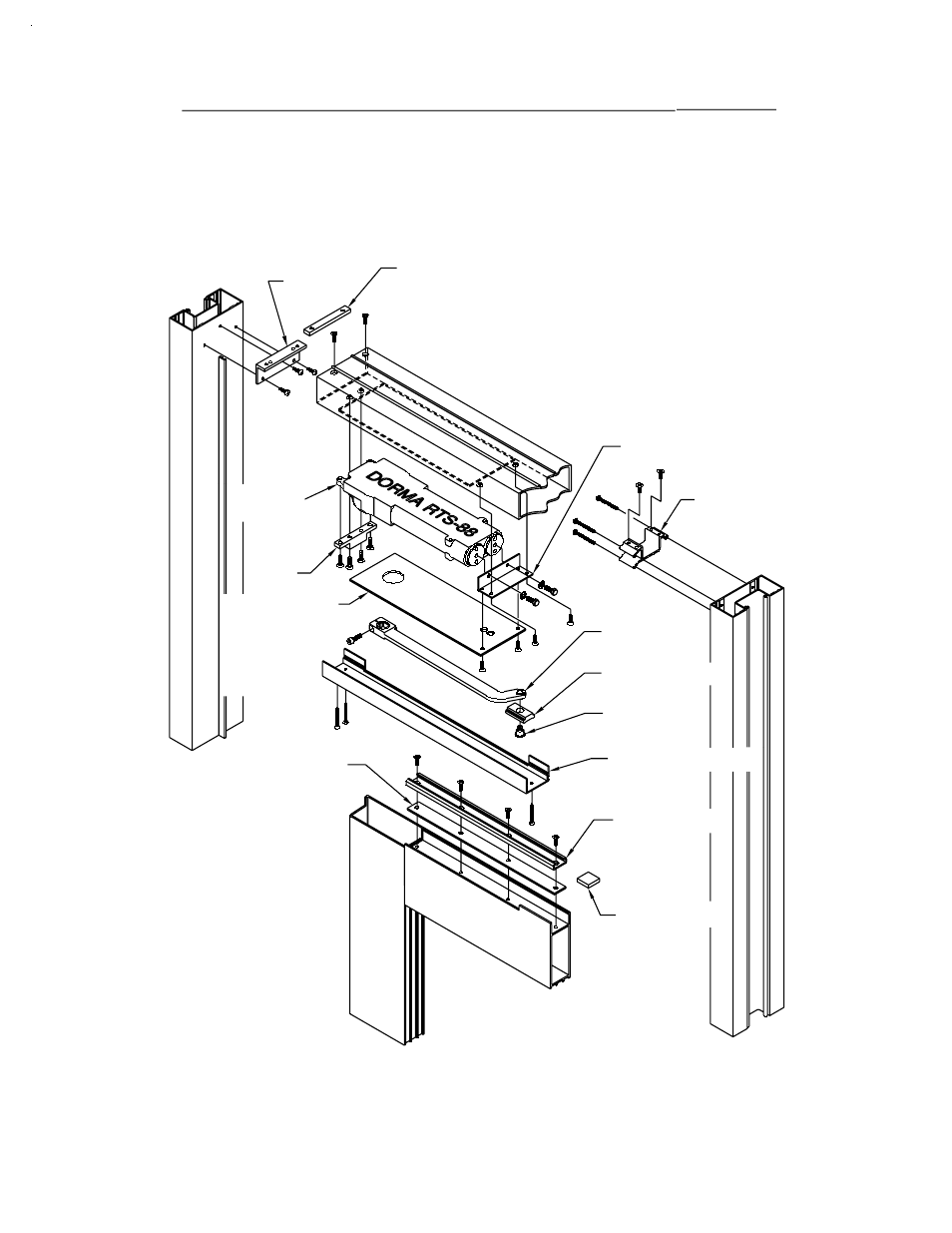

C. OFFSET PIVOTS

SECTION IV EXPLODED VIEWS

(CON’T)

COVER PLATE
