SECTION I PARTS IDENTIFICATION

(CON’T)

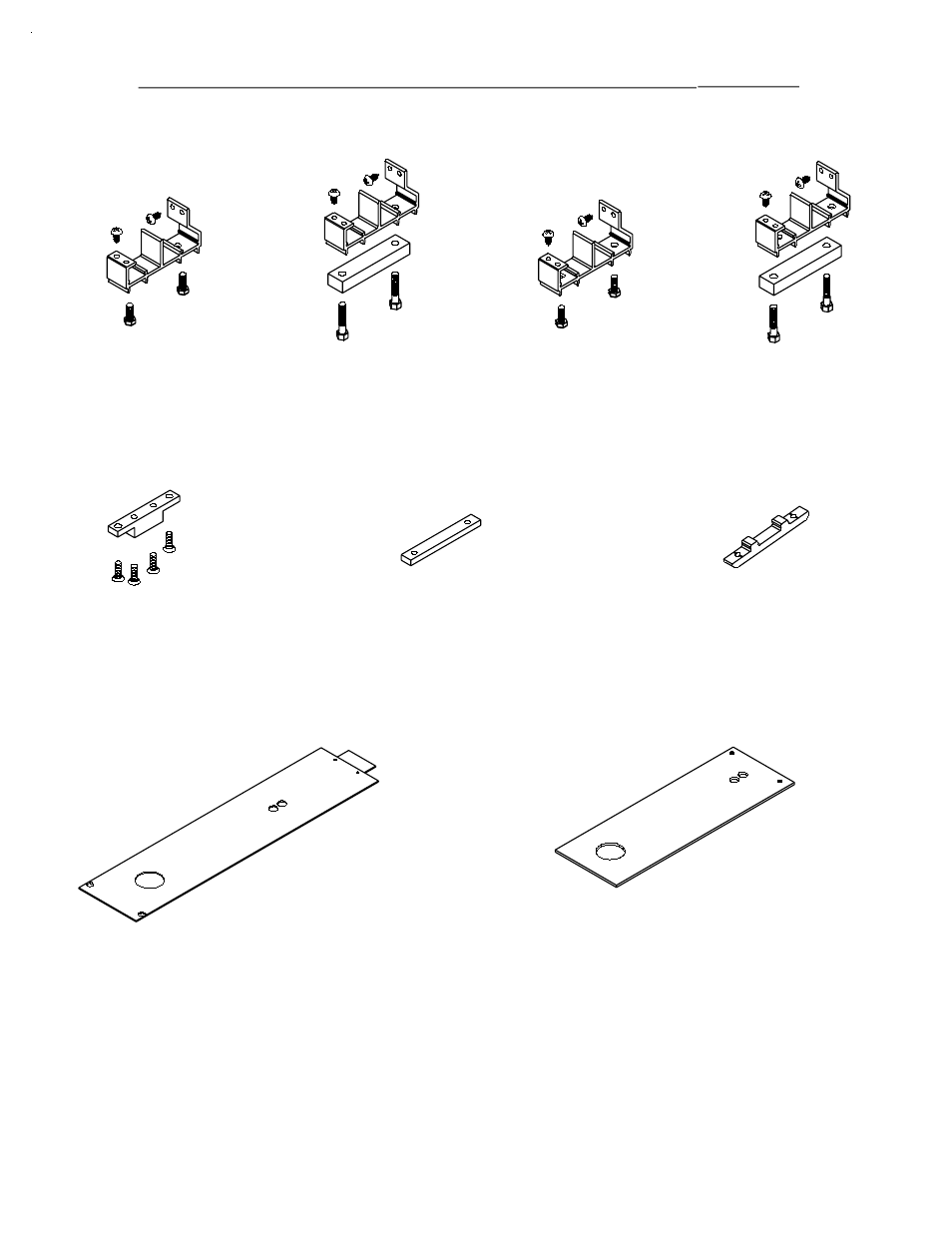

COVER PLATE w/ OFFSET PIVOTS

{FT20} RIGHT HAND MILL

{FT26} LEFT HAND MILL

{FU02} RIGHT HAND CLR

{FU04} LEFT HAND CLR

{FU03} RIGHT HAND BRZ

{FU05} LEFT HAND BRZ

1/2" SPACER BLOCK for S945

SYSTEM

- MUST SPECIFY NOT SUPPLIED -

{FT71}

1/4" SPACER BLOCK for 2"

TRANSOM BAR @ BUTT

HINGES or GEARED HINGES

2 REQUIRED

{F045}

MOUNT w/ SPACER &

SCREWS for 4 1/2"

HEADER @ CENTER

PIVOTS

{K928}

MOUNT w/ SCREWS

for 4" HEADER @

CENTER PIVOTS

{K498}

MOUNT w/ SPACER &

SCREWS for 4 1/2"

HEADER @ BUTT or

GEARED HINGES

{K929}

MOUNT w/ SCREWS

for 4" HEADER @ BUTT

or GEARED HINGES

{K497}

MOUNTING BLOCK

w/ SCREWS

for OFFSET PIVOTS

{K435}

COVER PLATE w/ BUTT HINGES, GEARED

HINGES, or CENTER PIVOTS

{K492} PKG. MILL

{K495} PKG. CLR

{K496} PKG. BRZ
