PAGE 17
BAB 7/01
F.

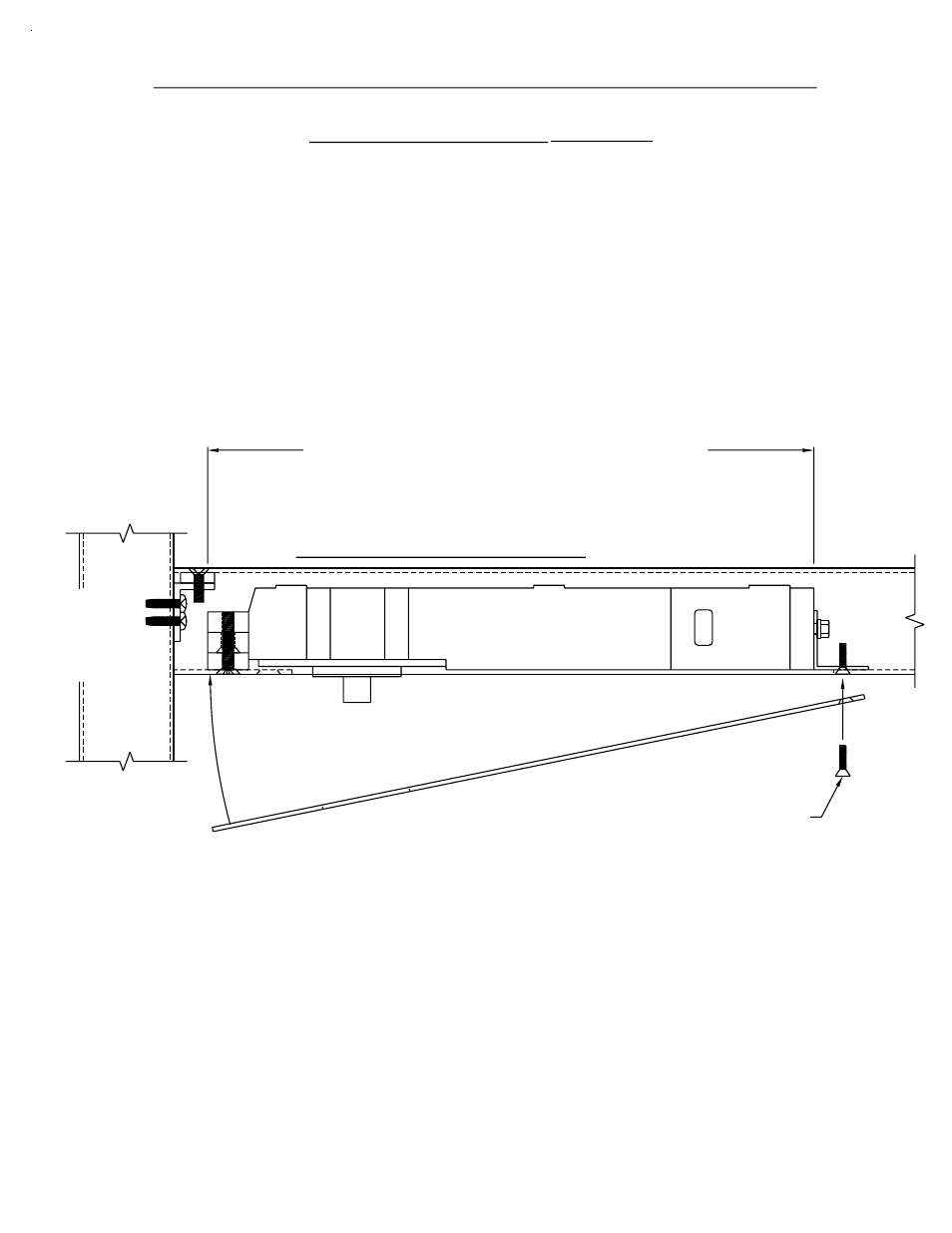

LOCATE THE C.O.C. COVER PLATE INTO THE HEADER/T’BAR CUTOUT AND
FASTEN THE COVER PLATE IN PLACE WITH THE SUPPLIED FASTENERS AT THE
ANGLE CLIP END.
NOTE: THE DOOR STOP/SLIDE ARM COVER WILL RETAIN THE SPINDLE END OF
THE COVER, WHEN IT IS ATTACHED.
G.
ATTACH THE DOOR STOP/SLIDE ARM COVER IN THE CORRECT LOCATION
TO LINE UP WITH THE DOOR STOPS AT THE JAMBS.
#10-32X5/8"
PL-FH-MS 18-8
{M130}
COVER PLATE
{ FT20 - RH - MILL} {FT26 - LH - MILL}
{FU02 - RH- CLR} {FU04 - LH-CLR}
{FU03 - RH - BRZ} {FU05 - LH - BRZ}
2" HEADER/TRANSOM BAR (SHOWN)
DORMA RTS 88
OVERHEAD CLOSER
HINGE/
PIVOT
JAMB
E.
TIGHTEN THE FLAT HEAD SCREWS AND RECHECK TO MAKE SURE THAT ALL
SCREWS AND NUTS ARE TIGHT.
SECTION III CLOSER PREPARATION AND
INSTALLATION
(CON’T)
B. OFFSET PIVOTS
(CON’T)
1. CLOSER PREPARATION AND INSTALLATION STEPS
(CON’T)
CAUTION!
DRILLING IN THIS AREA MAY DAMAGE THE CLOSER, THE
HEADER/T’BAR AND/OR C.O.C. THE COVER PLATE SHOULD
BE FULLY PREPPED FOR ANY ADDITIONAL HARDWARE
(SLIDE ARM COVER, HOLD-OPEN ARM, ETC.) BEFORE
INSTALLING THE CLOSER UNIT.
