CLOSER

SLIDE ARM

(BY DORMA)

SLIDE BLOCK

(BY DORMA)

BUSHING

(BY DORMA)

{9914}

SLIDE TRACK

(BY DORMA)

DOOR STOP

SHIM BY EFCO

DOOR STILE

-IF REQUIRED-

TOP RAIL

{K496} PKG. BRZ

{K495} PKG. CLR

COVER PLATE

{K492} PKG. MILL

at SINGLE DOOR

SHEAR BLOCK

(402 ONLY)

ANGLE BRACKET

(BY DORMA)

FO45

{K120 - CLR & BRZ}

F CLIP

(BY DORMA)

FO45

(402 ONLY)

PAGE 18

BAH 8-9-04

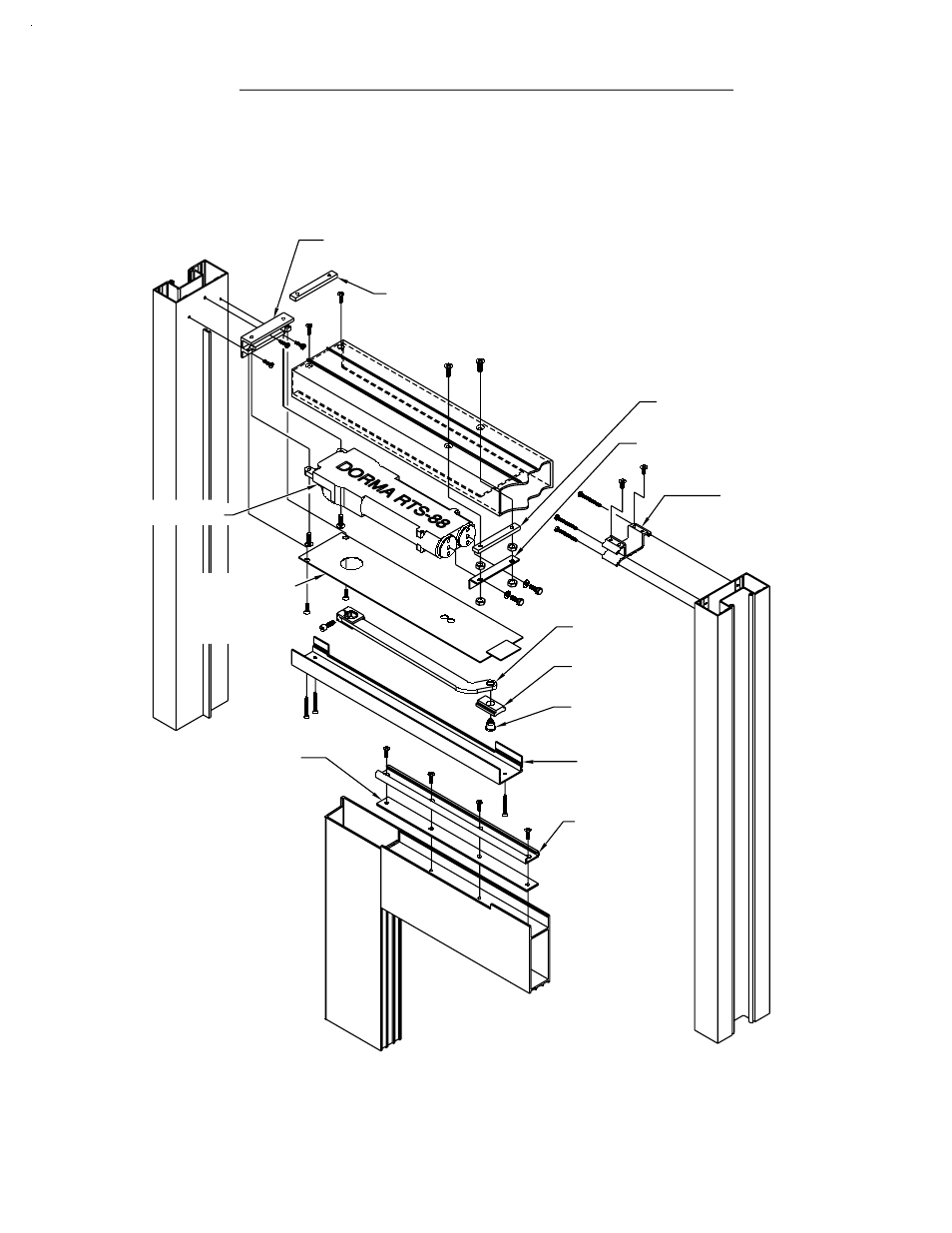

A. BUTT HINGE AND CONTINUOUS HINGE

SECTION IV EXPLODED VIEWS
