PAGE 15

BAB 7/01

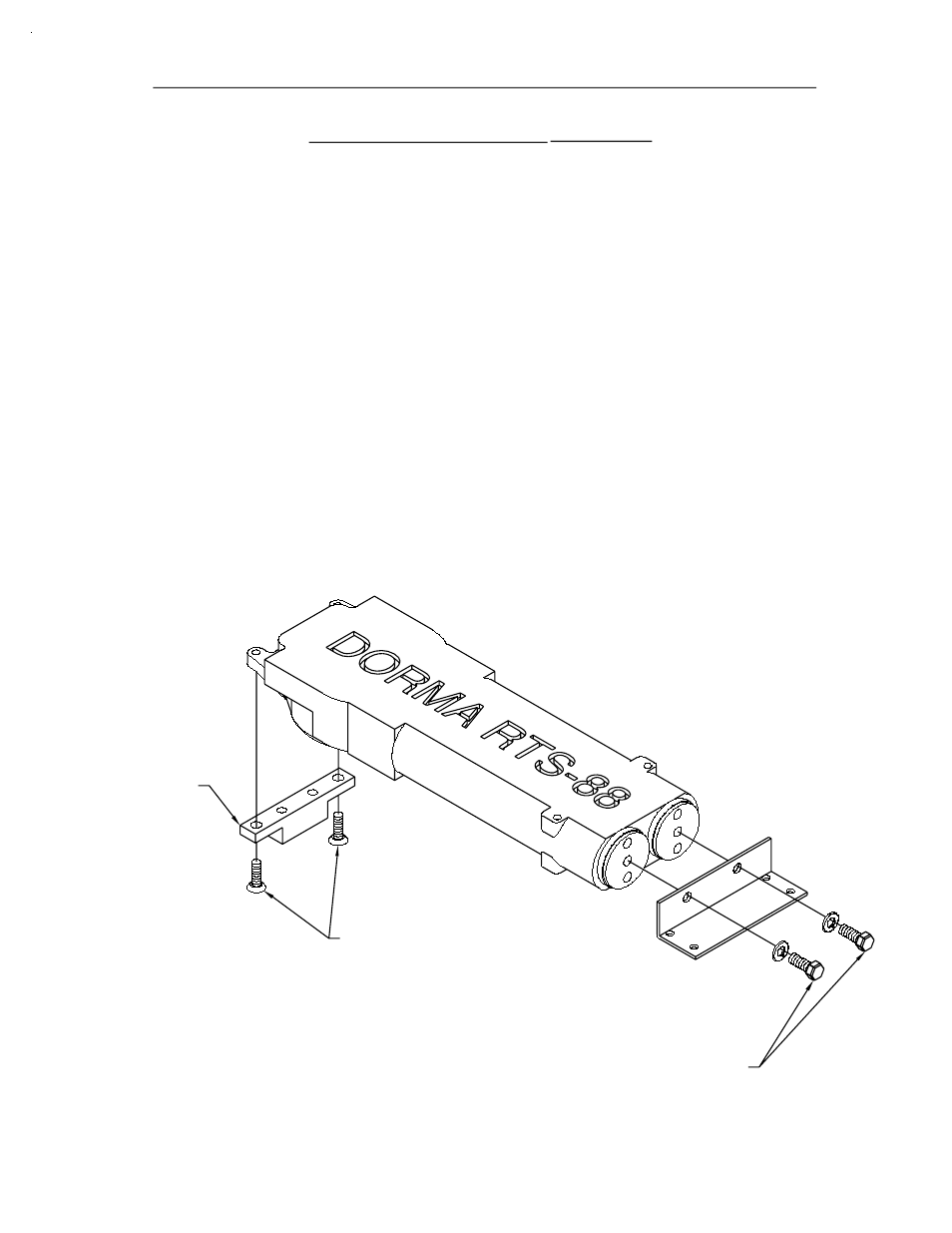

STEP B.

1/4" ID WASHER (C)

1/4"-20X1/2" HX-MS (C)

#12-24X3/4"

PL-FH-MS 18-8 UC

{M100 - CLR}
{M108 - BRZ}

STEP A.

MOUNTING

BLOCK

{K435}

A.

ATTACH THE MOUNTING BLOCK TO THE CLOSER WITH TWO #12-24X3/4"

FH-MS THROUGH THE BLOCK AND INTO THE CLOSER AS SHOWN.
RETAIN THE SCREWS THAT MATCH THE COLOR OF THE FRAME FOR

ATTACHMENT OF THE ASSEMBLY TO THE HEADER/T-BAR.

B.

ATTACH THE ANGLE CLIP TO THE CLOSER WITH TWO 1/4"-20X5/8" BOLTS

WITH LOCK WASHERS THROUGH THE ANGLE CLIP AND INTO THE CLOSER AS

SHOWN.

B. OFFSET PIVOTS

1. CLOSER PREPARATION AND INSTALLATION STEPS

SECTION III CLOSER PREPARATION AND

INSTALLATION

(CON’T)
