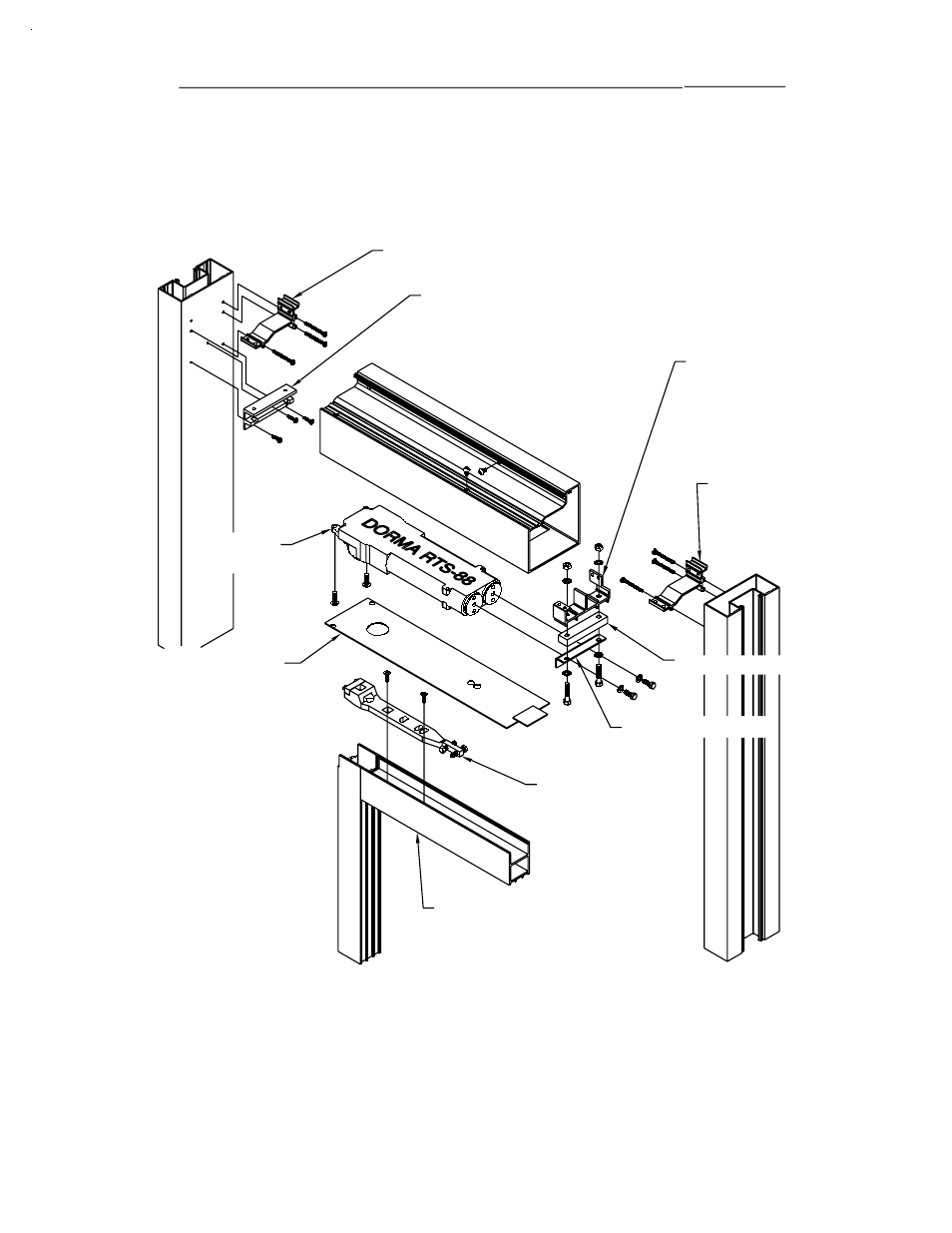

B. CENTER PIVOTS

SPACER BLOCK

MOUNT

4" HEADER

{

K497} CONT. AND BUTT HINGES

{

K498} CENTER PIVOTS

4 1/2" HEADER

{

K928} CENTER PIVOTS

{

K929} CONT. AND BUTT HINGES

ANGLE BRACKET

(BY DORMA)

SLIDE ARM

(BY DORMA)

COVER PLATE

{

K492} PKG. MILL

{

K495} PKG. CLR

{

K496} PKG. BRZ

SHEAR BLOCK

{K173}

SHEAR BLOCK
{

K173}

F CLIP

(BY DORMA)

CLOSER

(BY DORMA)

TOP RAIL

SECTION IV EXPLODED VIEWS

(CON’T)
