BAB 7/01

PAGE 12

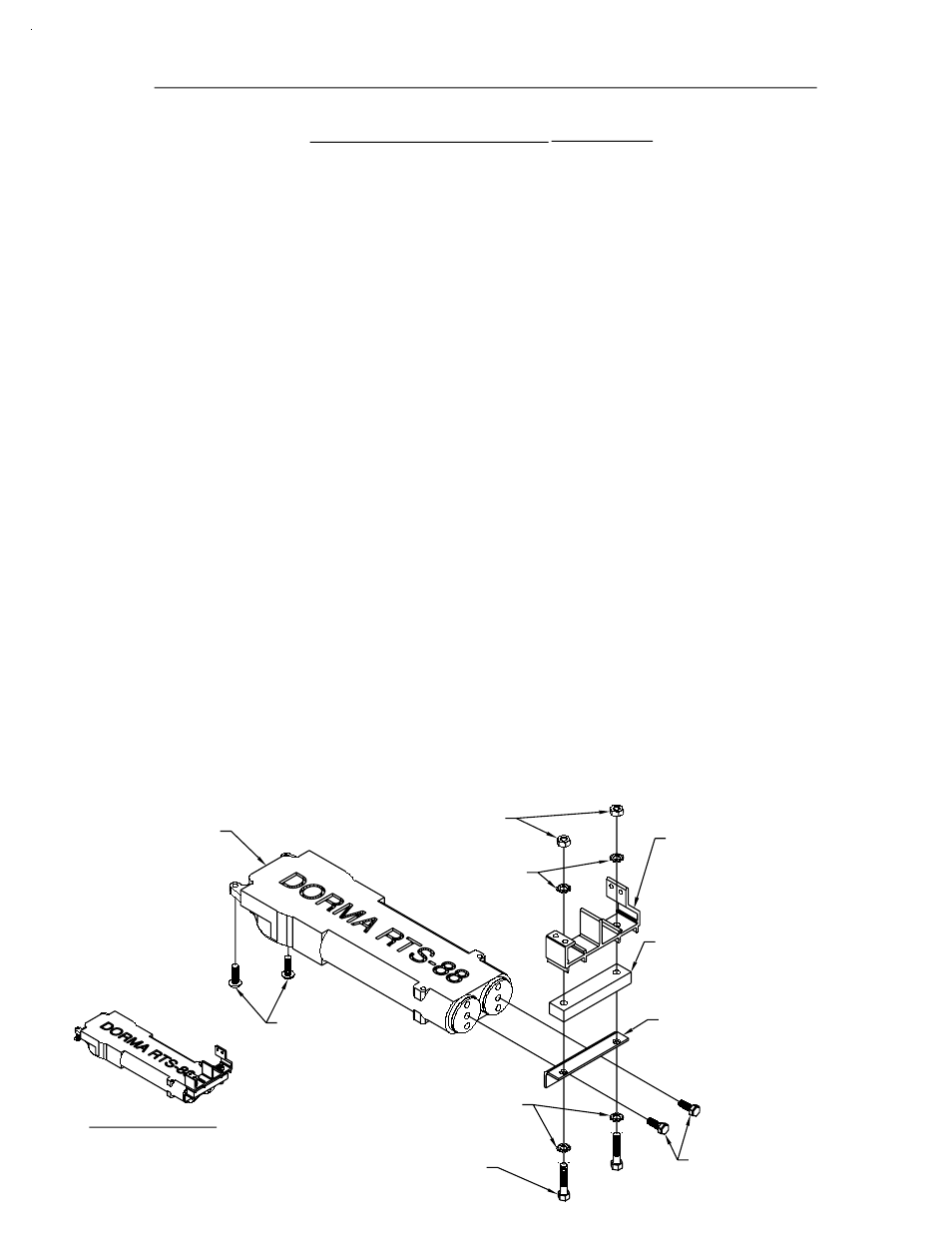

ANGLE BRACKET (C)

1/4-20 X 1/2" (C)

SPACER BLOCK
-4 1/2" HEADER/T’BAR ONLY-
{SUPPLIED IN K501 AND K500}

MOUNT {

4" - K497 CONT./BUTT HINGES}

{4" - K498 CENTER PIVOTS}

{4 1/2" - K929 CONT./BUTT HINGES}

{4 1/2" - K928 CENTER PIVOTS}

1/4-20 NUTS (C)

CLOSER

1/4 I.D. LOCK WASHER

1/4"-20 X 5/8" (C)

4" HEADER/T’BAR - 1/4-20 X 5/8" {K497 AND K498}

4 1/2" HEADER/T’BAR - 1/4-20 X 1 1/4" {K929 AND K928}

READY TO INSTALL

THREAD TWO 1/4-20 X 5/8" FILLISTER HEAD MACHINE SCREW (SUPPLIED BY DORMA)

APPROX. TWO TO THREE TURNS INTO THE THREADED HOLES ON THE HINGE/PIVOT SIDE OF

THE CLOSER. LEAVE LOOSE UNTIL THE CLOSER IS INSTALLED IN THE "F" CLIP.

FASTEN THE DORMA ANGLE BRACKET TO THE CLOSER USING THE 1/4"-20 BOLTS AND

WASHERS, SUPPLIED WITH THE CLOSER.

4" HEADER/TRANSOM BAR:

FASTEN THE MOUNT {K497 OR K498} TO THE ANGLE BRACKET USING THE TWO 1/4"-20 X 5/8"

HEX BOLTS {ISS1}, SUPPLIED WITH THE K497. USE THE 1/4"-20 LOCK WASHERS AND 1/4"-20

NUTS THAT ARE SUPPLIED WITH THE CLOSER.

4 1/2" HEADER/TRANSOM BAR:

FASTEN THE MOUNT {K929 OR K928} TO THE ANGLE BRACKET, PLACING THE SPACER BLOCK

(SUPPLIED WITH THE K929) BETWEEN THE ANGLE BRACKET AND THE MOUNT, USING THE TWO

1/4"-20 X 1 1/4" HEX BOLTS {IHP9}, SUPPLIED WITH THE K929. USE THE 1/4"-20 LOCK WASHERS

AND 1/4"-20 NUTS THAT ARE SUPPLIED WITH THE CLOSER.

A. BUTT HINGE, CONTINUOUS HINGE, CENTER PIVOTS

(CON’T)

2. CLOSER PREP AND INSTALLATION STEPS FOR 4" AND
4 1/2" HEADER/T’BAR

SECTION III CLOSER PREPARATION AND

INSTALLATION

(CON’T)
