Page 11

PAGE 9

BAB 7/01

A. BUTT HINGE, CONTINUOUS HINGE, CENTER PIVOTS

1. CLOSER PREP AND INSTALLATION STEPS FOR 1 3/4" AND
2" HEADER/T’BAR

SECTION III CLOSER PREPARATION AND

INSTALLATION

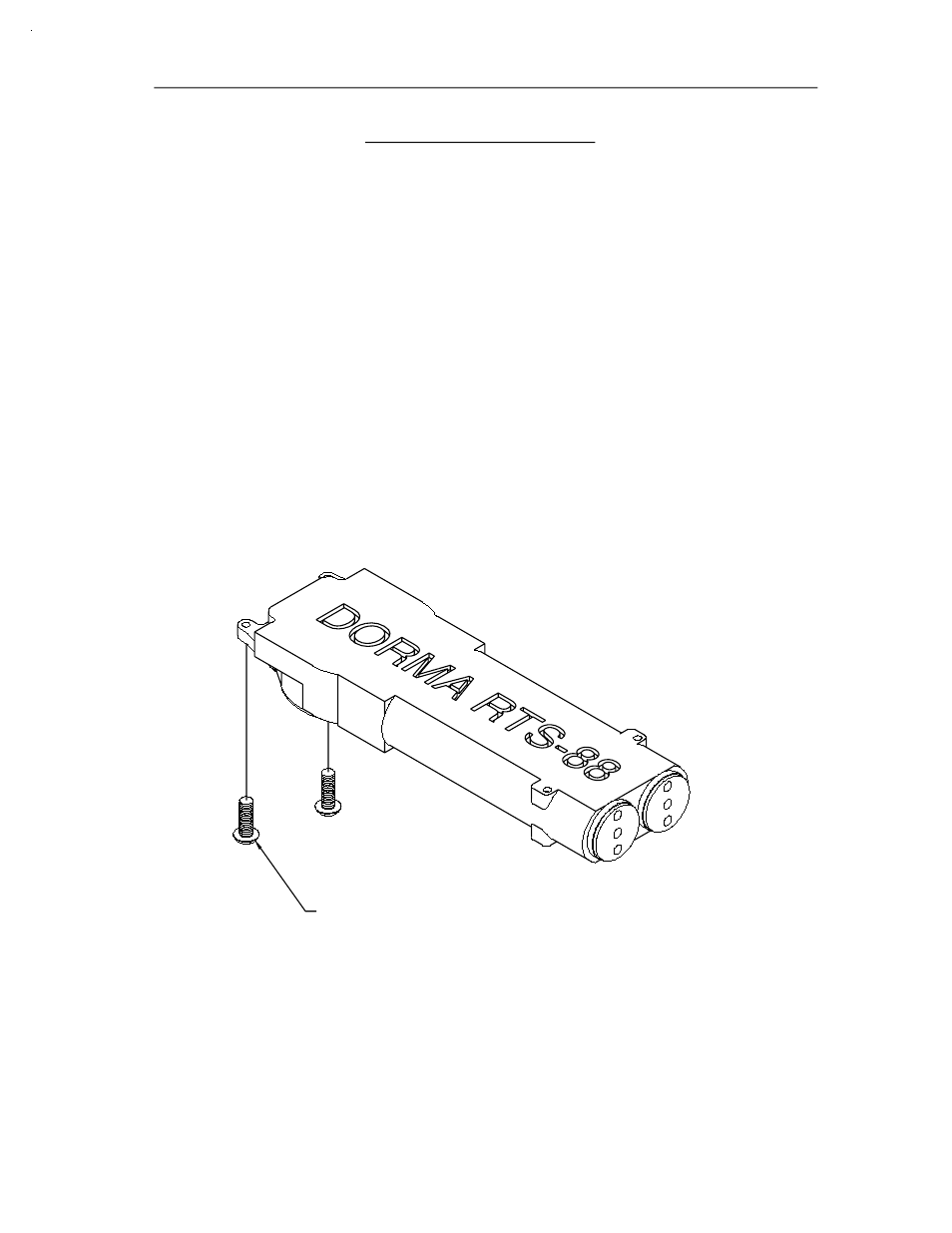

1/4-20 X 5/8" (C)

THREAD TWO 1/4-20 X 5/8" FILLISTER HEAD MACHINE SCREWS (SUPPLIED

BY DORMA) APPROX. TWO TO THREE TURNS INTO THE THREADED HOLES ON

THE HINGE/PIVOT SIDE OF THE CLOSER. LEAVE LOOSE UNTIL THE CLOSER IS

INSTALLED IN THE "F" CLIP.
