Series 5600 Silicone Structural Glazed Installation Instructions

Section V: Frame Assembly

Step #2 Install Frame Components

A.)

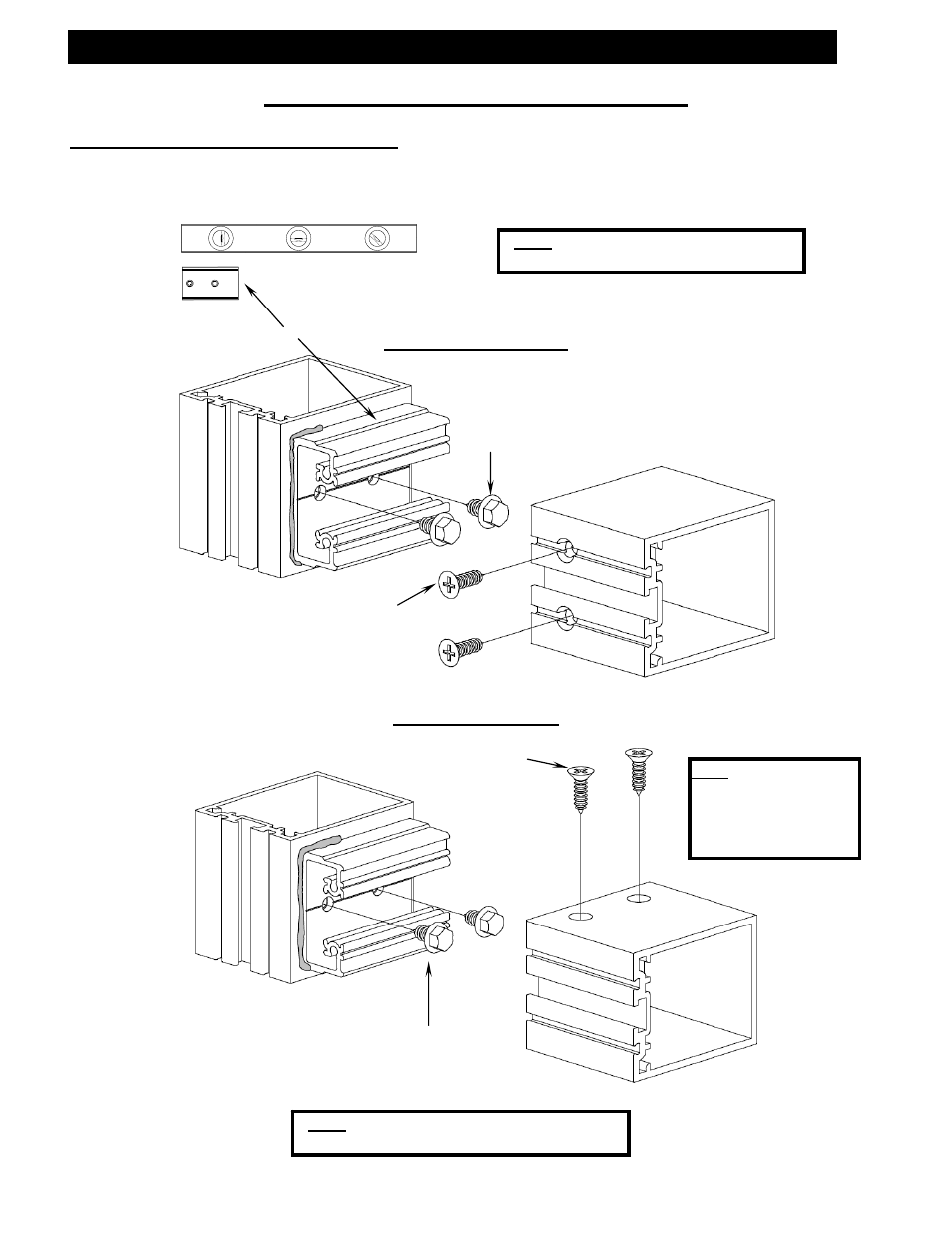

Refer to the approved shop drawings for job conditions. Install assembled frames

according to the approved shop drawings.

Concealed Fastener

Exposed Fastener

#8 X 5/8” FH SMS

Note: Shear block must be leveled

and perpendicular to the vertical.

Note: Screws should be torqued to full

tightness after leveling shear block.

#10 X 3/4” PH SMS

#14 X 1/2” HWH SMS

Level

Shear Block

Note: Fasten in hidden

location where possible.

(Top of horizontal at

ceiling, below horizontal

at stool.)
