Series 5600 Silicone Structural Glazed Installation Instructions

Section IX: Snap-On Exterior Covers

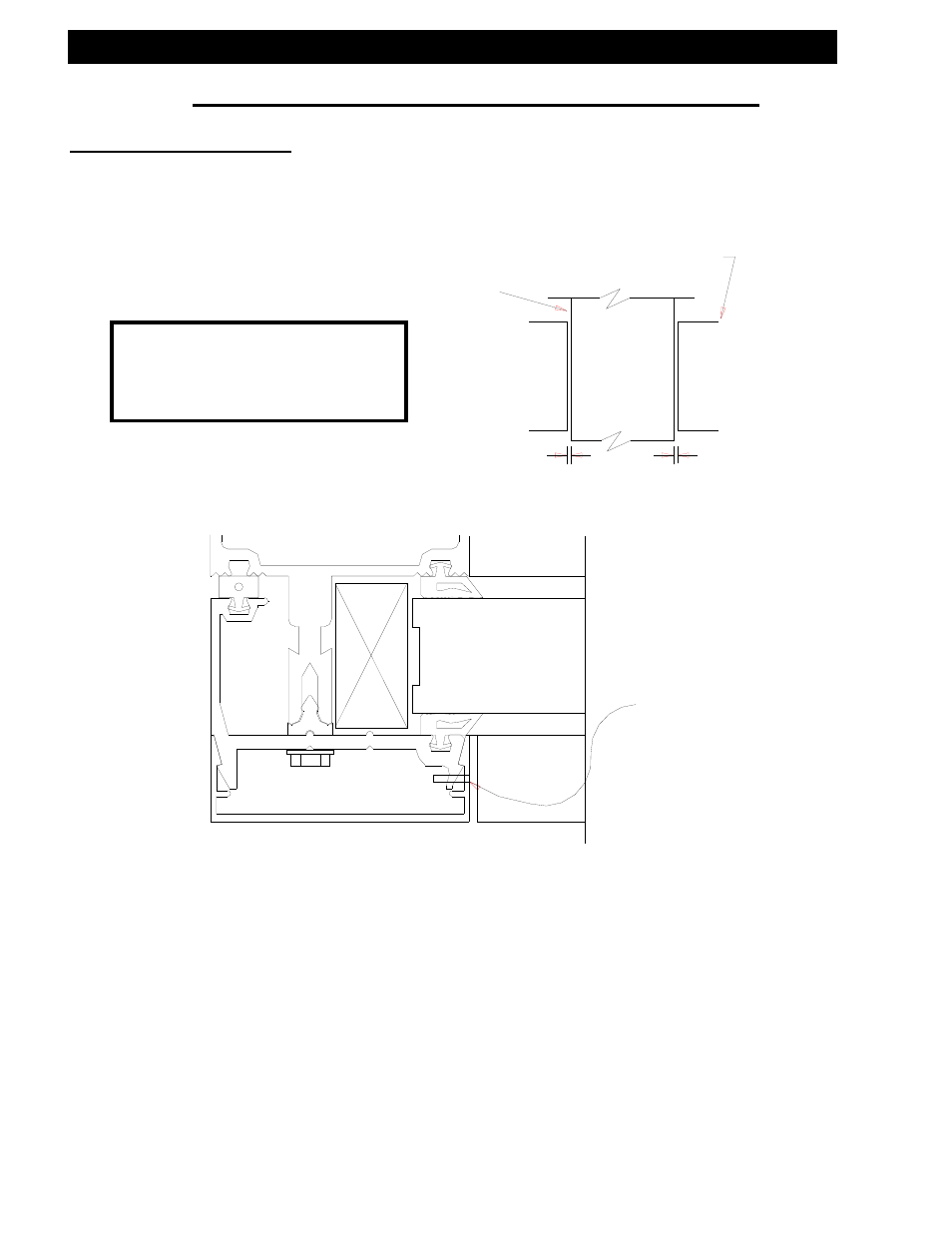

Snap-On Exterior Cover

1/16” X 5/16” roll pin at

center of cut length is

recommended to

prevent slippage. Roll
pin can be located at

horizontal cover to

eliminate exposure.

Horizontal cover

Vertical cover

Equal space both ends

of horizontal cover

Note: Horizontal covers with a

depth of 1” or more must
be mechanically attached

similar to detail below.
