Series 5600 Silicone Structural Glazed Installation Instructions
Section VI: Glazing Preparation
Apply Preset Glazing Gaskets to Mullions
Note:
A.) Apply sealant in raceway a
minimum of 2” each way at all
corners. (Ref. to page 16)
B.) Remove glazing gaskets from
reel and allow to shrink.
C.) Cut vertical D.L.O. + 1 ¾”.
D.) Cut horizontal D.L.O. + ½”.
E.) Seal all gasket corners; pull
horizontal gasket back, seal
end and jam into vertical
gasket to insure a snug fit.

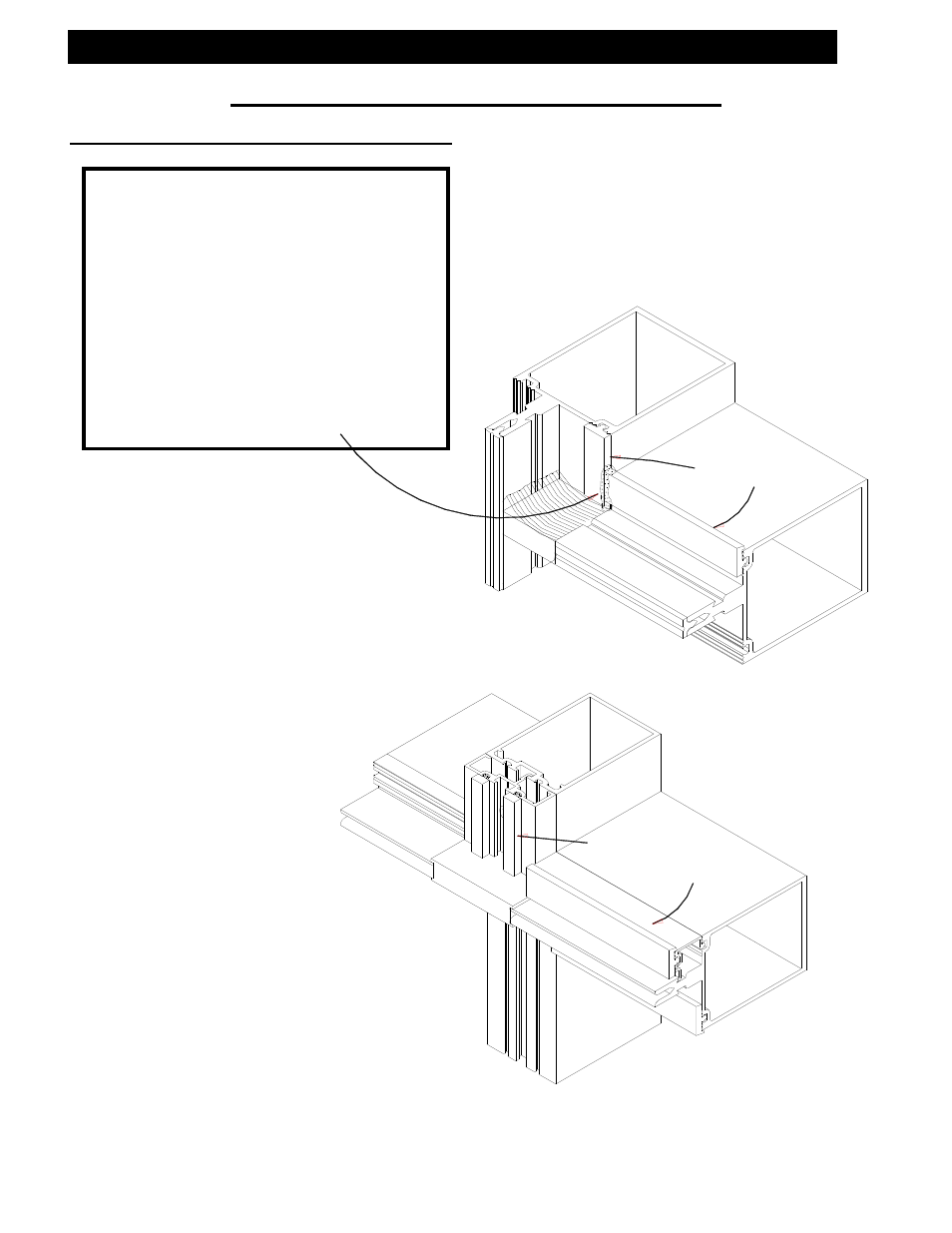

See detail at right.
Preset Gasket
Preset Spacer
Preset Gasket
Cut horizontal gaskets at
structural glazed mullions to
D.L.O. + ¼” at each end.
