Series 5500 Advanced & Alternate Installation Instructions
Section VIII: SSG Glazing Adaptor Installation
STEP #1 INSTALL GLAZING ADAPTERS (CONTINUED)

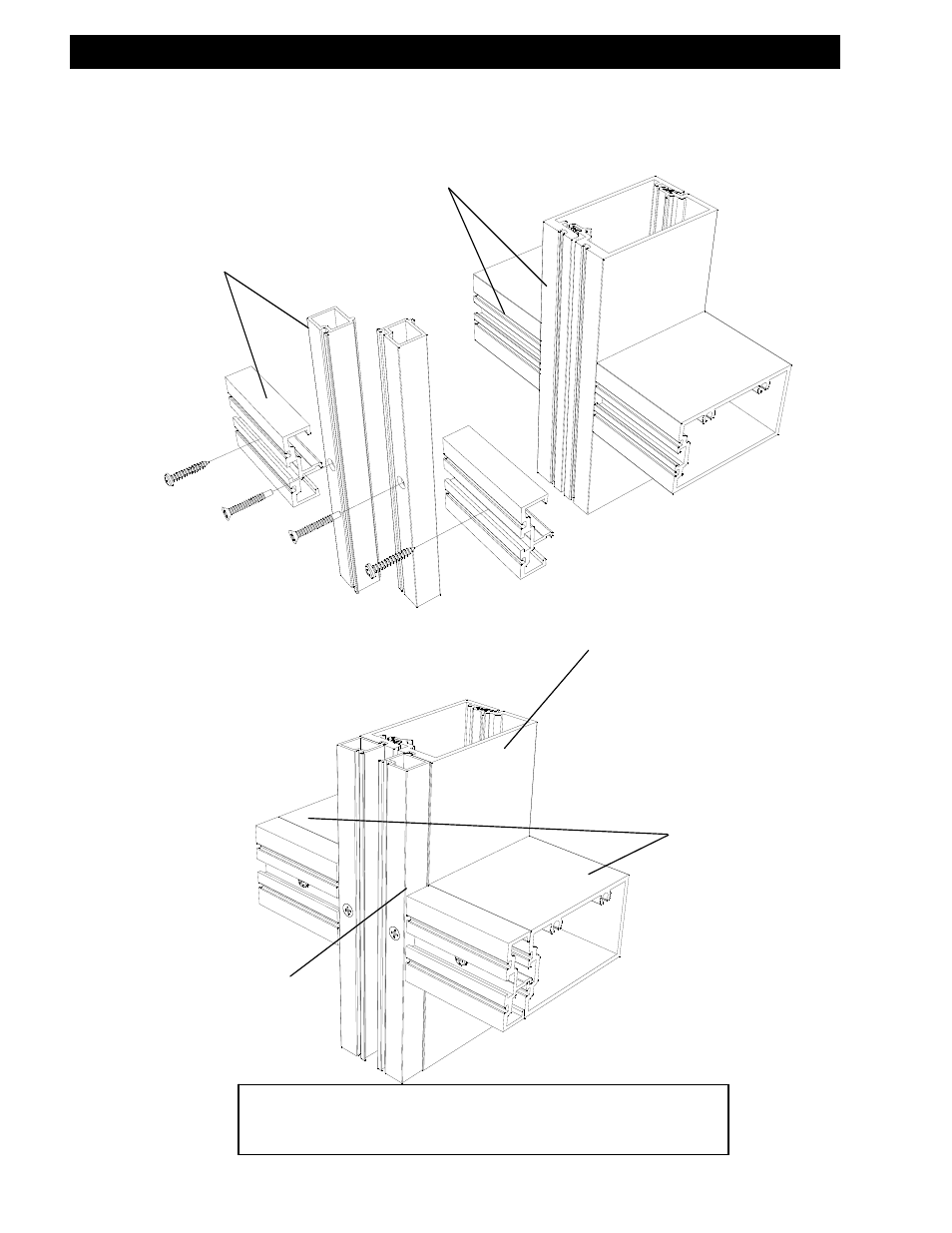

SSG INTERMEDIATE EXPANSION VERTICAL AND
SSG INTERMEDIATE HORIZONTAL
SSG EXPANSION
MULLION
SSG HORIZONTAL
MULLIONS
SCREW APPLIED
GLAZING
ADAPTERS
NOTE: Refer to the approved
shop drawings for screw
types, adapter part numbers,
and glazing combinations.
Continuously seal the
gasket raceway with
sealant prior to
installing the adapters.
Seal and tool the sealant at
the ends of the adapters at the
intersection of the verticals.
