Alternate anchorage method) – EFCO S5500 Advanced User Manual
Page 21
EFCO CORPORATION 6/2012 PART NO. Y557
21
Series 5500 Advanced & Alternate Installation Instructions
STEP #2 PREPARE TO SET FRAMES
A. Slide the anchor plates into the base anchors that were installed during frame assembly.
B. Refer to the approved shop drawings to review anchor placement, type, and conditions.

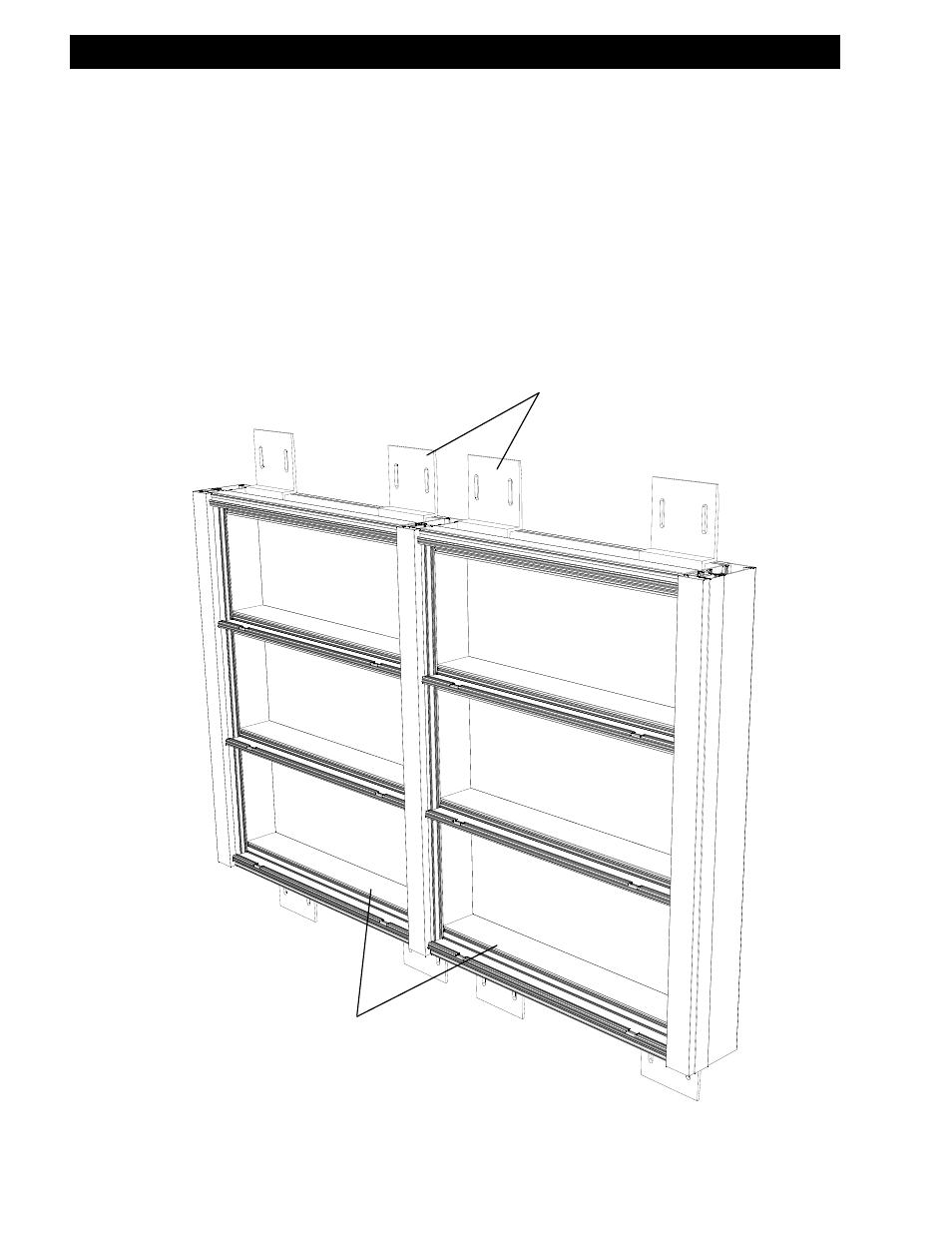

CUSTOM TWO-PART
EXTRUDED
ALUMINUM ANCHORS
ASSEMBLED GROUP
OF FRAMES
Section V: PUNCHED OPENING & RIBBON WINDOWS
(Alternate Anchorage Method)
