EFCO CORPORATION 6/2012 PART NO. Y557

17

Series 5500 Advanced & Alternate Installation Instructions

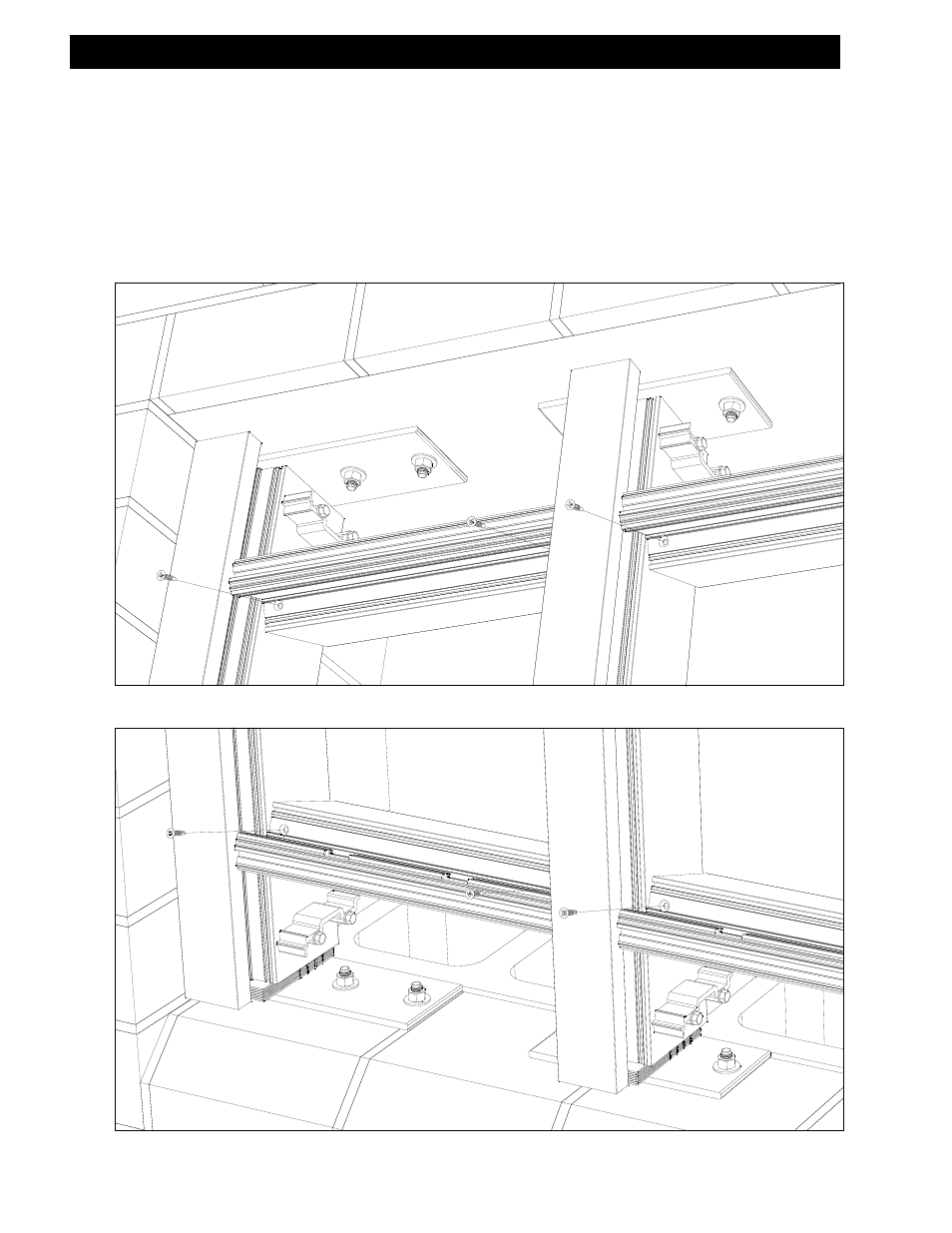

STEP #5 INSTALL FRAME HEAD & SILL COMPONENTS

A. Drop-on and attach head and sill horizontals as indicated in the approved shop

drawings. Be certain to properly hook the horizontal onto the shear block.

B. Section II of the

Standard Installation Instructions

for special sealant and assembly

notes.

C. Refer to Sections IV and V for Glazing Preparation and Glazing Installation.

SILL

HEAD

Section III: Alternate Anchorage Method

(Heavy-Duty Anchor Connections)
