Series 5500 Advanced & Alternate Installation Instructions
IMPORTANT NOTE:
It is critical to allow at least a ¾” space between the perimeter of the jamb mullion and
the condition for setting space for the last frame unit to be installed.

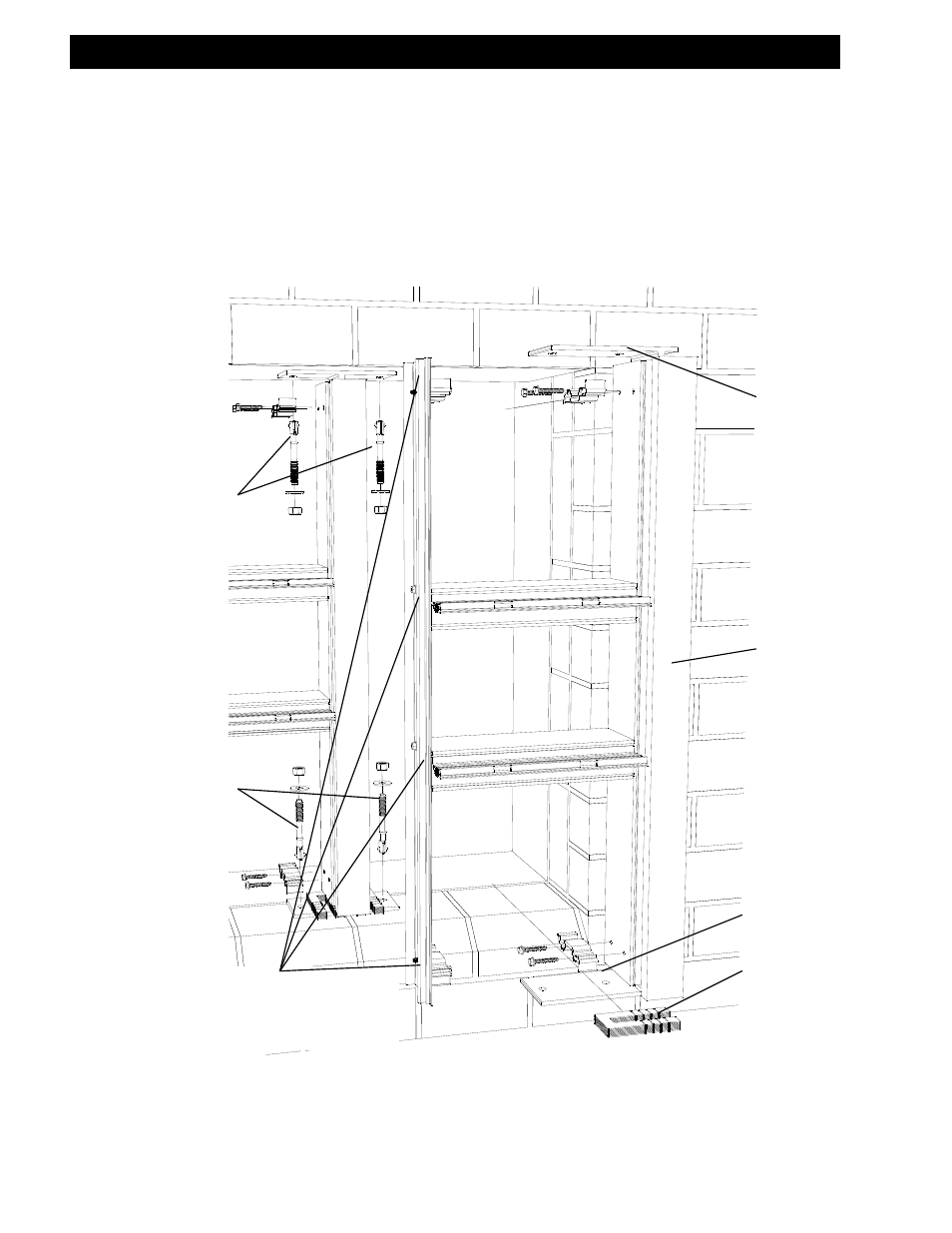

STEP #4 INSTALL FRAME HEAD & SILL COMPONENTS
A. Set the last frame in the run into the opening, mating the filler with the intermediate
vertical until the filler and vertical snap together.
B. When the frame is set level and plumb, apply dead load shims below the verticals, and
apply anchor bolts as shown per the approved shop drawings.
DEAD LOAD
SHIMS
ANCHOR BOLTS
AS REQ’D.
‘F’ ANCHOR
‘F’ ANCHOR
PRE-ASSEMBLED
FRAME UNIT
ANCHOR BOLTS
AS REQ’D.
See Section III of the Standard
Installation Instructions , step 4 for
special sealant note at horizontals.
Section III: Alternate Anchorage Method
(Heavy-Duty Anchor Connections)
