Page 15

EFCO CORPORATION 6/2012 PART NO. Y557

Series 5500 Advanced & Alternate Installation Instructions

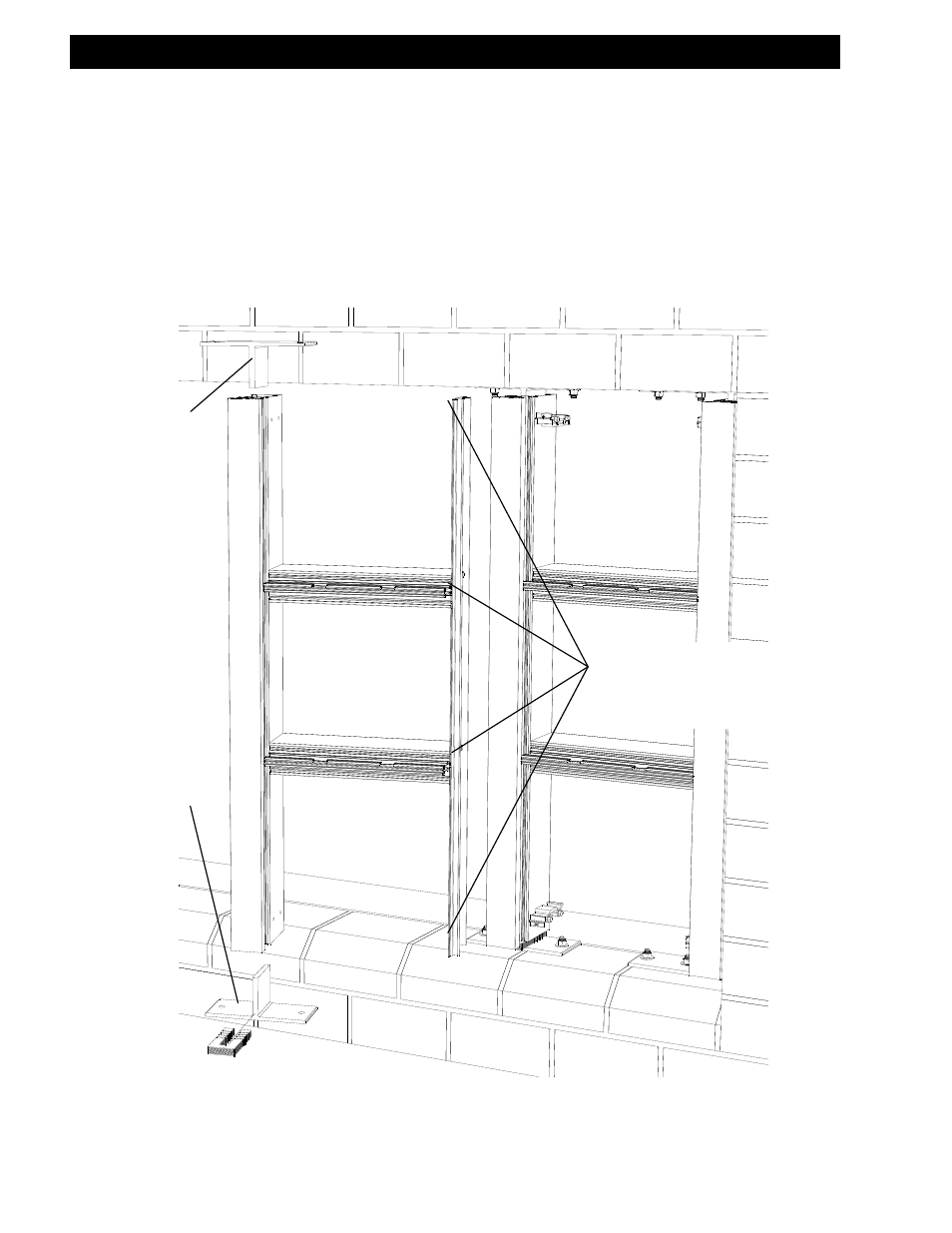

STEP #3 INSTALL FRAME COMPONENTS

A. From pages 12, 13, and 14, repeat steps 1 and 2. Set each successive frame into the

opening, snapping the verticals and fillers at each frame-until all frames are installed up

to the last frame at the opposite jamb.

B. Check frequently to ensure the installed framing is in the proper position with regard to

established benchmarks.

See Section III of the

Standard Installation

Instructions for special
sealant note at horizontals.

‘M’ ANCHOR

NOTE: On long runs, check overall frame dimensions at every fifth opening to avoid

dimensional build-up. The commercial cut length tolerance is +/- 1/16”. It is critical

to check every fifth unit for location relative to established benchmarks.

Section III: Alternate Anchorage Method

(Heavy-Duty Anchor Connections)
