S P R I N G A P P L I E D A I R R E L E A S E ( S A A R ) B R A K E A S S E M B L Y I N S T A L L A T I O N
Introduction
Version 1 Spring Applied Air Release (SAAR) Brake Assembly Installation
3

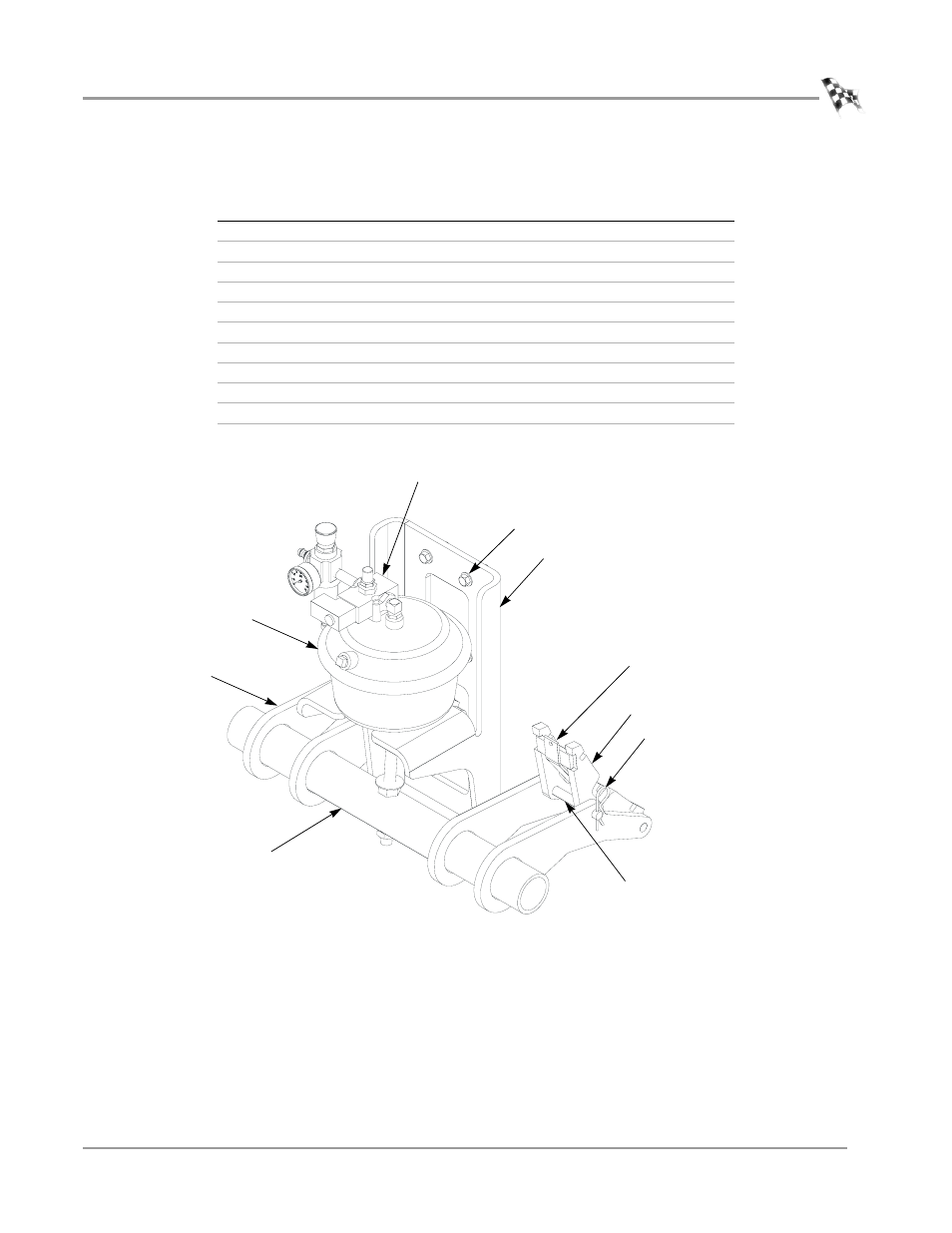

Figure 1: Spring Applied Brake Upgrade
77010008 Spring Applied Brake Upgrade, 224
Stock Code Description Quantity
21612112 Mount, Air Can, Upgrade, 224 1
21612400 Brake Arm, 24 4
21612900 Brake Shoe Retainer, 224 2
21612901 Brake Actuating Tube, 224 1
32904080 Hairpin Cotter, 7/16"-3/4" 4
32916144 Clevis Pin, 1/2" x 4-1/2" 2
34761003 Air Canister, Type R30 1
36582471 Bolt, 3/8-16 x 1-1/2", Flange-Hex 4
61312105 Brake Holder Weldment, 224 2
64111005 Brake Solenoid Assembly, 224-2 1
AB090 clevis pin
air can mount
brake solenoid
assembly
brake holder weldment
hairpin cotter
air canister
brake arm
brake actuating tube
3/8-16 x 1-1/2" bolt
brake shoe retainer
