S P R I N G A P P L I E D A I R R E L E A S E ( S A A R ) B R A K E A S S E M B L Y I N S T A L L A T I O N

Installing the SAAR Brake Assembly

Version 1

Spring Applied Air Release (SAAR) Brake Assembly Installation

13

3

Insert the brake clevis pin through the holes as shown in Figure 12.

4

Install the hairpin cotter.

5

Use the same method to install the remaining brake weldment with arms, pivot,
and hairpin cotter.

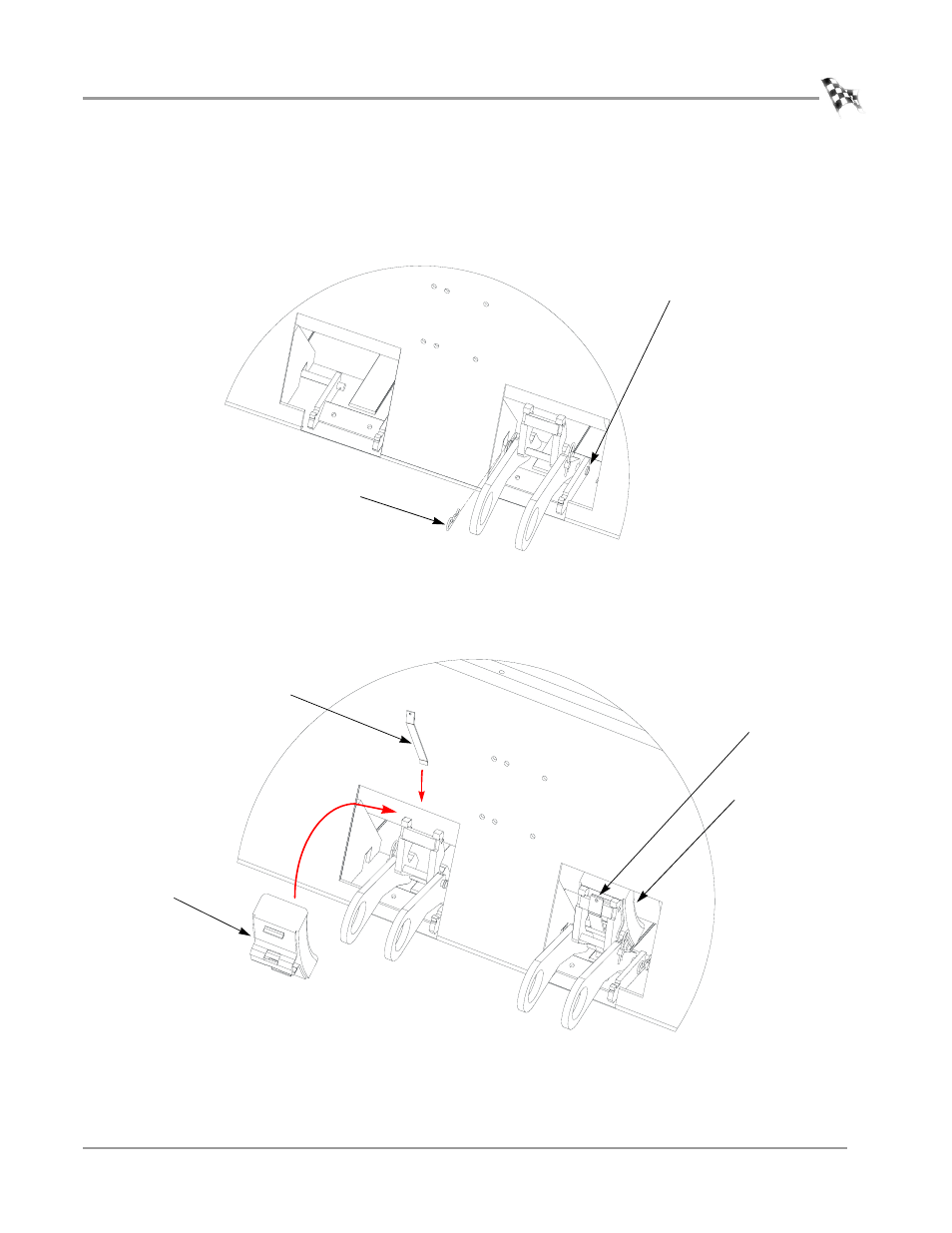

Figure 12: Connect the Brake Weldment and Arms using the Brake Clevis Pin

6

Slide the brake shoe into position and thread the brake shoe retainer into
position. (Now is a good time to check for wear and use new brake shoes if
necessary, P/N 33831001.)

Figure 13: Install the Brake Shoes

BR025

head end of

brake clevis pin

insert

hairpin cotter

BR031

brake shoe

installed

brake shoe

brake shoe retainer

installed

brake shoe

retainer
