S P R I N G A P P L I E D A I R R E L E A S E ( S A A R ) B R A K E A S S E M B L Y I N S T A L L A T I O N

Four Wheel Drive Dynos

Version 1

Spring Applied Air Release (SAAR) Brake Assembly Installation

21

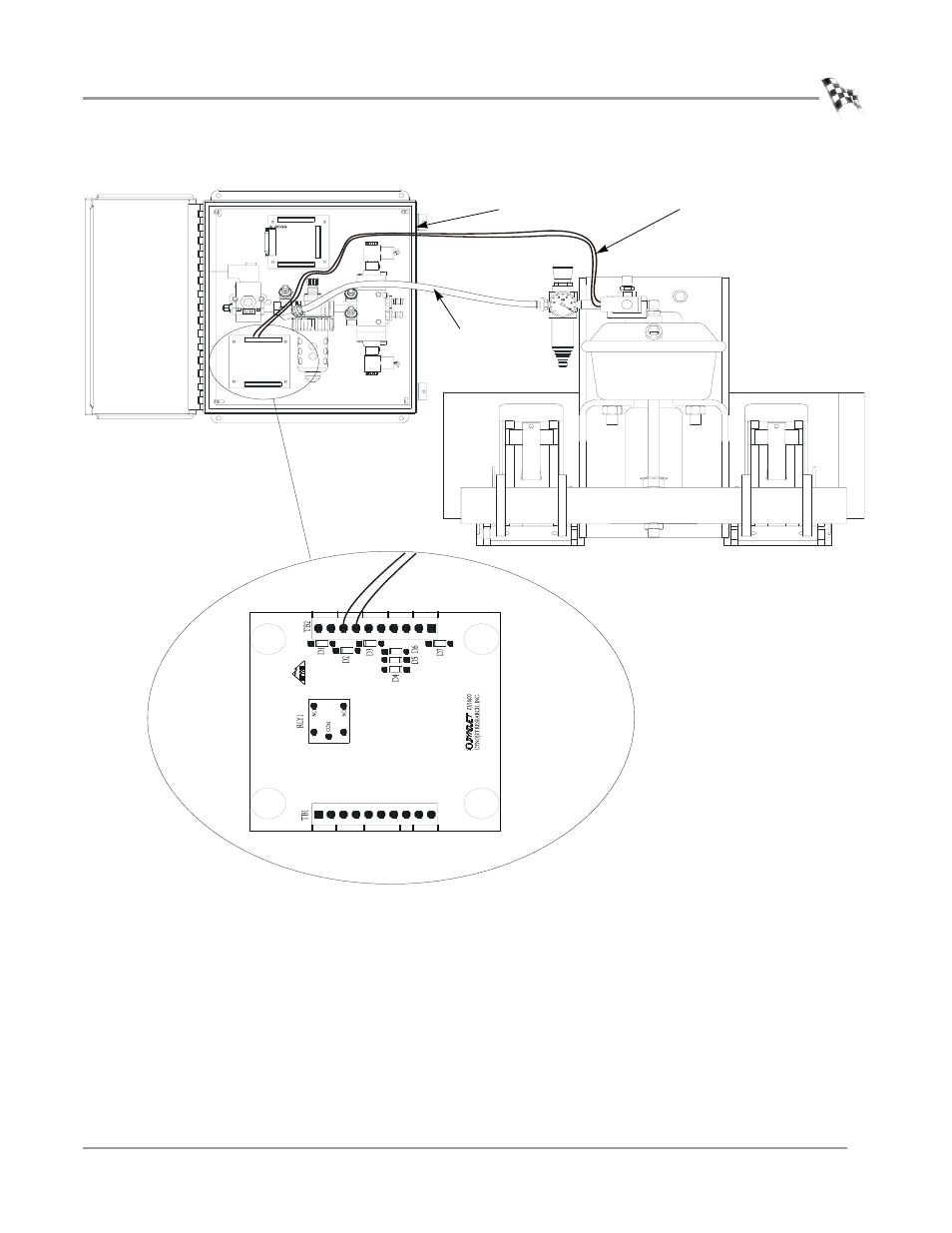

Figure 22: Connect from Solenoid to the Movement Board in the Control Box

IN

BR

K 1

BRK

2

+12V GND

OUT

IN

COM

BRK IN

OUT

RAIL

--

PRES SW

BR033

movement board

control box

connect air

hose to

solenoid,

replace hose

if needed

connect the two black wires

from the brake solenoid to

the terminals labelled

BRK 2 on movement board
