S P R I N G A P P L I E D A I R R E L E A S E ( S A A R ) B R A K E A S S E M B L Y I N S T A L L A T I O N

The Hydraulic Brake Assembly

Version 1

Spring Applied Air Release (SAAR) Brake Assembly Installation

9

5

Slide the brake clevis pin into the square recesses provided. The brake clevis pin
will only slide in one direction. You may need to slide your brake clevis pin
opposite to the direction shown in Figure 8 if your brake clevis pin faces the other
way. After you remove the hydraulic brake assembly, you will reach in to remove
the pivot pins from inside the square recesses.

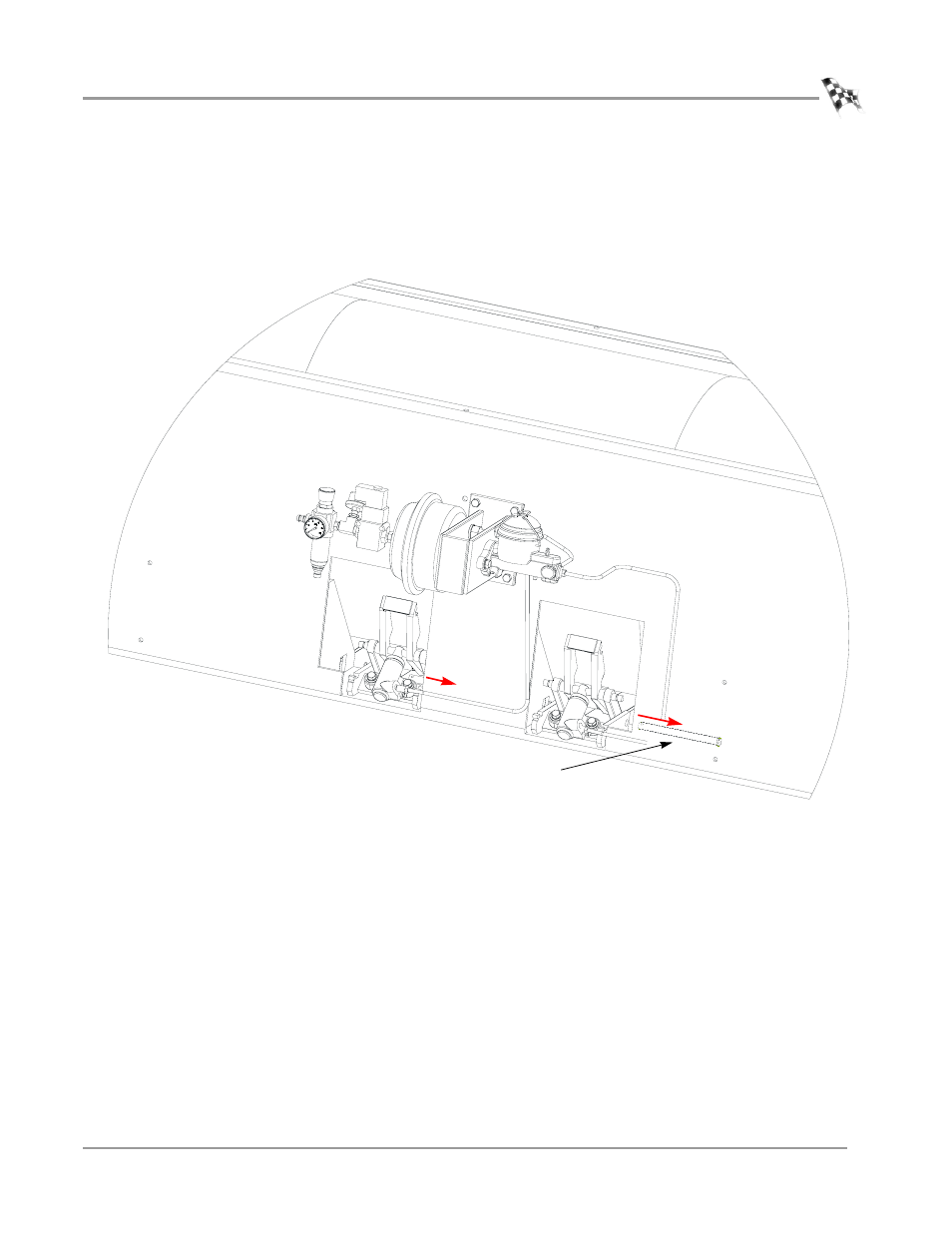

Figure 8: Slide the Brake Clevis Pin into the Square Recess

BR016

slide brake clevis pin into

square recess
