Spring Applied Air Release (SAAR) Brake Assembly Installation

S P R I N G A P P L I E D A I R R E L E A S E ( S A A R ) B R A K E A S S E M B L Y I N S T A L L A T I O N
The Hydraulic Brake Assembly

8

3

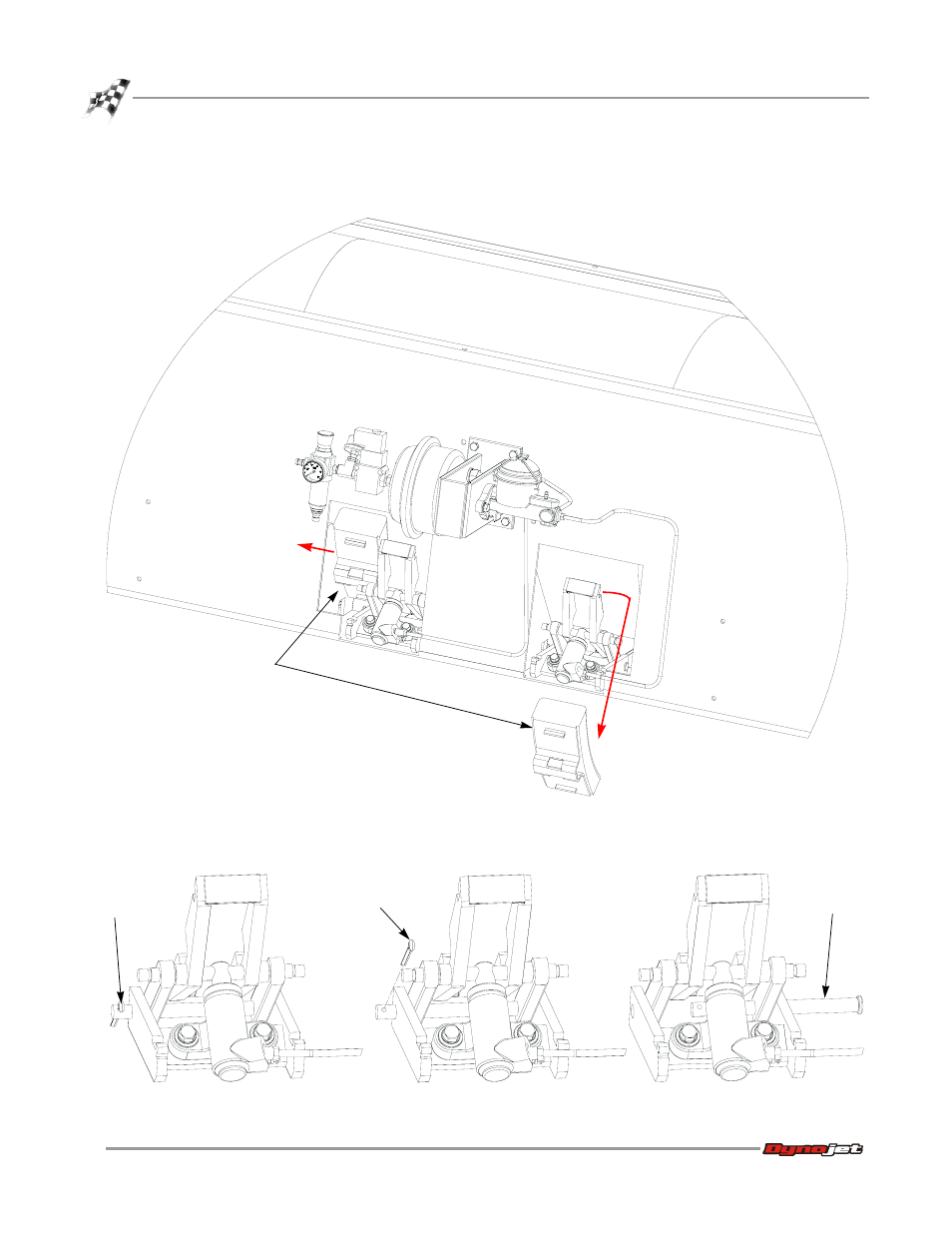

Remove the brake shoes from the assembly by sliding them to the outside. Set the
brake shoes aside to be reused with the SAAR Brake Assembly.

Figure 6: Remove the Brake Shoes

4

Remove the cotter pin from the brake clevis pin on both brakes.

Figure 7: Remove the Cotter Pins Holding the Brake Hanger Pivots

BR015

slide brake shoes toward

the outside and remove

BR020

BR021

BR022

remove

cotter pin

cotter

pin

slide brake

clevis pin
