Detex 02CM Trim - Manual (Page 2)

2-3/4"
Backset
LHR
Lock
Trim Side
Centerline
For 02 CH-M only For 02 CH-M only
Drill 3/8" diameter
(1/2" max) hole
thru door
Assemble pull to trim plate
with "L" screw provided
Install backplate with
(4) "A" screws.
Fasten bottom of pull with
"M" or "N" screw and
washer provided
Install lock with (2) "I" screws or
(2) "J" screws for wood doors.
Drill 3/8" diameter holes thru trim side only
4 places
Drill 1/2"
diameter hole
thru door
For 01 CH-M only
5"
Device
centerline
CL
Mark trim holes
Mark trim holes
Lock washer
#1/4 Lock washer
L
#1/4-20 x 1/2"
M
#1/4-20 x 2-3/4"
3) LHR installation shown (Reverse all steps for RHR).
#1/4-20 x 2-1/4"
N
Mark device
centerline for
trim 40" above
finished floor
MARK HOLES
IMPORTANT!
For modular cable devices,
see electrical instructions
for cable routing.
Install TRIM device
4
#1/4 Lockwashers
Sheet Metal / Wood Screw
#12 x 1"
J
#12-24 x 1/2"
Machine Screws
#1/4-20 x 1"
A I
TRIM side: Use plastic template to mark and drill TRIM holes
1
STEPS 1: PREP DOOR

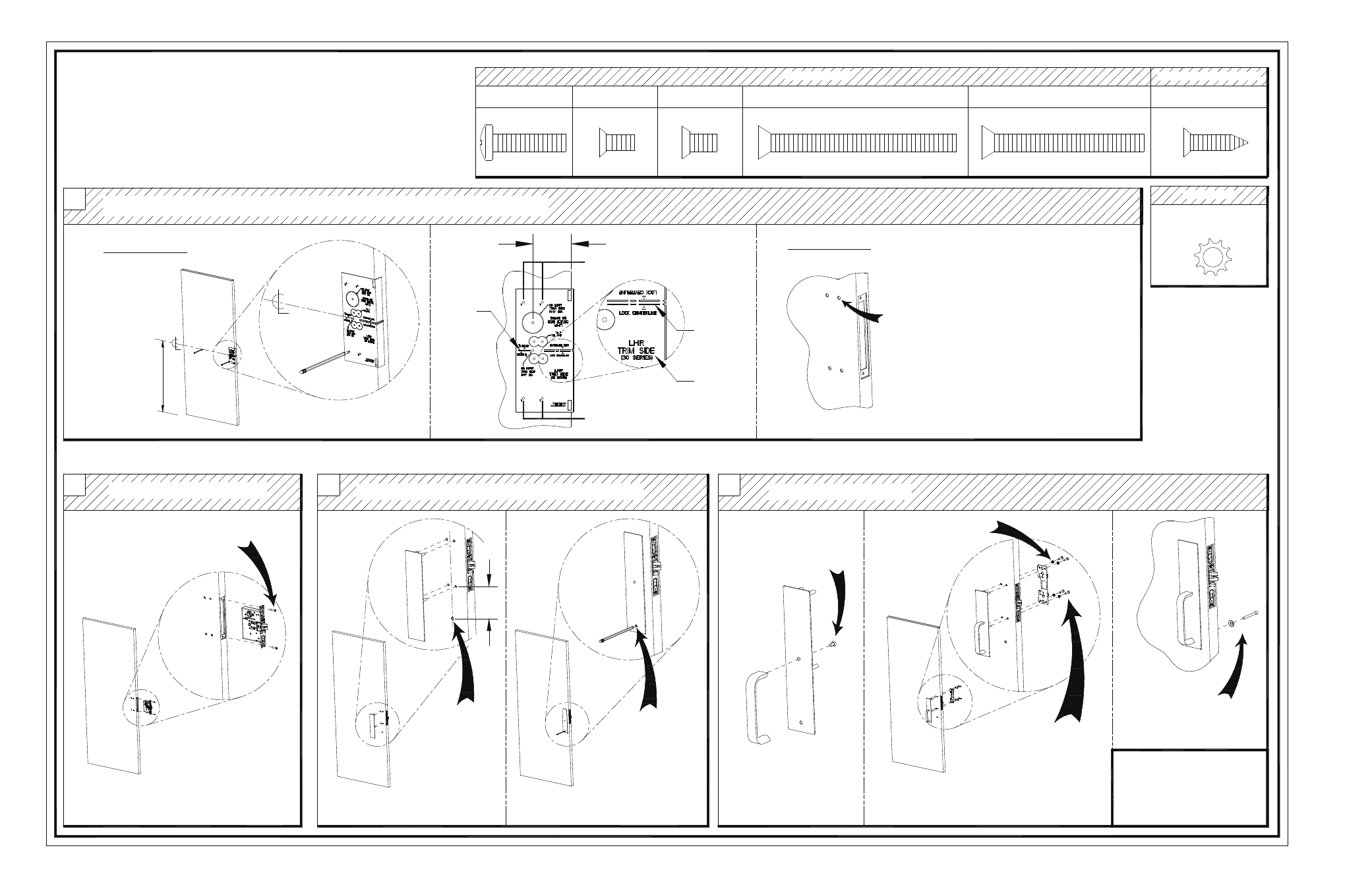

01 & 02CM TRIM INSTRUCTIONS
STEPS 2-4: INSTALL MORTISE LOCK AND TRIM DEVICE
DRILL HOLES
NOTE: 1) Mortise lock NOT supplied with TRIM device.
2) For a retrofit application, remove existing lock and device
before installing new trim.
2
Install MORTISE lock Mark and drill bottom hole for thru bolt
3
