PREPARING THE TRIM:

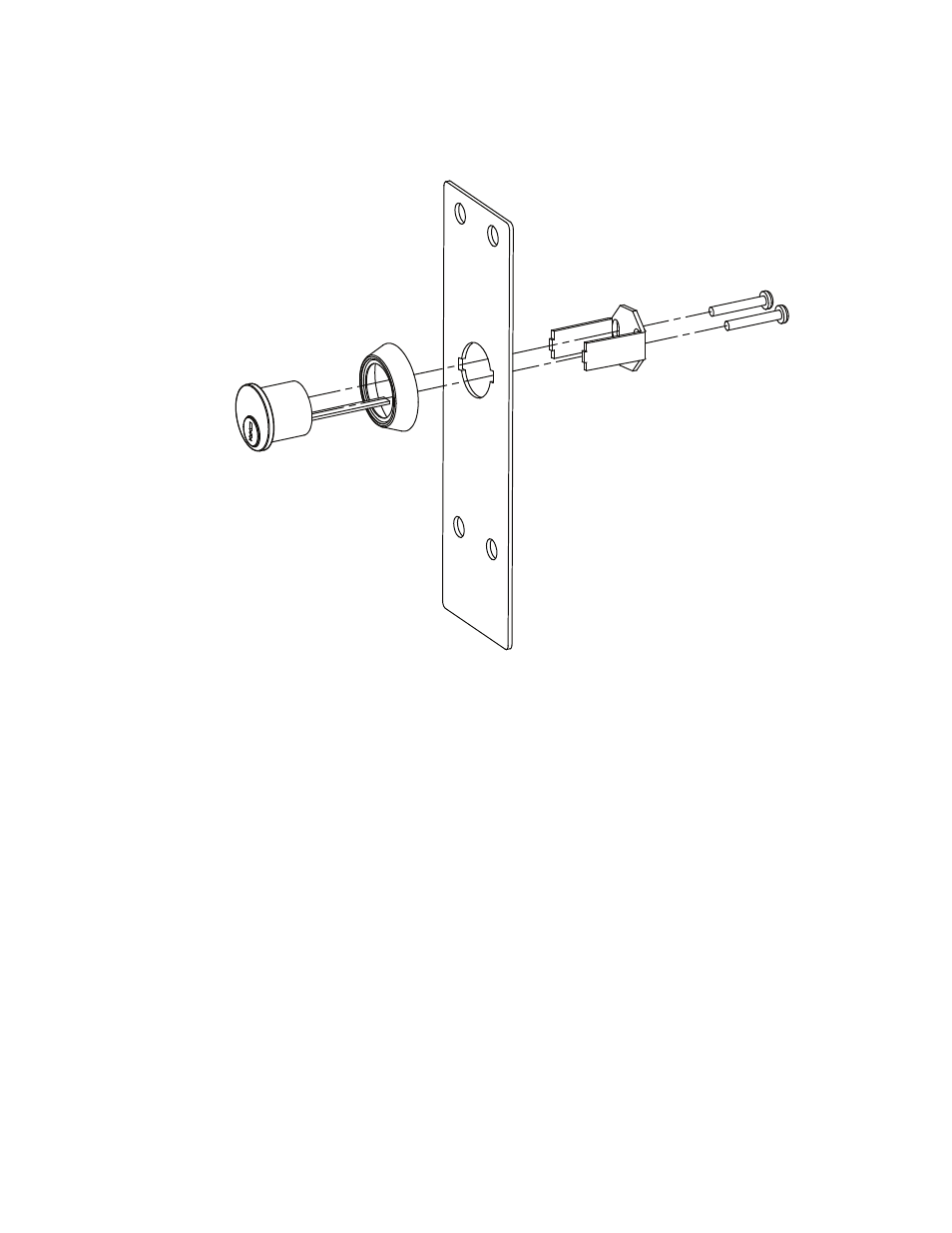

1. Assemble the cylinder bracket and cylinder as shown (Fig. T1). Cut cylinder screws as
required.
PREPARING THE DOOR:
1. Center punch hole "a" marked earlier.
2. Drill two (2) pilot holes "a" (holes located diagonal from each other). Caution: Be sure to
drill STRAIGHT through the door.
3. Drill pilot holes for remaining holes "a" through inside of door only.
4. Using the backplate as a template on the outside door face, align the two through-holes.
Mark and center punch the two (2) remaining holes "a".
5. Note: Verify that the slotted edge of the backplate faces the edge of the door. Mark the
outside trim cam hole "d".
6. Drill pilot holes "a" through outside of door only.
7. Drill four (4) 3/8" holes partway through the door. Complete these holes by drilling from the
opposite door face.
Page 2
Fig. T1
