Model 7800 Family Weight Classifiers User’s Manual 17

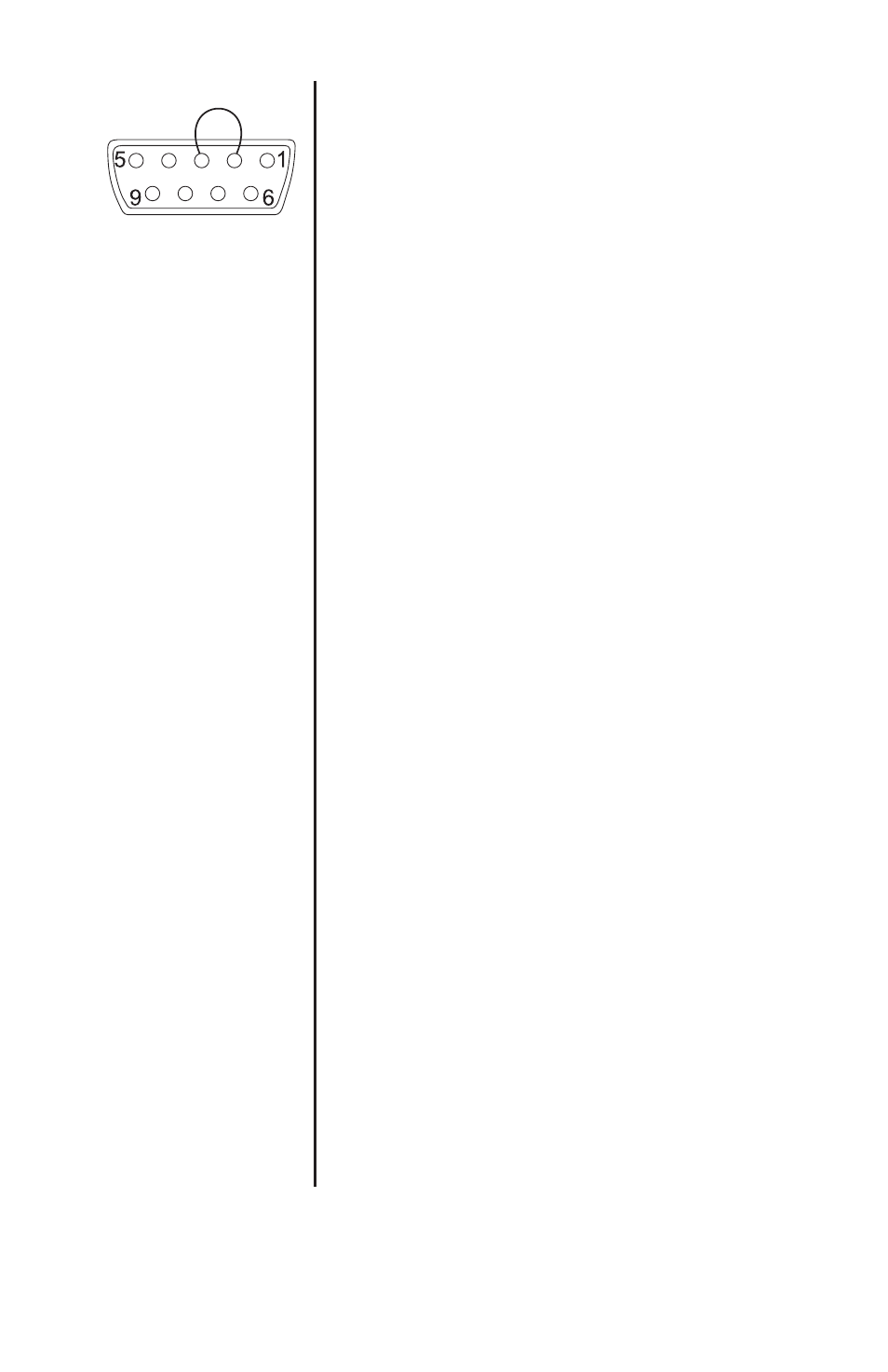

9. With a loopback connector in place, press
the TEST key to perform the I/O test...
PASS or FAIL is displayed briefly, then
I/O.
10. Press the ZERO key . . .
DIV-A is displayed. This stands for the
high resolution DIVISION TEST W/ AZT
enabled.
11. Press the TEST key to perform this test...
The display shows the weight on the
scale at a resolution of 100,000 counts.
12. Press the TEST key to stop the test...
DIV-A is displayed.
13. Press the ZERO key...
DIV-N is displayed. This stands for the
high resolution DIVISION TEST w/o AZT
enabled.
14. Press the TEST key to perform this test...
The display shows the weight on the
scale at a resolution of 100,000 counts.
15. Press the TEST key to stop the test...
DIV-N is displayed.
16. Press the ZERO key...
FILT is displayed. This stands for filter-
ing.
17. Press the TEST key...
The current filter setting, FAST or SLO,
is displayed.
DIAG will flash every
15 seconds during the
high resolution test as
a reminder that you
are doing a test and
not seeing normal
weight readings.
The remaining
selections are for
viewing current
settings only. You can
scroll through the
menu to verify the
settings, but to make
changes, you must
enter configuration or
calibration.
