Model 7800 Family Weight Classifiers User’s Manual 12
With Switch 1 in the Menu mode or OPEN
position, there are four modes available to you.
They are as follows:
DIAG (Diagnostic Mode) – To test areas of
the scale’s function
CONF (Configuration Mode) – To configure
the scale for your application
CAL (Calibration Mode) – To calibrate the
scale
RE-CAL (Recalibration Mode) – To change
resolution and rounding type
The structure for these menus is shown in Figure
3. Specific information about each mode followed
by step-by-step instructions for accessing them
are described in the following pages.
With Switch 2 in the Gravity Mode or OPEN
position, you may increase the local gravity value
by pressing the ZERO key, or decrease the value
by pressing the TEST key.

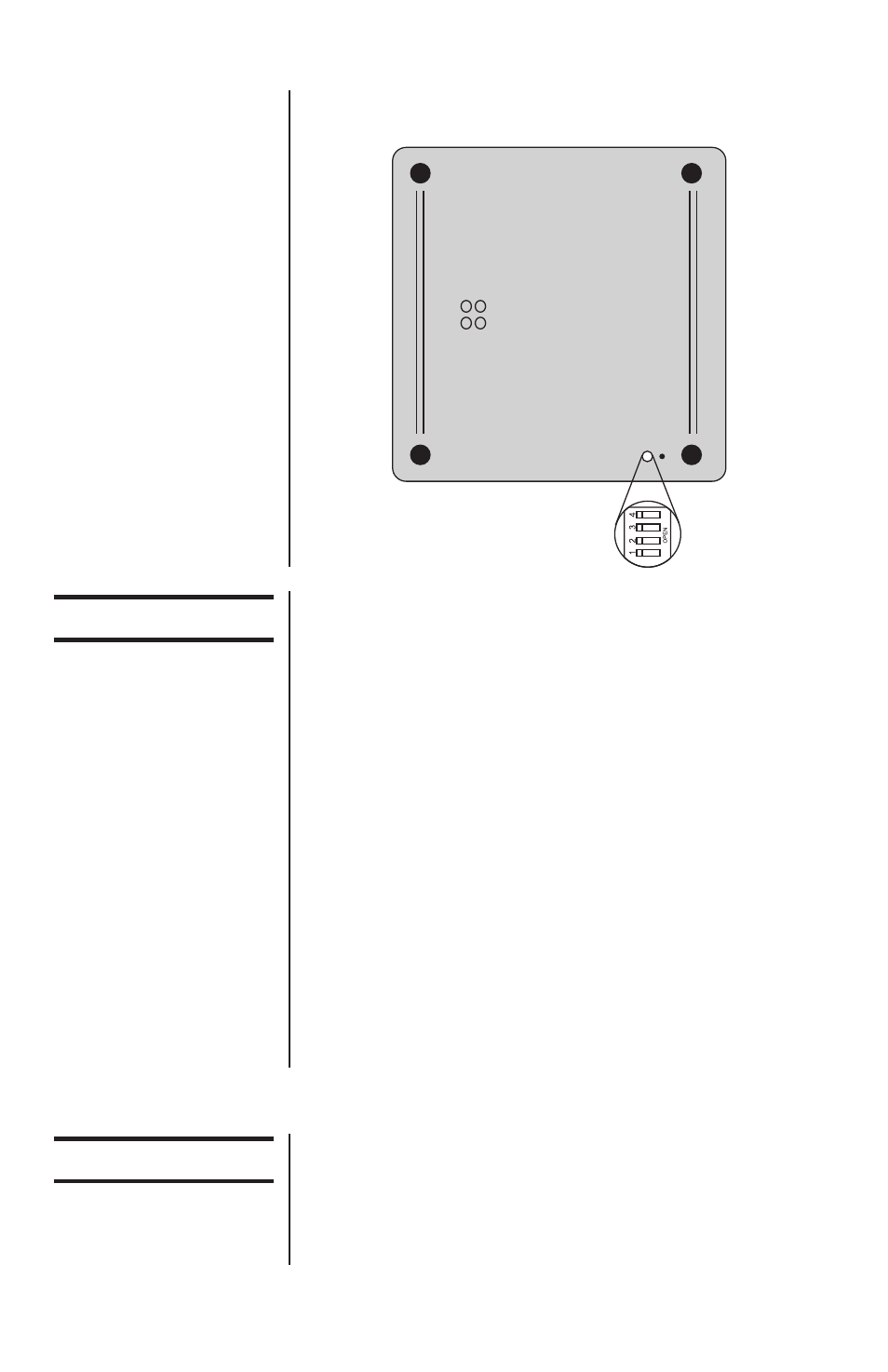

Bottom View of Models 7824, 7829, 7840,
7880 and 7885
Figure 2
7824, 7829, 7840,
7880, 7885 Switch
Location
Menu Mode
Gravity Mode
