Pressure regulator bore Manual link Electrical connector Signal pipe 1-2 accumulator
plate
Oil filter
bore
converter
solenoid
T.V. lever
& bracket Do not block
this hole
(servo vent)
Governor
cover
1-2 accumulator
housing
T.V. exhaust check ball
lifter rod
T.V. lever and bracket
assembly
T.V. Cable link
MAKE SURE THE VEHICLE IS RIG-
IDLY AND SECURELY SUPPORTED,
JACK STANDS, WHEEL RAMPS OR
A HOIST WORK BEST, DO NOT USE
JACKS ALONE. Have an oil drain pan
ready to catch oil and a tray on which to
put small parts so they won’t ge lost.
STEP 1. Position your drain pan be-
neath the transmission to catch the oil.
To remove the oil pan first remove all but
three bolts on the right hand side of the
pan. Next loosen but do not remove the
three remaining bolts. If the pan sticks
to the gasket, insert a flat screwdriver
between the pan and case and pry
down gently to break pan loose. Slowly
remove the remaining three bolts allow-
ing the pan to tilt down and drain.
Remove all gasket material from the
pan and case flange.
STEP 2. Remove the oil filter by gen-
tly pulling it straight down. The pickup
tube has an O-ring around the end that
fits into the pump housing. Sometimes
Fig. 2. T.V. Lever and Bracket.
2
C
C
C
C
C
C
C
D
D
C
C
A
D
B
C C
D
D
B
B

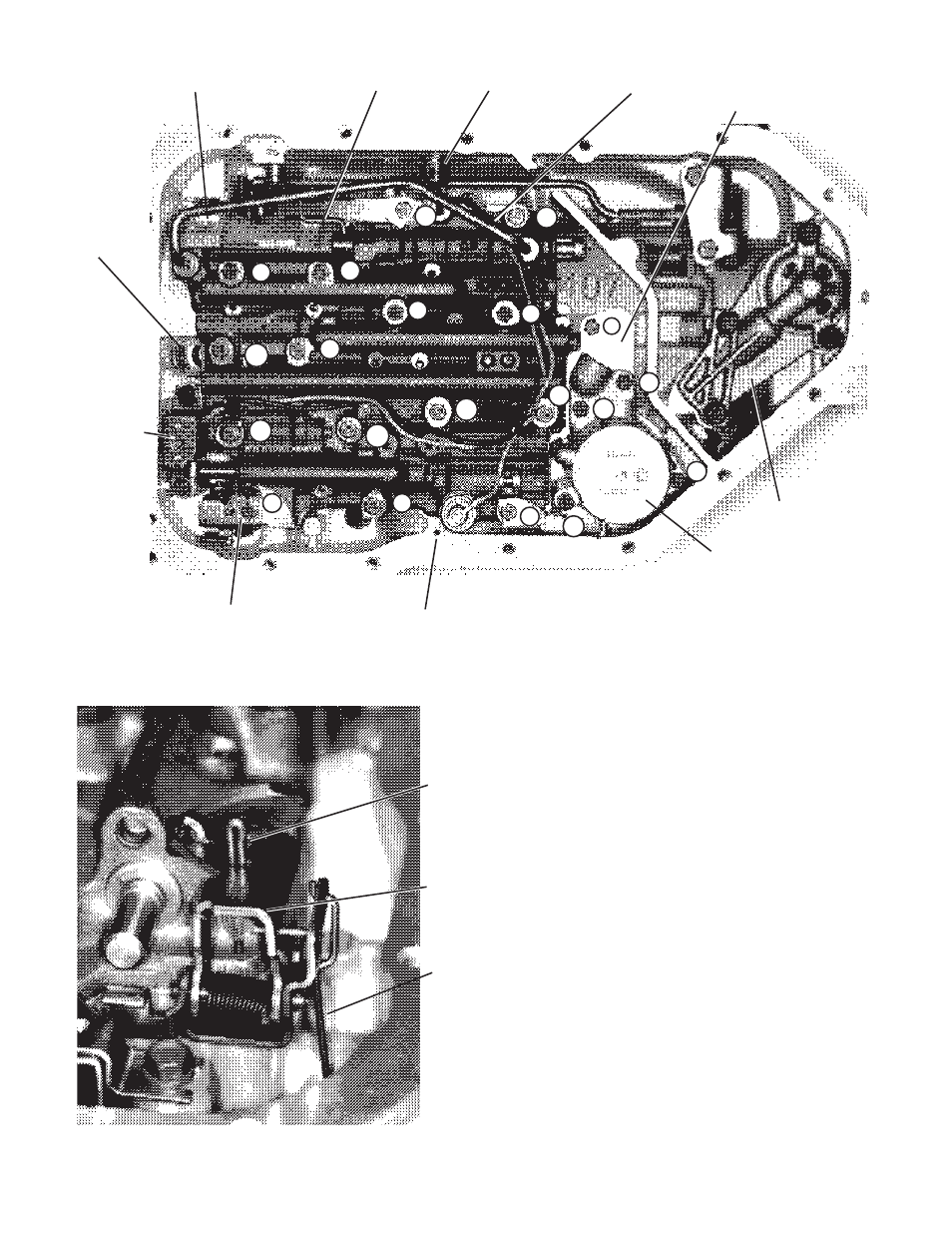

Fig. 1. Valve body and accumulator installed.
Bolt Lengths:
A. (1) 15.5 mm (0.61")
B. (3) 30.0 mm (1.17")
C. (11) 45.0 mm (1.76")
D. (5) 60.0 mm (2.34")
