Making the Connections
Before making the connection, make sure the power of all devices are turned off. If you are not sure
on where to connect, simply follow the illustrated connections below and also refer to the user
manual of the device you are connecting the AVer HVC with.
Make sure to connect all the connection before connecting the power.
C
C
o
o
n
n
n
n
e
e
c
c
t
t
i
i
n
n
g
g
a
a
M
M
o
o
n
n
i
i
t
t
o
o
r
r

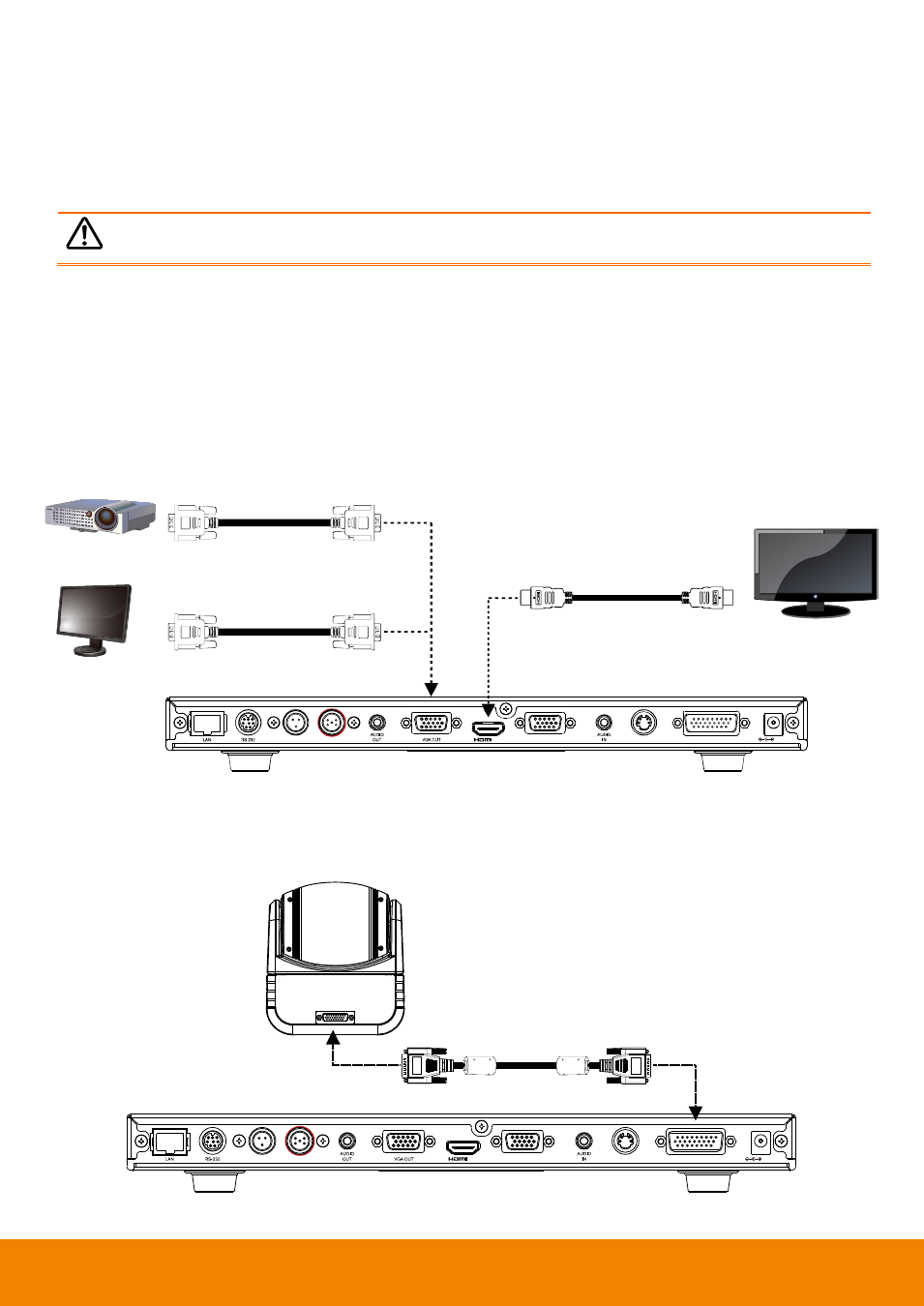

Locate the VGA/HDMI input port of the graphics display device and connect it to VGA OUT/HDMI
OUT port of AVer HVC. Both VGA OUT and HDMI OUT can be used at the same time. This allows
you to switch to Dual mode which splits the screen and displays the video conference signal on one
screen and present signal on the other screen.
VGA cable
LCD/DLP projector
LCD monitor/LCDTV
VGA cable
HDMI monitor
HDMI cable
VIDEO IN
DC19V
AUX MICIN
MICIN
OUT
CAMERAIN
VGA IN
C
C
o
o
n
n
n
n
e
e
c
c
t
t
i
i
n
n
g
g
t
t
h
h
e
e
c
c
a
a
m
m
e
e
r
r
a
a
t
t
o
o
m
m
a
a
i
i
n
n
s
s
y
y
s
s
t
t
e
e
m
m
Locate the CAMERA port of the camera and connect it to the CAMERA IN port of the HVC.
26 Pin-DSub cable
(female/female)
VIDEO IN
DC 19V
AUX MIC IN
MIC IN
OUT
CAMERA IN
VGA IN
