Attwood Toggle Switch User Manual

Toggle switch

Toggle Switch

7589
Installation Instructions

Attwood marine hardware, navigational lighting, bilge pumps, and other
marine accessories are specified more than any other brand by America’s
best-known boat manufacturers as original equipment. Look to Attwood
for quality replacement parts and marine accessories.

SAVE THESE INSTRUCTIONS

Form Number 69306 Rev. B

03-10

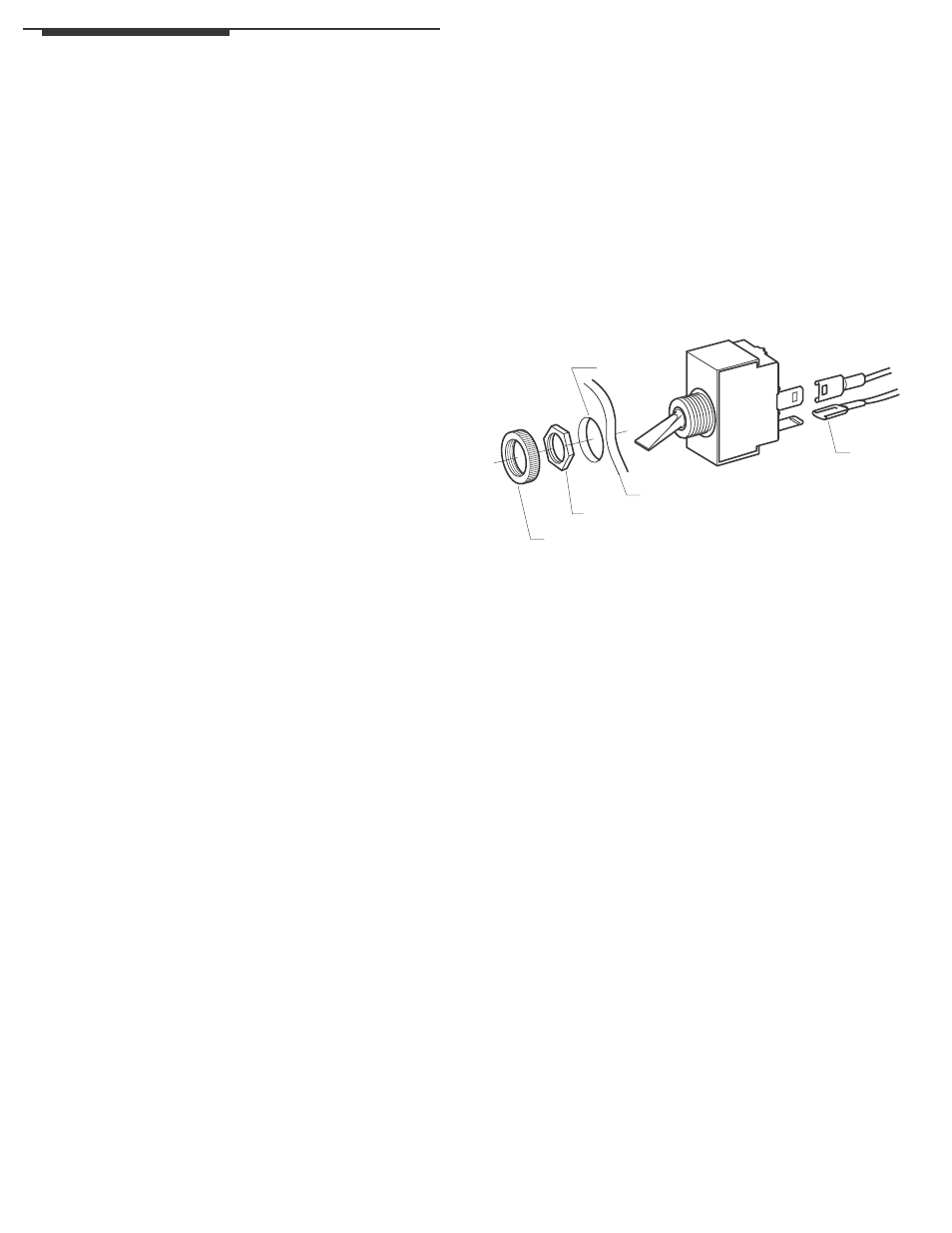

Figure 1

•

Knurled Nut

•

Chrome Nut

•

Panel:

¹⁄₈

" (3mm) Max.

•

⁷⁄₁₆

" (11mm)

Diameter

•

Spade
Terminal

MOUNTING INSTRUCTIONS
1. Insert power source wire and switched wire into provided spade

terminals. Crimp terminals with tool. Attach spade terminals to
switch terminals.

2. Remove knurled nut from switch shaft.

3. In desired location, drill

⁷⁄₁₆

" (11mm) diameter hole through dash

panel. From inside panel, insert shaft through hole.

4. Tighten knurled nut onto end of shaft. From inside, tighten

chrome nut against panel. Do not overtighten.

Note: All loads must be properly fuse protected.

REQUIRED FOR INSTALLATION
• Drill with

⁷⁄₁₆

" (11mm) dia. bit.

• Slotted screwdriver.
• Terminal crimpers.

APPLICATION
• Install switch in dashboards or panels up to

¹⁄₈

" (3mm) thick.

• Switch requires 1

⁵⁄₈

" (41mm) depth behind panel.

• Rated load is 5 amps.
