Using TV without Audio/Video inputs
(Australian Model)

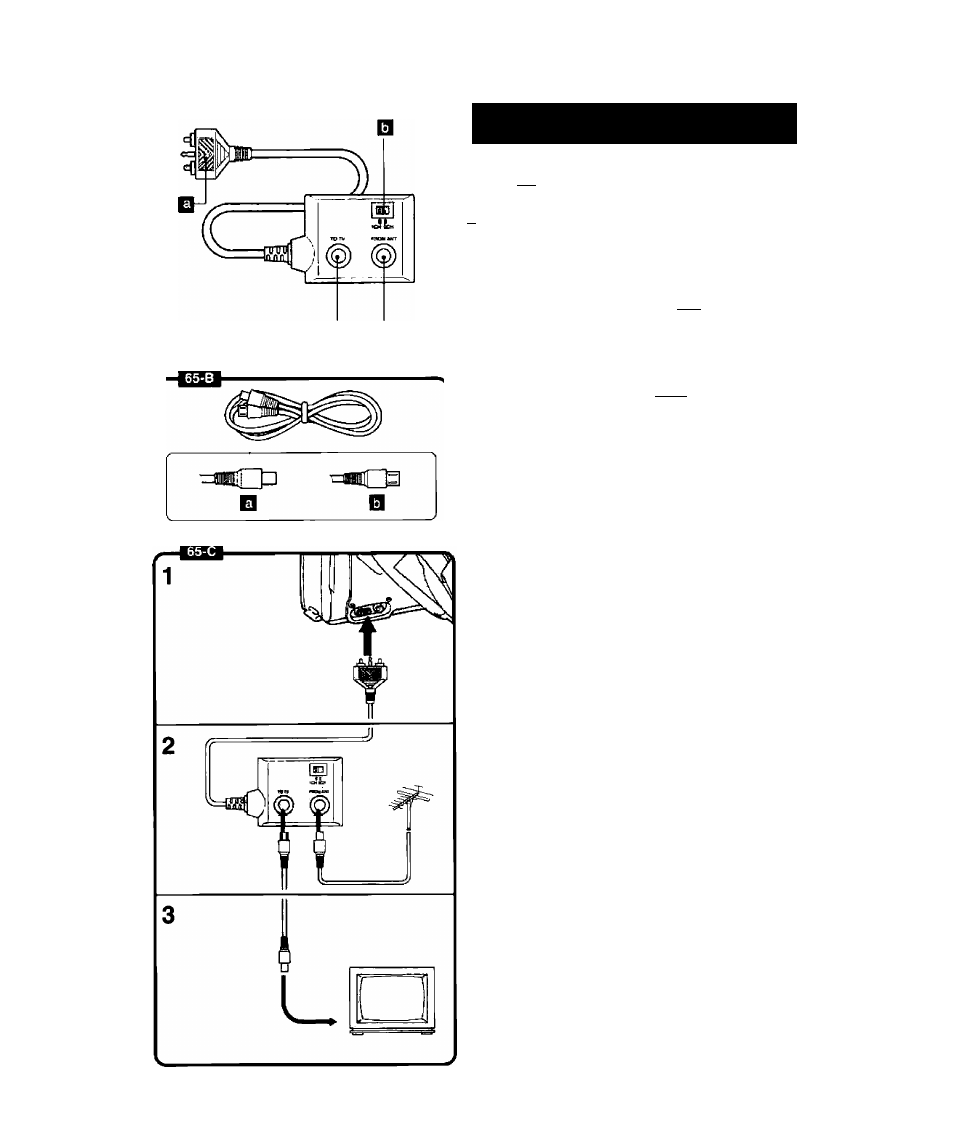

RU-100 Egl
Q Connection Plug
lil Video Channel Selector
H TO TV Terminal
Q FROM ANT. Terminal
Coaxial Cable with DIN-Connectors ■ mm
Q male
Q female
Connection Procedure Bga
1. Connect RF Unit to camera.
2. Attach aerial cable to FROM ANT.
terminal, and connect female
connector to TO TV terminal of RF
unit.
• Please note the difference between ‘male’
and ‘female’ type DIN-connectors on coaxial
cable.
3. Connect male connector to aerial
input of TV.
To View a Regular TV Programme
The RU-100 RF Unit has an automatic signal
selector which selects the signal from the video
camera whenever the camera is connected to the
RF unit and the power is turned on. To view a
regular TV programme, disconnect the camera
from the RF unit, or turn the camera off.
