Canon E 230 - Manual (Page 11)

^ Inserting Batteries into Wireless
Controller
The wireless controller operates on two
R03/AAA batteries.

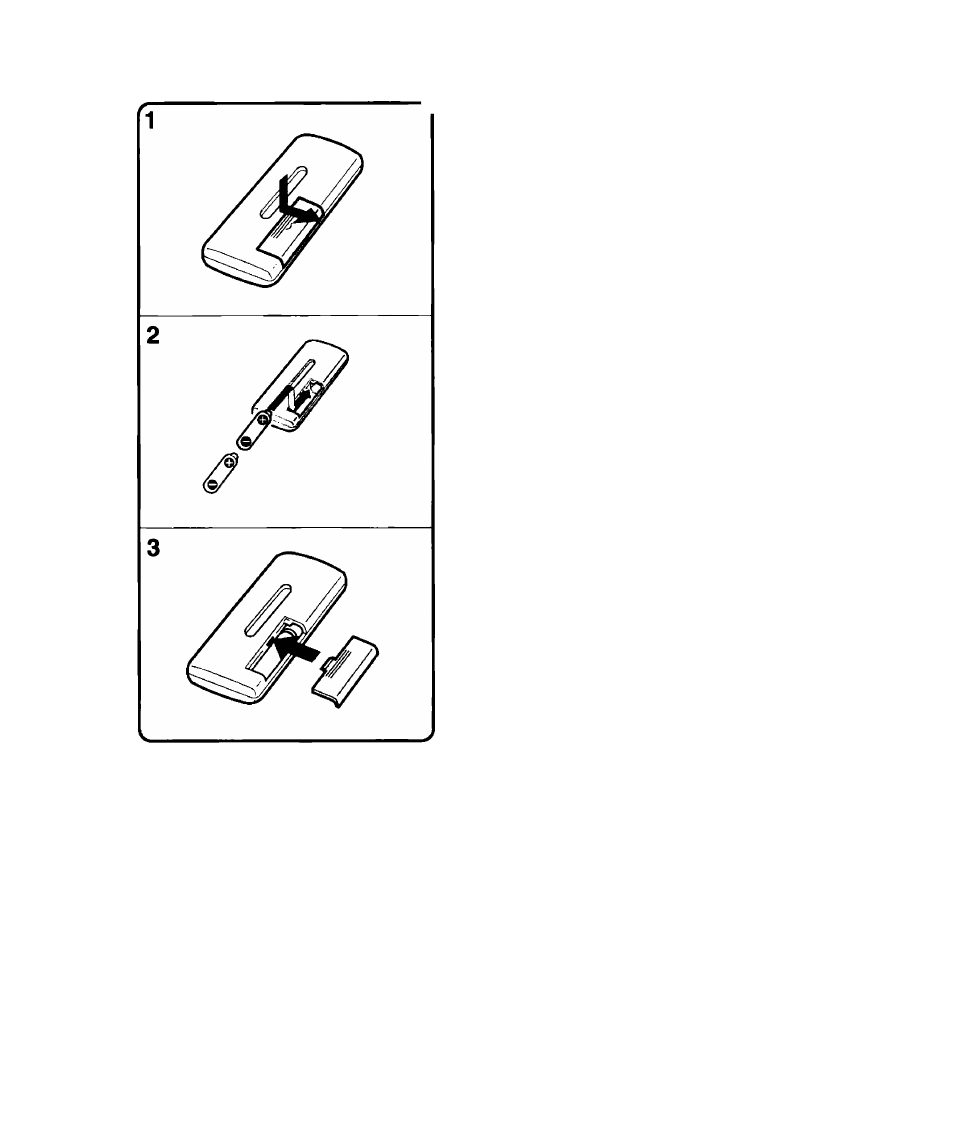

1. Remove cover from back by
pressing down and sliding in
direction of arrow.
2. Insert two R03/AAA batteries
following + and - markings.
Be careful not to reverse polarity
of batteries.
3. Repiace cover following guide
grooves.
00
m
T|
O
3)
m
c
Crt
z
o
Notes:
• Do not leave wireless controller exposed to direct sunlight or in hot or humid places.
• Autofocus function stops when remote sensor receives signal from wireless controller.
• Wireless controller uses infrared beams to transmit signals, so sunlight or fluorescent light on the
remote sensor may shorten operating distance.
• Wireless controller will not function if RS-60 Rain Shield is attached to the camera.
11
