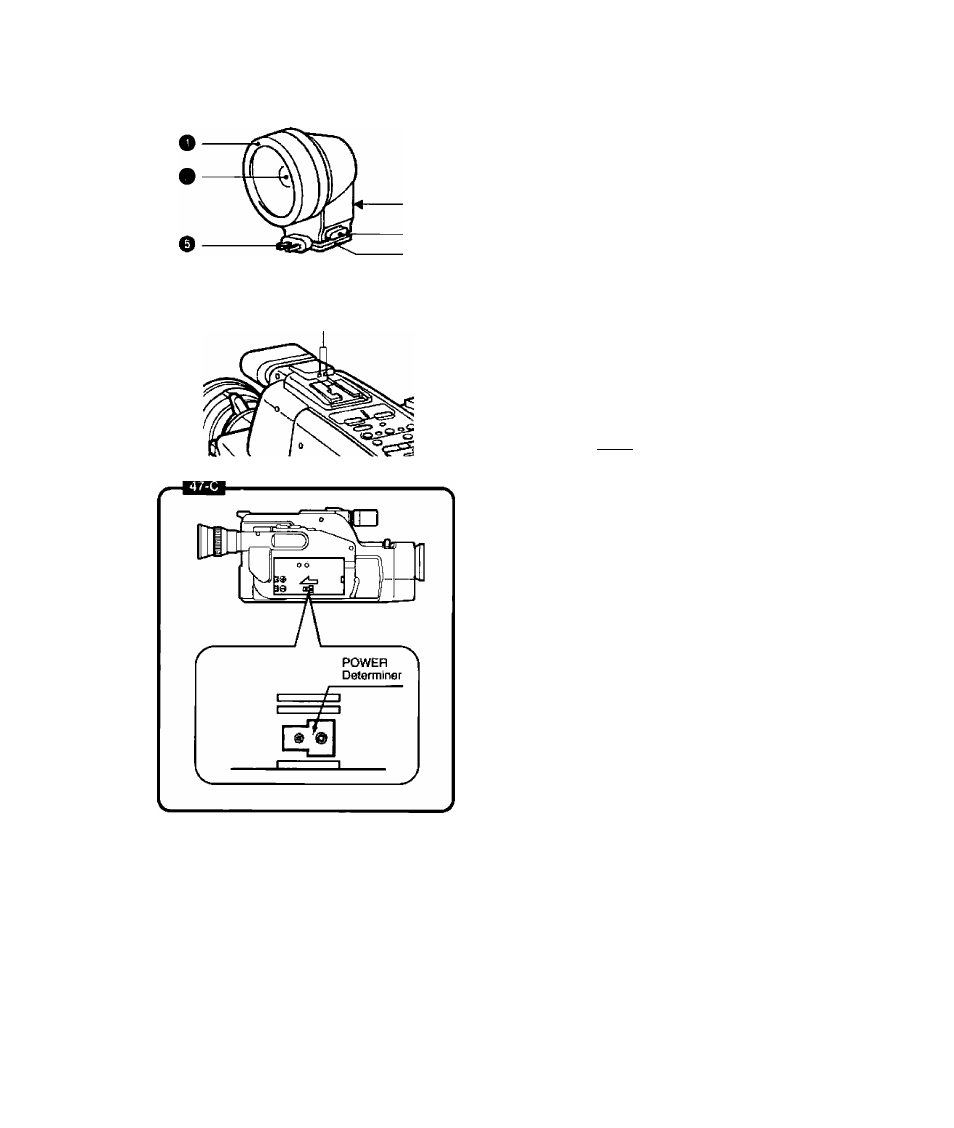

Protector
Halogen Bulb
Power Button (on back)
Lock Release Button
Plug
Shoe Attachment
Plug Receptacle
Caution -----------------------------------------------------------
• Only use the BP-E77K Battery Pack (or
BP-E722) with the video light. Do not use the
CA-100 Compact Power Adapter or the CB-110
Car Battery Adapter. Also, do not place tape or
adhesive over the power determiner (set to on),
otherwise the power supply may overheat and
cause a problem. Biffil
13
m
O
O
33
g
z
o
Notes:
• Be careful not to touch the bulb during or immediately after use; it becomes very hot. Keep the hot lamp
away from flammable or plastic materials.
• Do not position the RexiGrip at an angle greater than 45° above the camera, to avoid risk of damage due
to the heat generated by the light.
• During macro recording (p. 40), the camera body may partially obscure the light from the VL-7. Pay
attention to the lighting situation when shooting.
• Protect the video light from impact or vibration during use or the halogen lamp may bum out.
• Do not use the video light pointed downward for a long time.
• Ensure that no foreign material such as a metal fragment, etc., is in the plug receptacle. Be careful not to
deform the plug by using excessive force.
• When carrying the camera with the video light attached, be sure to support the camera body. Never carry
the camera by holding the video light.
47
