12
2-3. TOMEI TITANIUM MUFFLER TYPE-80 INSTALLATION
① MAIN PIPE A ⑧ CLAMP BAND 【25.0 N・m (2.6 kgf-m)】
② MAIN PIPE B ⑨ SPRING
③ TYPE-80 SILENCER ⑩ SILENCER BAND
④ GASKET ⑪ SILENCER BAND RUBBER
⑤ FLANGE BOLT M8 L=35mm ⑫ SOUND REDUCER
⑥ FLANGE NUT M8 【20.0～28.0 N・m (2.0～2.9 kgf-m)】 ⑬ BUTTON BOLT M6 【8.0～12.0 N・m (0.8～1.2 kgf-m)】
⑦ FLANGE BOLT M8 L=25mm
* Apply the bolt smooth paste that is supplied in the kit to
prevent metal burns and seizures to the bolts and nuts.
【INSTALLATION PROCEDURE】
1. Use the supplied gasket, bolts and nuts for fitting the Main pipe A to the catalytic converter.
Install the pipe with the stopper facing up.
※ Use Gasket (Ref ④) M8 Flange Bolt (Ref ⑤) M8 Flange Nut (Ref⑥).
2. Fit the clamp band on the Main Pipe B, then keep the pipes parallel to each other so the springs
hooks will be aligned with each other. Do this before inserting the main pipe B to the Main Pipe A.
Then you fit the muffler hanger as well.
※ Use the supplied Clamp Band (Ref⑧).
3. Fit the clamp band on the Silencer, then keep the pipes parallel with each other to align the spring
hooks. Do this before inserting the Silencer to Main Pipe B. Then fit the hangeras well.
※ Use the supplied Clamp Band (Ref⑧).
The mufflers Tomei Logo is to be installed facing down to the ground.
4. Place the Silencer Rubber onto the Silencer Band, and carefully install on the silencer body.
Then install onto the exhaust hanger. Contact with rough surfaces may damage the silencer.
※ Use the supplied Silencer Band (Ref ⑩) & Silencer Band Rubber (Ref ⑪)
Flange Bolt M8 (Ref ⑦) Flange Nut M8 (Ref ⑥).
①
② ③
< Kit Contents Torque Specs >
⑥ ⑦
④
⑤
⑩
⑧

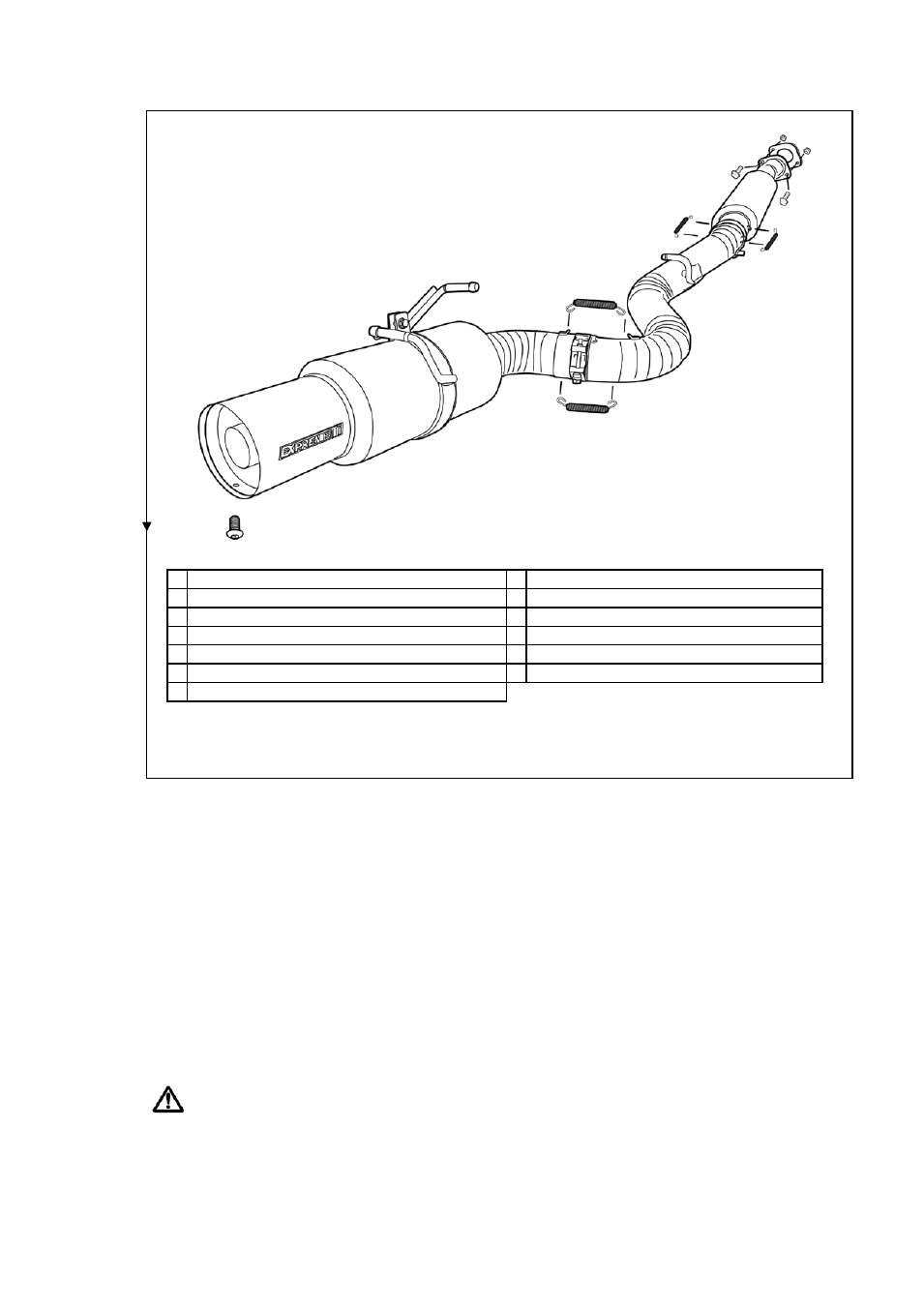

【 Parts Assembly Positions 】
Points of use, product placement.
⑫
⑬
⑪
⑨
⑨
⑧
⑨
⑨
⑤
⑥
⑥
