10
2-1. TOMEI TITANIUM MUFFLER TYPE-60R INSTALLATION

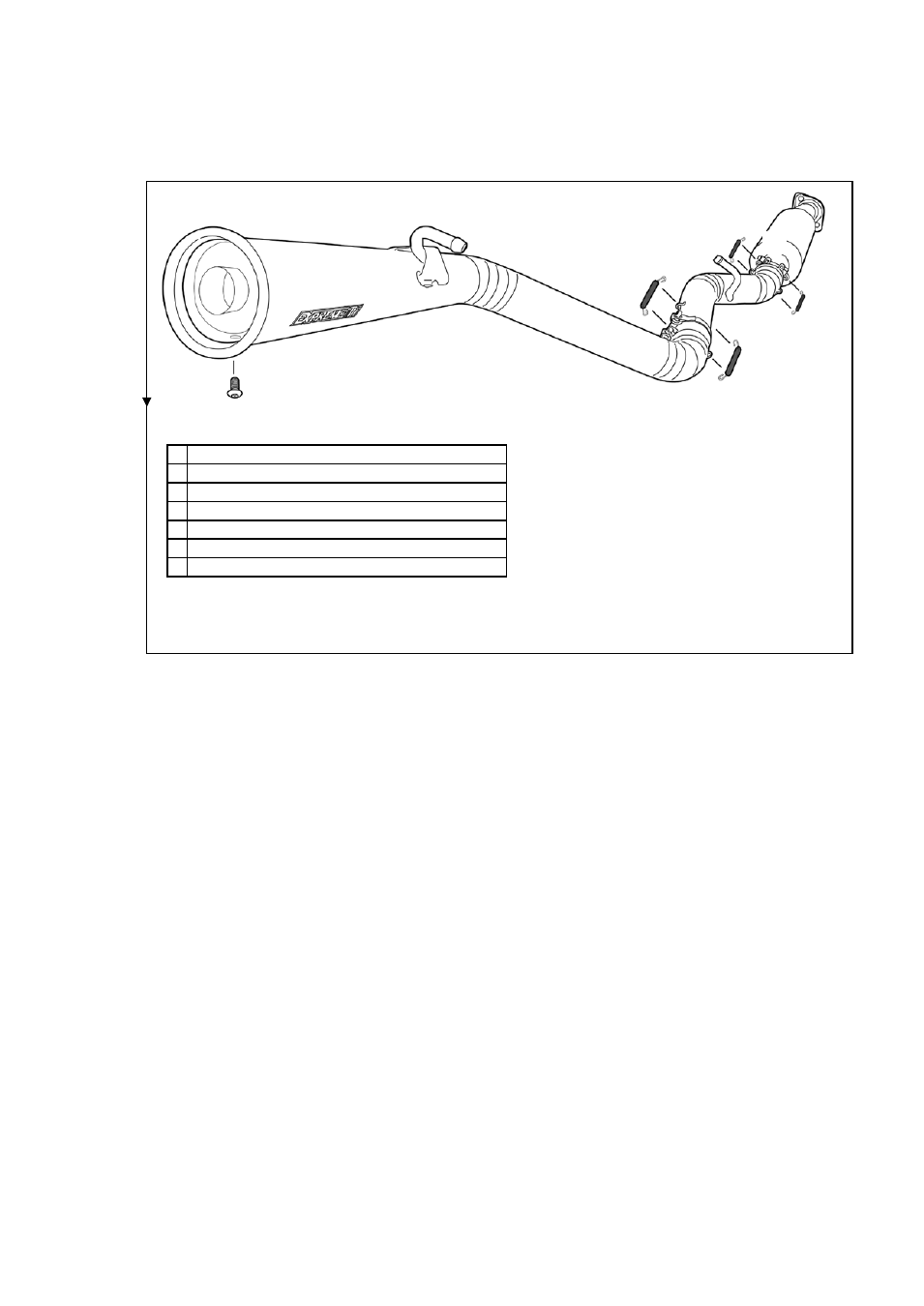

【Illustration of the mounting position of each parts】
The installation of the included parts in the kit is shown below.
When installing TYPE-60R/60S, the stock gaskets & springs are to be reused.
① MAIN PIPE A
② MAIN PIPE B
③ TYPE-60R TAIL PIPE
④ CLAMP BAND 【 16.0 N.m (1.63 kgf-m) 】
⑤ SPRING
⑥ SOUND REDUCER
⑦ BUTTON BOLT M6 【 8.0～12.0 N・m (0.8～1.2 kgf-m) 】
* Apply the bolt smooth paste that is supplied in the kit to
prevent metal burns and seizures to the bolts and nuts.
【INSTALLATION PROCEDURE】
1. Use the stock bolts and nuts for fitting the Main pipe A to the catalytic converter.
Install the pipe with the stopper facing up.
2. Fit the clamp band on the Main Pipe B, then keep the pipes parallel to each other so the springs
hooks will be aligned with each other. Do this before inserting the main pipe B to the Main Pipe A.
Then you fit the muffler hanger as well.
※Use the supplied Clamp Band (Ref ④).
3. Fit the clamp band on the tail pipe, then keep the pipes parallel with each other to align the spring
hooks. Do this before inserting the tail pipe to Main Pipe B. Then fit the hangeras well.
※Use the supplied Clamp Band (Ref ④).
①
②
③
④
< Kit Contents Torque Specs >
⑥
⑦
④
⑤
⑤
⑤
⑤
