CS SERIES
Control Components
CS SERIES Control System Components
The CS SERIES Control System for the Taylor-Wharton Cryostorage freezer consists of
the following components:
• Main Control Module
• VFD (Vacuum Florescent Display) Module
• Shielded Display Cable
• Wiring Harness Assembly
• Power Supply
• Thermocouple Assembly (Optional Second Thermocouple)
• Sensor Assembly
• Cryogenic Solenoid Valve
• Remote Alarm Plug
• Lid Switch Assembly
• 12 Volt, 18aH battery
• Solenoid Valve Assembly with Freezeguard
• Strainer
The CS SERIES Control System is assembled onto the freezer at the factory and
completely tested. Refer to the
Quick Start Guide for freezer set-up. Start operation
of the control system by plugging the power cord into the wall outlet. Press and hold
the POWER button for 2 seconds. The CS SERIES Control System will go through
a short startup routine and then start operation. Refer to Figure 2.0 below CS200
Controller Display for a description of the controller’s navigation buttons.

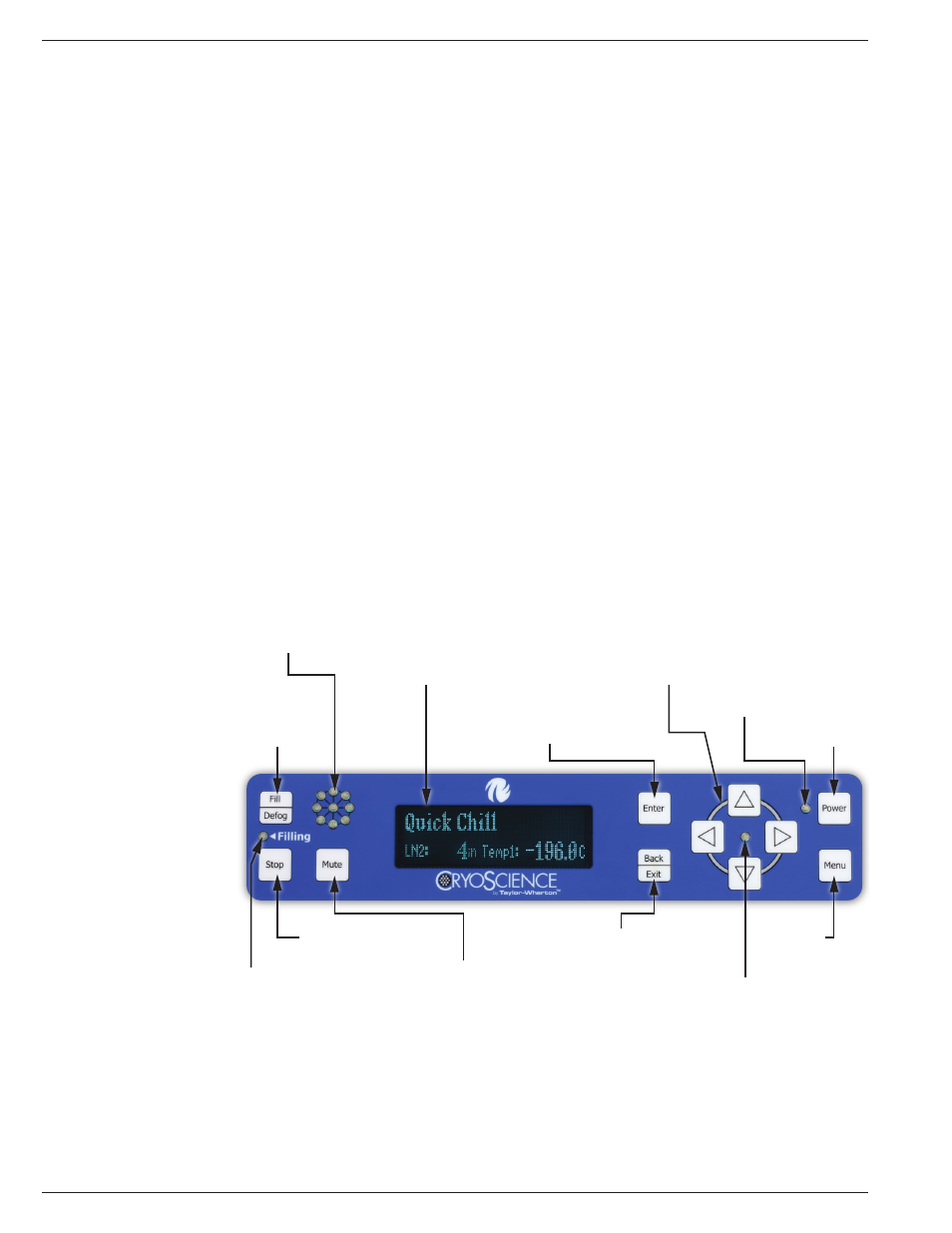

CS200 Controller Display Guide
Status Wheel VFD Graphics Display
Shows information
about the Freezer Directional Buttons
Increment/decrement values or allow
movement through the menu system
Enter button “selects”
a Menu choice or setting
Power Indicator
Power On/Off
Fill Button
Used to Open
the Valve
Valve Indicator lights
if the Valve is Open
Stop Button used
to Close the Valve
Mutes the
Audible Alarm
Back Button moves
out of Menu System
or leaves current
Setting unchanged
Menu Indicator
Enter/Exit
Menu System
Figure 2.0 CS200 Controller Display
