Page 59

NOTE:

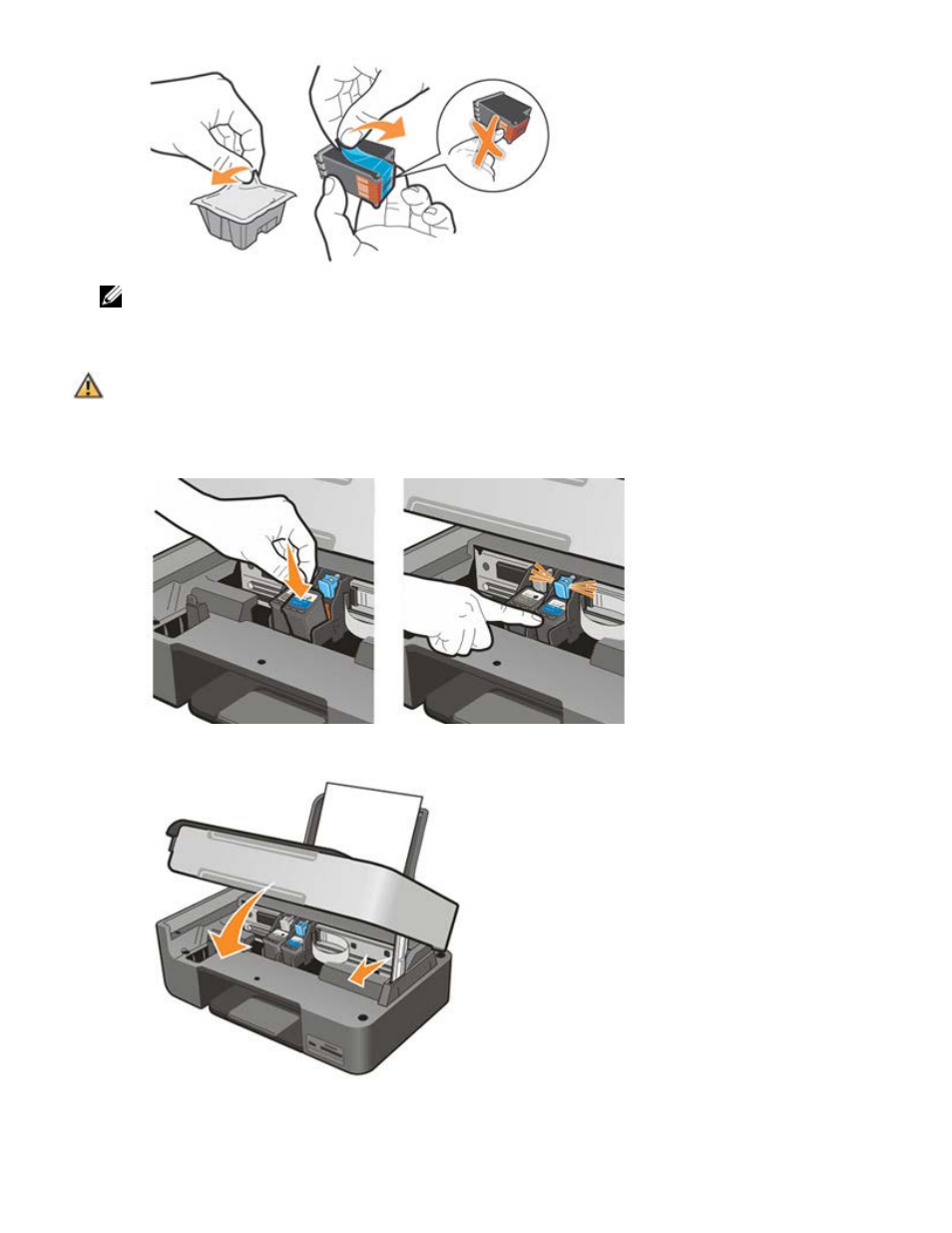

The illustration above shows a colour ink cartridge. The replacement procedure is the same for black and photo

cartridges.

6. Insert the new ink cartridge.

CAUTION: Ensure that the black or photo ink cartridge is fixed securely in the left ink cartridge carrier, and the

colour ink cartridge fixed securely in the right carrier.

7. Press the new ink cartridge in until it locked in place by the securing tab.

8. Raise the scanner unit and move the support arm forward. Lower the unit carefully until it is completely closed.

Aligning Ink Cartridges

The ink cartridges are aligned automatically by the printer every time a new cartridge is installed. However you may
