Replacing Memory Module(s)
Dell Studio XPS™ 435T/9000 Service Manual
1. Follow the procedures in Before You Begin .
2. Remove the computer cover (see Replacing the Computer Cover ).
3. Locate the memory modules on the system board (see System Board Components ).
4. Press out the securing clip at each end of the memory module connector.
5. Grasp the module and pull it upwards.
If the module is difficult to remove, gently ease the module back and forth to remove it from the connector.
6. Ensure that you install a single memory module in DIMM connector 1 (blue connector), the second closest connector to the processor, before you install
modules in any other connector.
7. Align the notch on the bottom of the module with the tab on the memory module connector.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

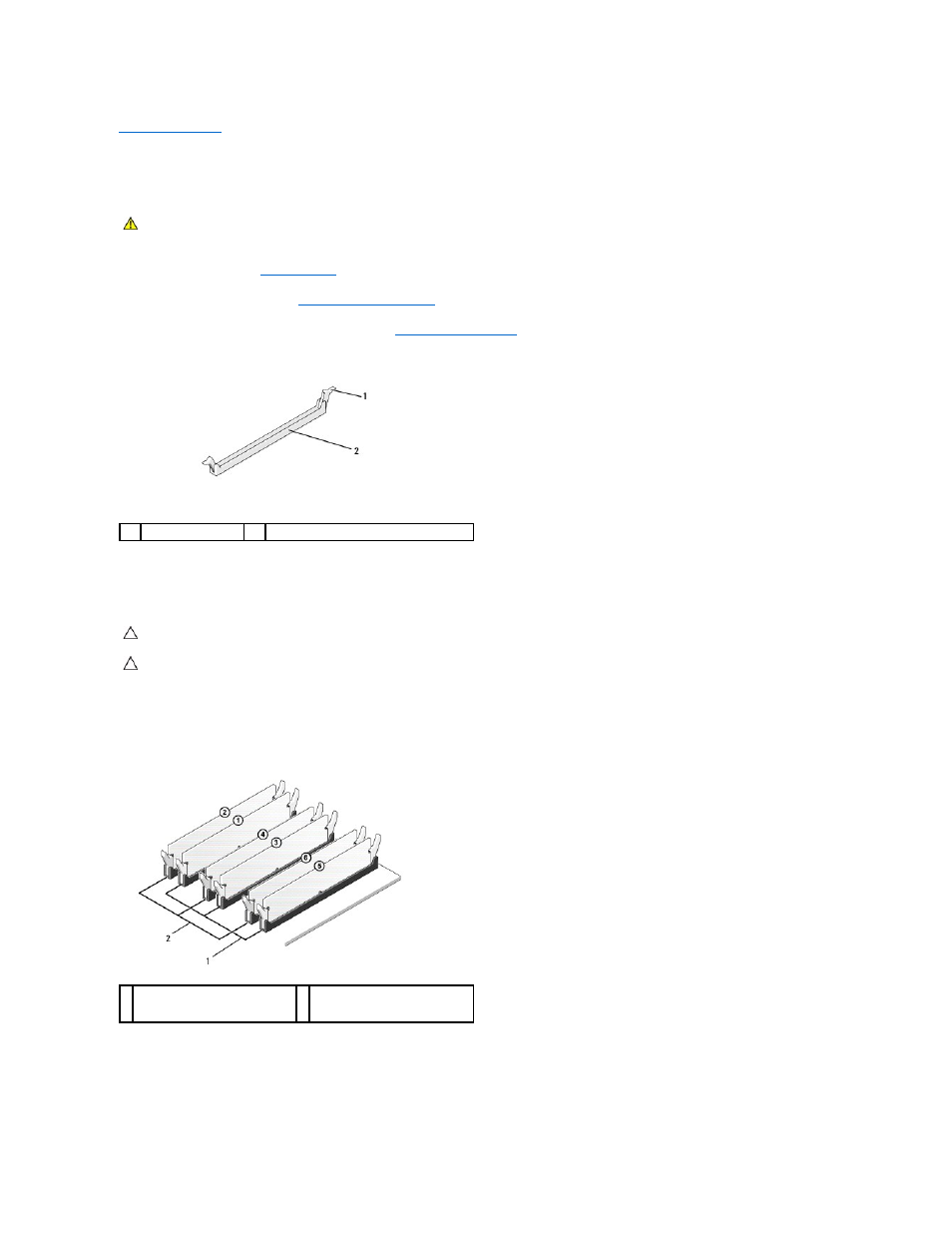

1 securing clip 2 memory module connector
CAUTION: Do not install ECC memory modules.
CAUTION: If you remove your original memory modules from the computer during a memory upgrade, keep them separate from any new
modules that you may have, even if you purchased the new modules from Dell™. If possible, do not pair an original memory module with a new
memory module. Otherwise, your computer may not start properly. The recommended memory configurations are:
Matched memory modules installed in DIMM connectors 2, 4, and 6 and another matched memory modules installed in DIMM connectors 1, 3, and
5.
1 matched memory modules in
connectors DIMM_1, DIMM_3, and
DIMM_5 (blue connectors)
2 matched memory modules in
connectors DIMM_2, DIMM_4, and
DIMM_6 (pink connectors)
