Installing System Components

57

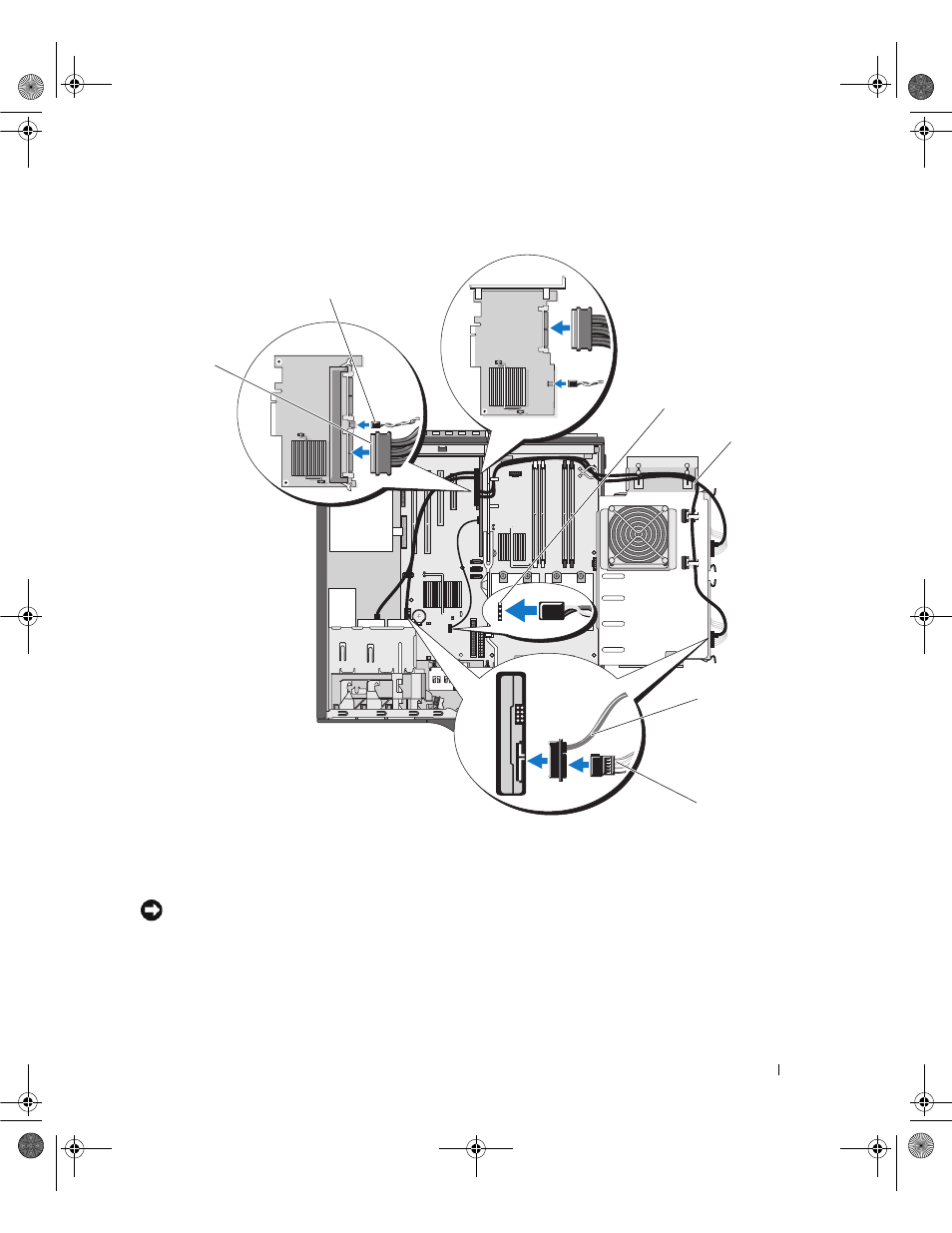

Figure 3-12.

Cabling a Third or Fourth Hard Drive

NOTICE:

If metal shields are present in your system configuration, they must be installed at all times while your

system is in use or your system may not function properly.

13 If metal shields are present in your system, install the vented metal insert over the flex bay and the

empty space beneath it:

a

Insert the metal insert’s two upper screws and its two lower screws into the corresponding slots
inside the flex bay.

1

SAS cable

2

hard-drive activity indicator
cable

3

AUX_LED connector

4

long SAS data cables (2)

5

SAS data cable

6

power cable

1

2

3

4

5

6

book.book Page 57 Monday, June 5, 2006 1:51 PM
