Installing System Components
61

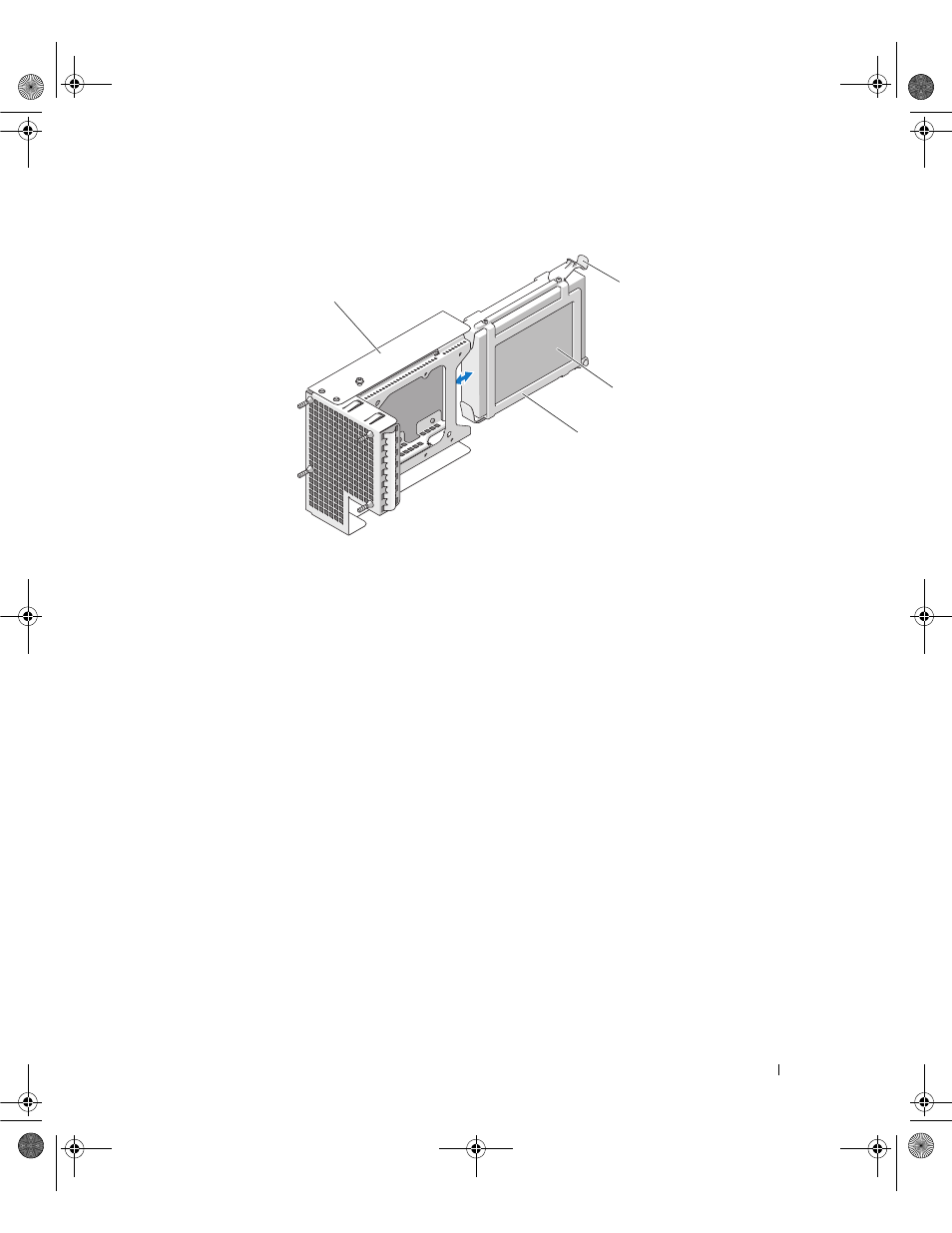

Figure 3-14. Installing a Fourth Hard Drive in the Optional Hard-Drive Carrier
11 Carefully insert the drive carrier into the lower 5.25-inch drive bay, passing the fan cable through the
opening on the bottom of the drive bay, and slide the drive carrier far enough into the system to access
the connectors on the back of the drive.
12 Attach the power and data cables to the hard drive. See Figure 3-12.
13 Gently slide the drive into place until you hear a click or feel the drive securely installed.
14 Route the fan cable over the card fan and through the plastic clips on the bottom of the system chassis,
as shown in Figure 3-15. Connect the fan cable securely to the FAN_HDD connector on the system
board. See Figure 3-15 and Figure 6-2.
1 optional hard-drive carrier 2 drive release tabs (2) 3 hard drive
4 hard-drive bracket
1
2
4
3
