9
LEGEND
TXV — Thermostatic Expansion Valve
NOTES:
1. Dimensions in [ ] are in millimeters.
2. Direction of airflow.
3. Recommended clearance:
• Rear: 3 in. (76 mm)
• Front: 2 ft, 6 in. (762 mm)
• Right Side: 2 ft, 6 in. (762 mm)
• Left Side: 2 ft, 6 in. (762 mm)
• Local codes or jurisdiction may prevail.
4. Liquid piping not supplied by Carrier.
5. Duct flange is factory supplied and field
installed.
6. 40RMS units may require alternate or addi-
tional field-fabricated piping access holes.
UNIT
UNIT WEIGHT
lb (kg)
40RM007 381 (173)
40RM008 385 (175)
40RM012 405 (184)
40RMQ008 385 (175)
40RMQ012 427 (194)
40RMS008 390 (177)
40RMS010 391 (177)
40RMS012 391 (177)

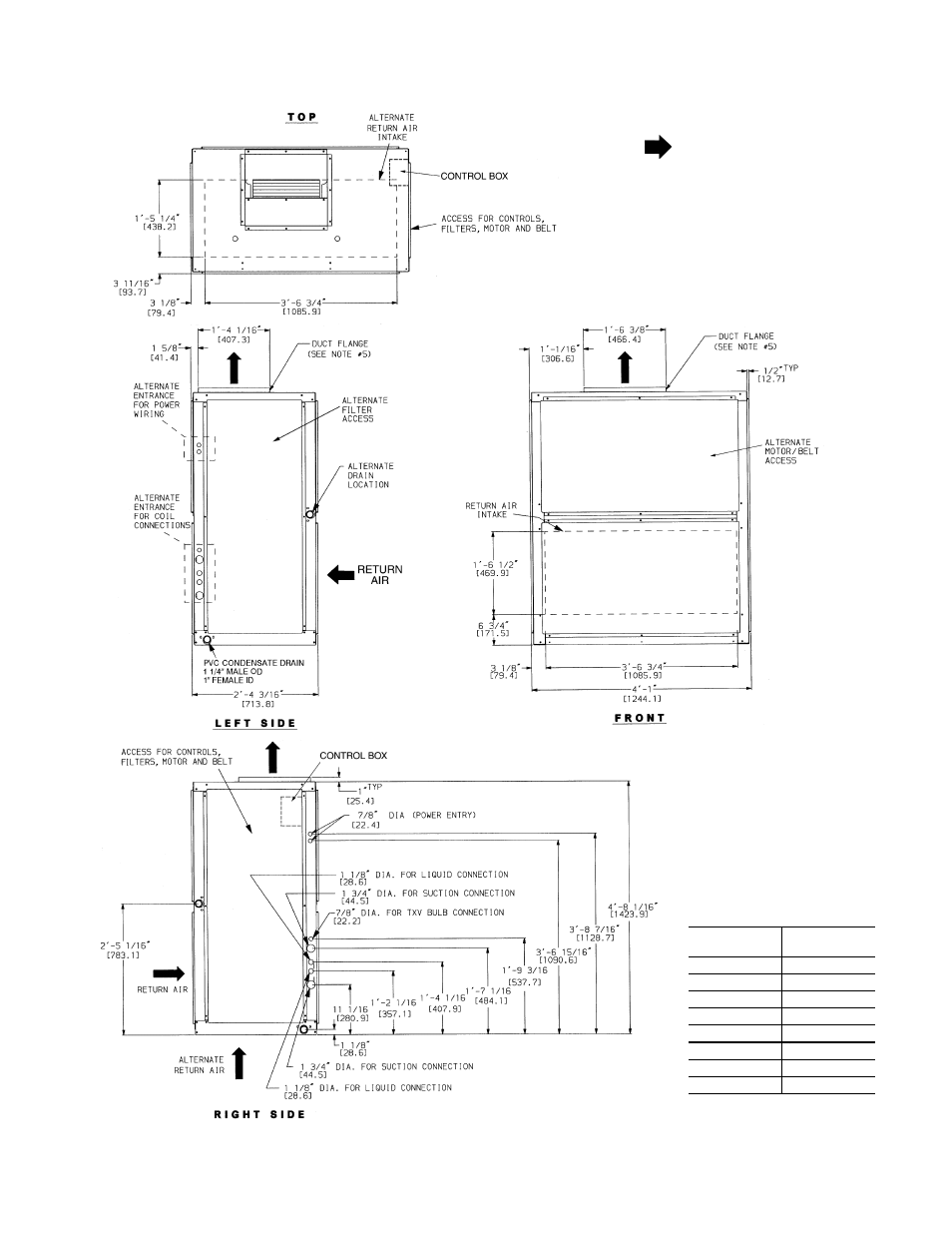

Fig. 1A — Dimensions — Sizes 007-012
