12

40RM –

Commercial Packaged

Air Handler

40RM

016

– –

B

5

0

1

GC

Cooling Coil

– –

Direct Expansion

Q –

Direct Expansion for Heat Pump Duty

S –

Chilled Water

Not Used

Expansion Device
– –

None (40RMS)

B –

Thermostatic Expansion Valves (40RM, 40RMQ)

H –

TXV with High Capacity, 4 Row Coil

Factory-Installed Options
GC –

Unpainted, Standard Motor,

and Standard Drive

HC –

Unpainted, Standard Motor,

and Medium-Static Drive
(Not available for 60 Hz 028 size
or 50 Hz 016-028 sizes)

TC –

Unpainted, Alternate Motor,

and Medium-Static Drive
(60 Hz 028 size and
50 Hz 016-028 sizes)

YC –

Unpainted, Alternate Motor, and

High-Static Drive*

ED –

Painted, Standard Motor, and

Standard Drive

FD –

Painted, Standard Motor, and

Medium-Static Drive
(Not available for 60 Hz 028 size
or 50 Hz 016-028 sizes)

RD –

Painted, Alternate Motor, and

Medium-Static Drive
(60 Hz 028 size and
50 Hz 016-028 sizes)

WD –

Painted, Alternate Motor,

and High-Static Drive*

Packaging
1 –

Standard Domestic

3 –

Standard Export

Revision Number
0 –

Original

Nominal Capacity – Tons (kW)
007 –

6 (21)

016 –

15 (52)

008 –

7-1/2 (26)

024 –

20 (70)

010 –

8-1/2 (29)

028 –

25 (87)

012 –

10 (35)

034 –

30 (105)

014 –

12-1/2 (43)

Voltage Designation (V-Ph-Hz)
1 –

575-3-60

8 –

230-3-50

3 –

208/230-1-60

9 –

400-3-50

(007-010 sizes only)

5 –

208/230-3-60

6 –

208/230/460-3-60 (all sizes 007-014;
size 016 except YC and WD options)
460-3-60 (sizes 016 with YC or WD options
and all size 024-034 units)

LEGEND

TXV —

Thermostat Expansion Valve

*YC and WD option codes for all 034 size units and 008, 010 size units with 208/230-1-60

power designate standard motor and high-static drive.

NOTE: See the following table for the sizes available for each unit.

UNIT

007

008

010

012

014

016

024

028

034

40RM

X

X

X

X

X

X

X

X

40RMQ

X

X

X

X

X

40RMS

X

X

X

X

X

X

X

X

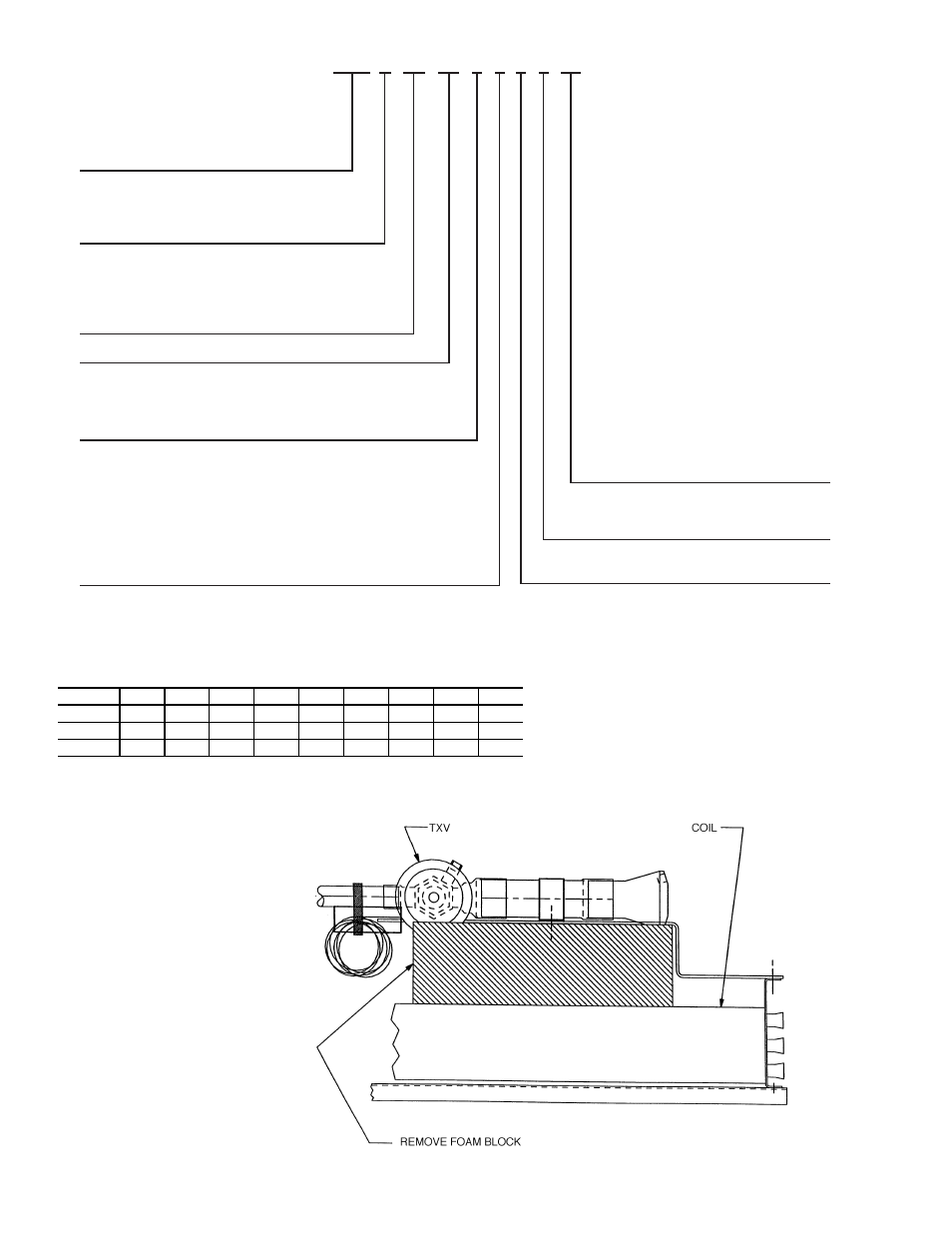

Fig. 2 — Model Number Nomenclature

Fig. 3 — Foam Block Location

LEGEND

TXV —

Thermostatic Expansion Valve
