10

LEGEND

TXV —

Thermostatic Expansion Valve

NOTES:
1. Dimensions in [ ] are in millimeters.

2.

Direction of airflow.

3. Recommended clearance:
• Rear: 3 in. (76 mm)
• Front: 2 ft, 6 in. (762 mm)
• Right Side: 2 ft, 6 in. (762 mm)
• Left Side: 2 ft, 6 in. (762 mm)
• Local codes or jurisdiction may

prevail.

4. Liquid piping not supplied by Carrier.
5. Duct flange is factory-supplied and

field-installed.

6. 40RMQ016,024 and 40RMS units may

require alternate or additional field-
fabricated piping access holes.

UNIT

UNIT WEIGHT

lb (kg)

40RM014

670 (304)

40RM016

685 (311)

40RM024

690 (313)

40RMQ016

713 (323)

40RMQ024

720 (326)

40RMS014

661 (300)

40RMS016

677 (307)

40RMS024

683 (310)

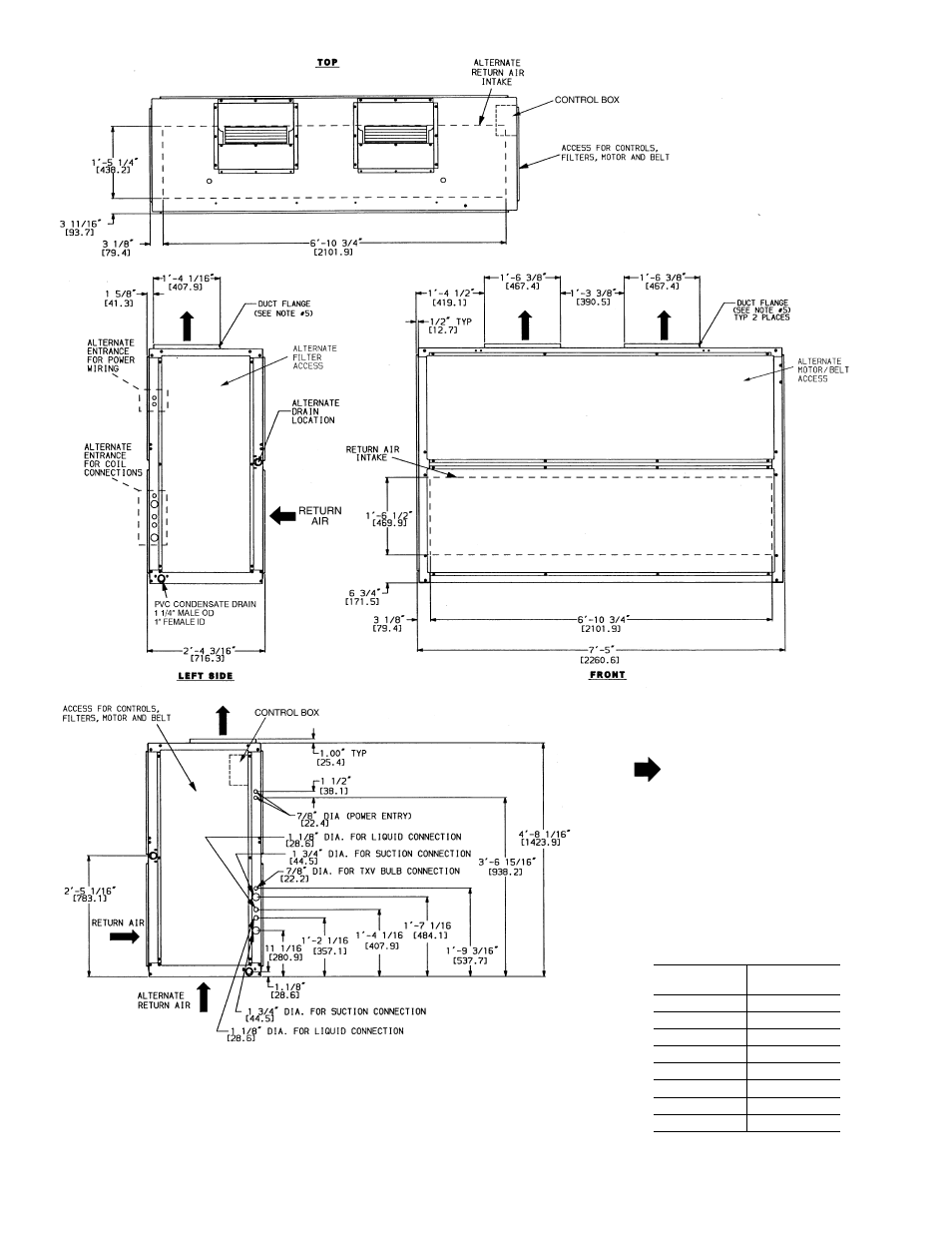

Fig. 1B — Dimensions — Sizes 014-024
