1

Metal tab

2

Cylinder part

Remove any packaging from the new charge roll.

10.

NOTICE:

Do not touch the cylinder part of the charge roll when installing the unit. You may touch the

metal tabs on each end to help you in the installation. Touching the cylinder part will contaminate the
charge roll and affect printing.

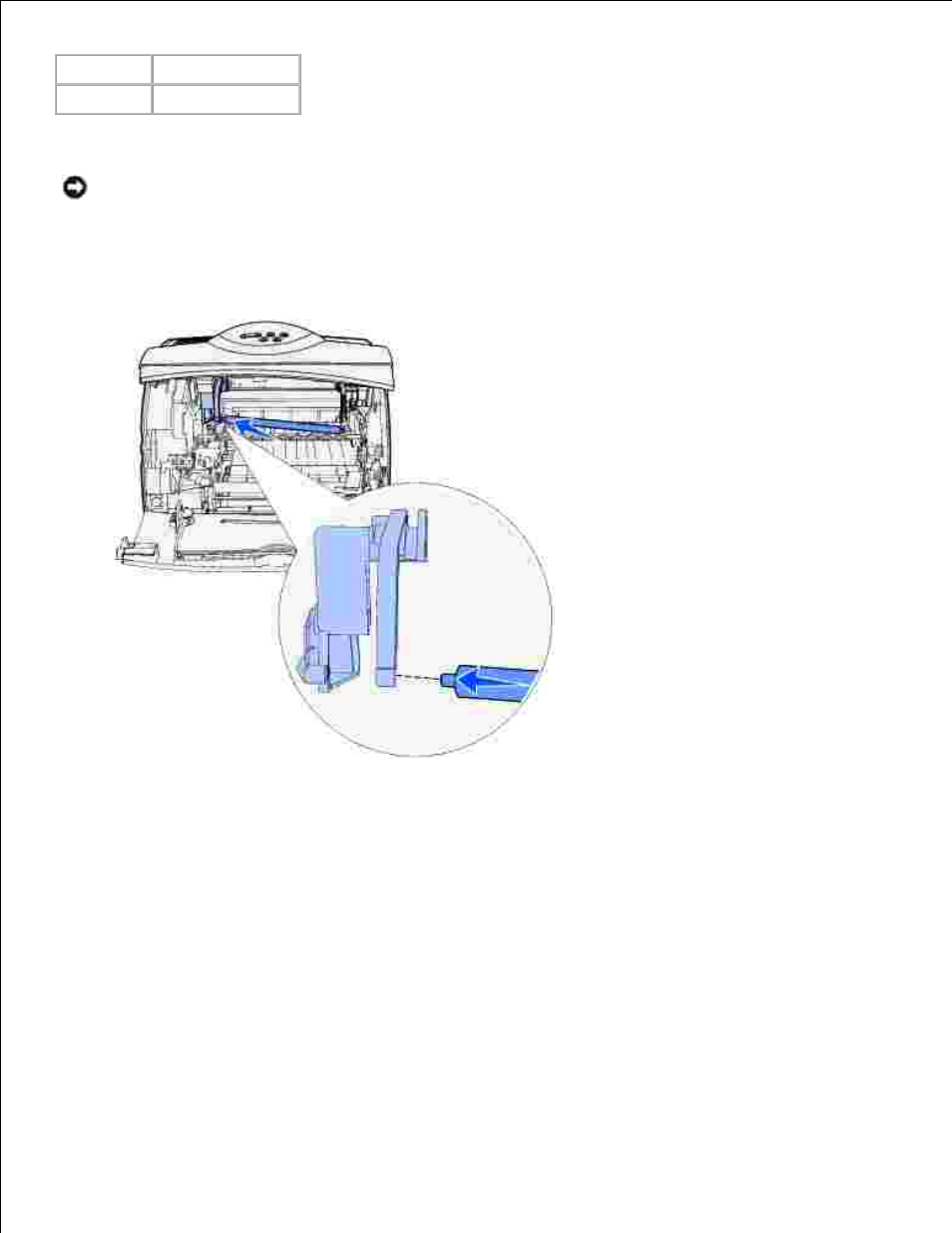

Align the metal tab on the left side of the new charge roll with its hole and insert it.

11.

Raise the right side of the charge roll.

12.

Push the arm-like tab with the right arrow label on it to the right.

13.

Lift the right side of the charge roll and insert it into its hole.

14.
