1 201 Paper Jam

5 23x Paper Jam

2 200 Paper Jam

6 24x Paper Jam

3 260 Paper Jam

7 23x Paper Jam

4 250 Paper Jam

8 202 Paper Jam

Accessing jam areas

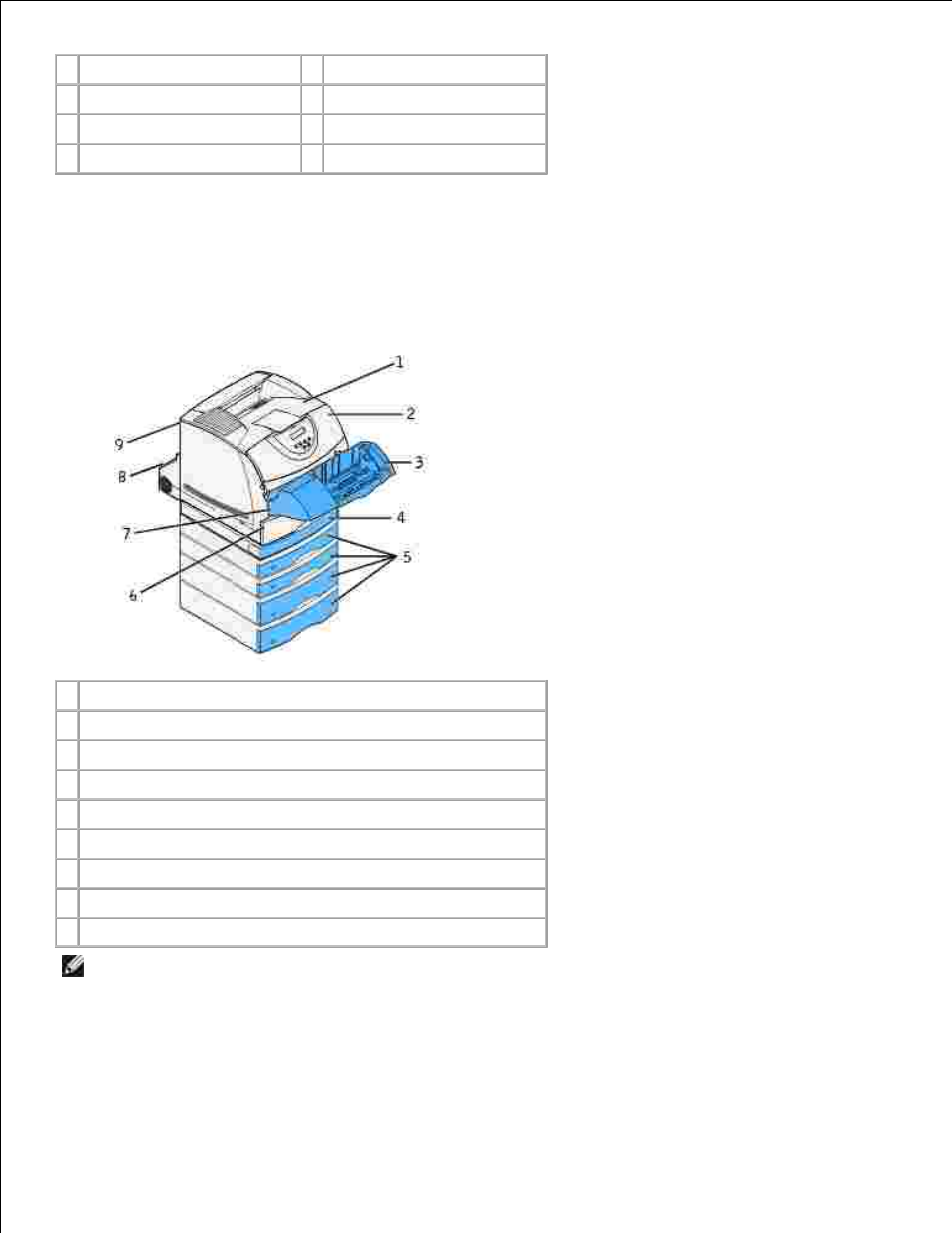

Open doors and covers, remove trays, and remove options to access jam areas. The illustration shows the
location of sources and possible jam areas.

1 Standard output bin

2 Upper front door

3 Optional envelope feeder

4 Optional duplex unit, front access cover

5 Optional trays

6 Standard tray

7 Lower front door (down when envelope feeder is installed)

8 Optional duplex unit, rear door

9 Printer rear door

NOTE:

Jams in the standard output bin and the duplex unit are either paper or card stock.

Use the following table to locate instructions for a particular jam:
