Dell KVM 1082DS - Manual (Page 73)

Local and Remote Configuration xxx | xxx 63
Grouping Power Outlets
The outlets can be linked or associated with the target server for easier control.
To group outlets (or outlets to servers), the first device to be named must use
the Manual name field. The second and subsequent devices must use the Link
to Target Device menu, and then select the target name for the first device from
the drop down list.
Power actions performed on the Target List page are applied to all applicable
outlets. Power control actions for specific power outlets of a target may be

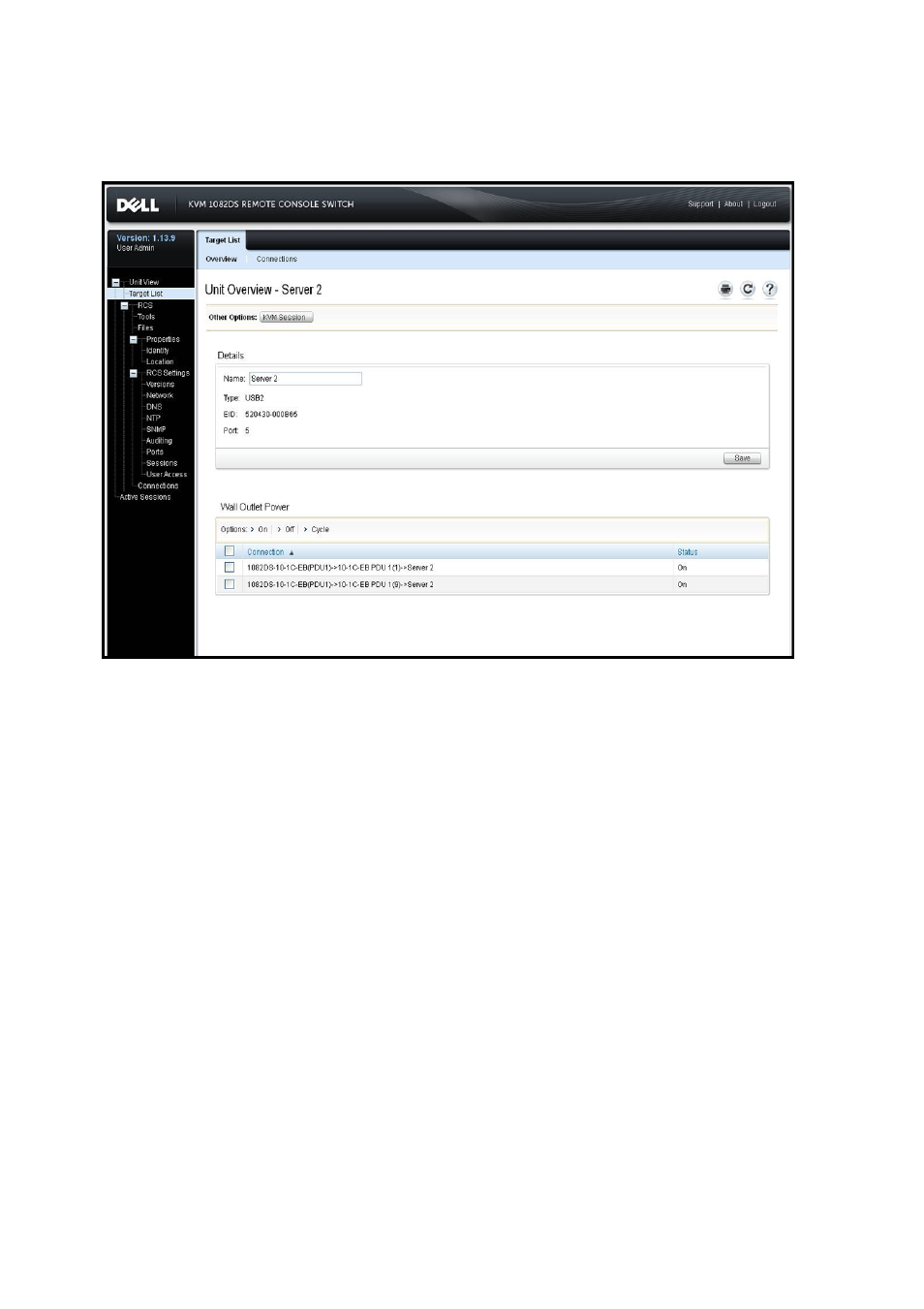

performed on the Unit Overview page. In the following figure, the target named
Group2 is composed of power outlets 4 and 5 from PDU 1.
To group sockets 4 and 5:
1 Select outlet 4 to display the Power Devices Outlet Settings page.
2 Select Manual and enter Group2.
3 Click Save.
