Adding and Replacing Parts
155
NOTICE:
Be careful when removing the card to avoid damaging the card, card
cable, or surrounding components.
3 Carefully remove the card cable from its routing guide.
4 While grasping the card cable with one hand, use a plastic scribe to gently
pry the card out from underneath the metal tab with the other hand
.
5 Lift the card from the compartment, ensuring that you do not pull on the
card cable with excessive force.

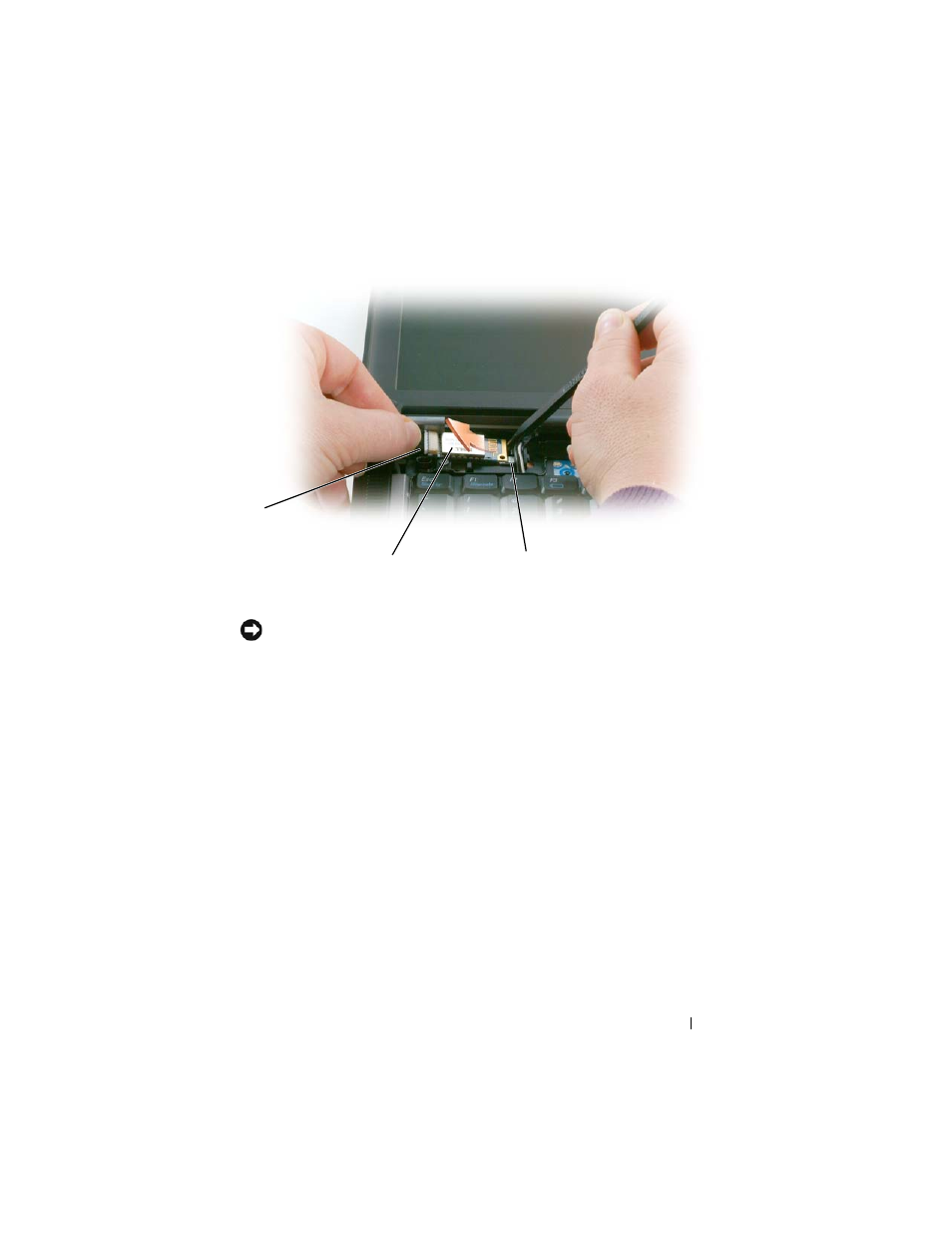

1 card cable
2 card
3 metal tab
3
2
1
