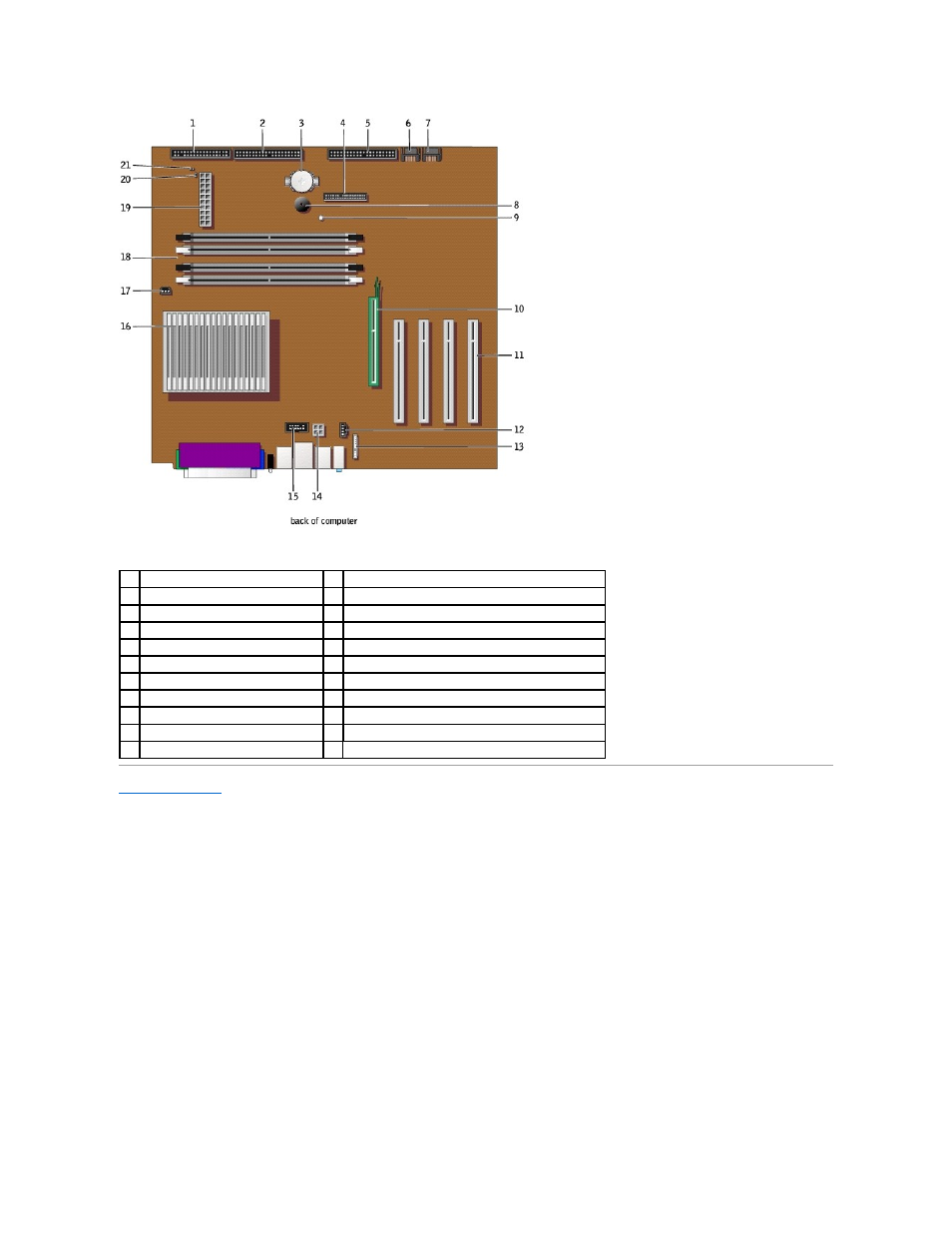

1 floppy-drive connector (DSKT) 12 CD drive audio cable connector (CD_IN)
2 CD/DVD drive connector (IDE2) 13 front-panel audio cable connector (FRONTAUDIO)
3 battery socket (BATTERY) 14 power connector (12VPOWER)
4 front-panel connector (FRONTPANEL) 15 serial port connector (SER2) for optional serial port cards
5 IDE hard-drive connector (IDE1) 16 microprocessor and heat sink connector (CPU)
6 serial ATA hard-drive connector (SATA2) 17 microprocessor fan connector (FAN)
7 serial ATA hard-drive connector (SATA1) 18 memory module connectors (DIMMs 1, 3, 2, and 4)
8 internal speaker (SPEAKER) 19 power connector (POWER)
9 standby power light (AUX_PWR) 20 RTC reset jumper (RTCRST)
10 AGP card connector (AGP) 21 password jumper (PSWD)
11 PCI connectors (PCI 1, 2, 3, and 4)
