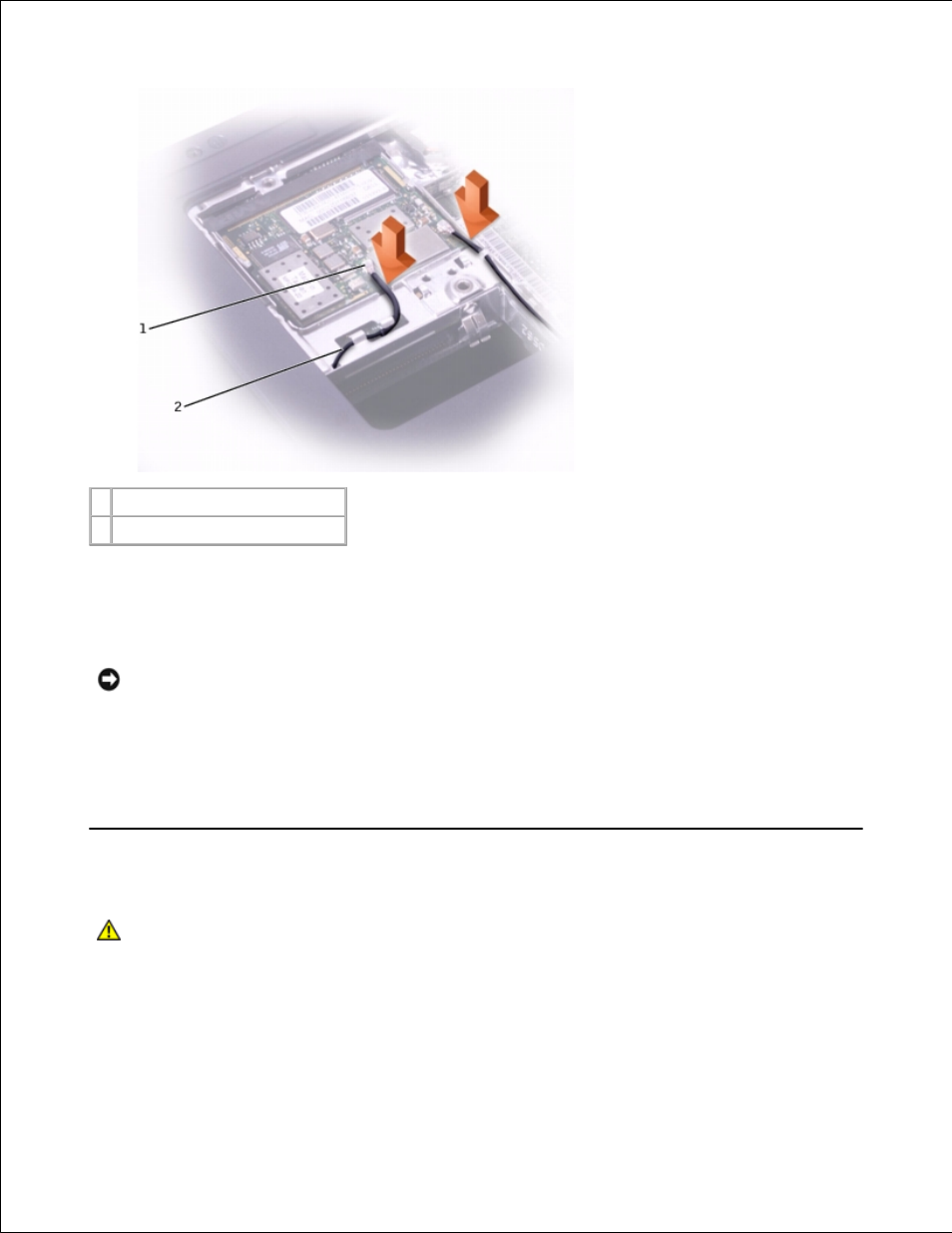

1 antenna connectors on card (2)
2 antenna cables (2)
Align the Mini PCI card with the socket at a 45-degree angle, and press the Mini PCI card into the
socket. 11.
Connect the antenna cable(s) from the Mini PCI card to the antenna connector(s) on the computer. 12.
NOTICE: The connectors are keyed for correct insertion; do not force the connections.
Lower the Mini PCI card toward the inner tabs to approximately a 20-degree angle. 13.
Continue lowering the Mini PCI card until it snaps into the inner tabs of the socket. 14.
Replace the cover. 15.
Adding a Modem
CAUTION: Before working inside your computer, read the safety instructions in your
System Information Guide.
If you ordered the modem at the same time that you ordered your computer, Dell has already installed the
modem for you.
Make sure that the work surface is flat and clean to prevent scratching the computer cover. 1.
2.
3.
