Service-Only Parts Replacement Procedures
Dell™ PowerEdge™ 850 Systems Installation and Troubleshooting Guide
Recommended Tools
You may need the following items to perform the procedures in this section:
l
Key to the system keylock
l
Wrist grounding strap
l
#2 Phillips screwdriver
Control Panel Assembly
Removing the Control Panel Assembly
1.
Open the system. See "
Opening the System
" in "Troubleshooting Your System."
2.
Disconnect the control panel cables. See
3.
Using a #2 Phillips screwdriver, remove the two screws that secure the control panel assembly to the chassis. See
.
4.
Carefully lift the back of the control panel assembly to clear the chassis mounting studs, and remove the assembly from the system.

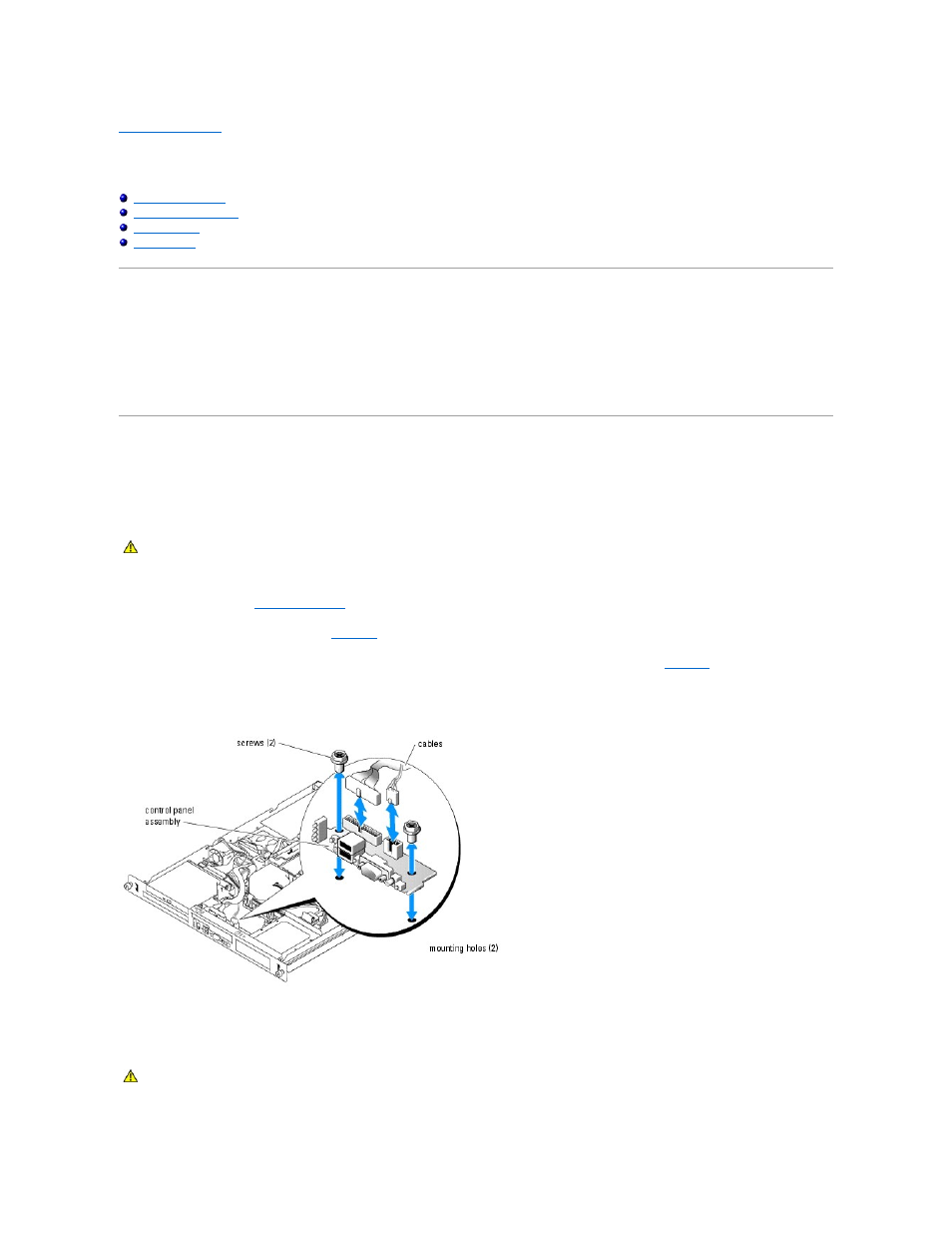

Figure 7-1. Removing the Control Panel Assembly
Installing the Control Panel Assembly
CAUTION:
Only trained service technicians are authorized to remove the system cover and access any of the components inside the system.
Before performing any procedure, see your Product Information Guide for complete information about safety precautions, working inside the
computer and protecting against electrostatic discharge.
CAUTION:
Only trained service technicians are authorized to remove the system cover and access any of the components inside the system.
Before performing any procedure, see your Product Information Guide for complete information about safety precautions, working inside the
computer and protecting against electrostatic discharge.
